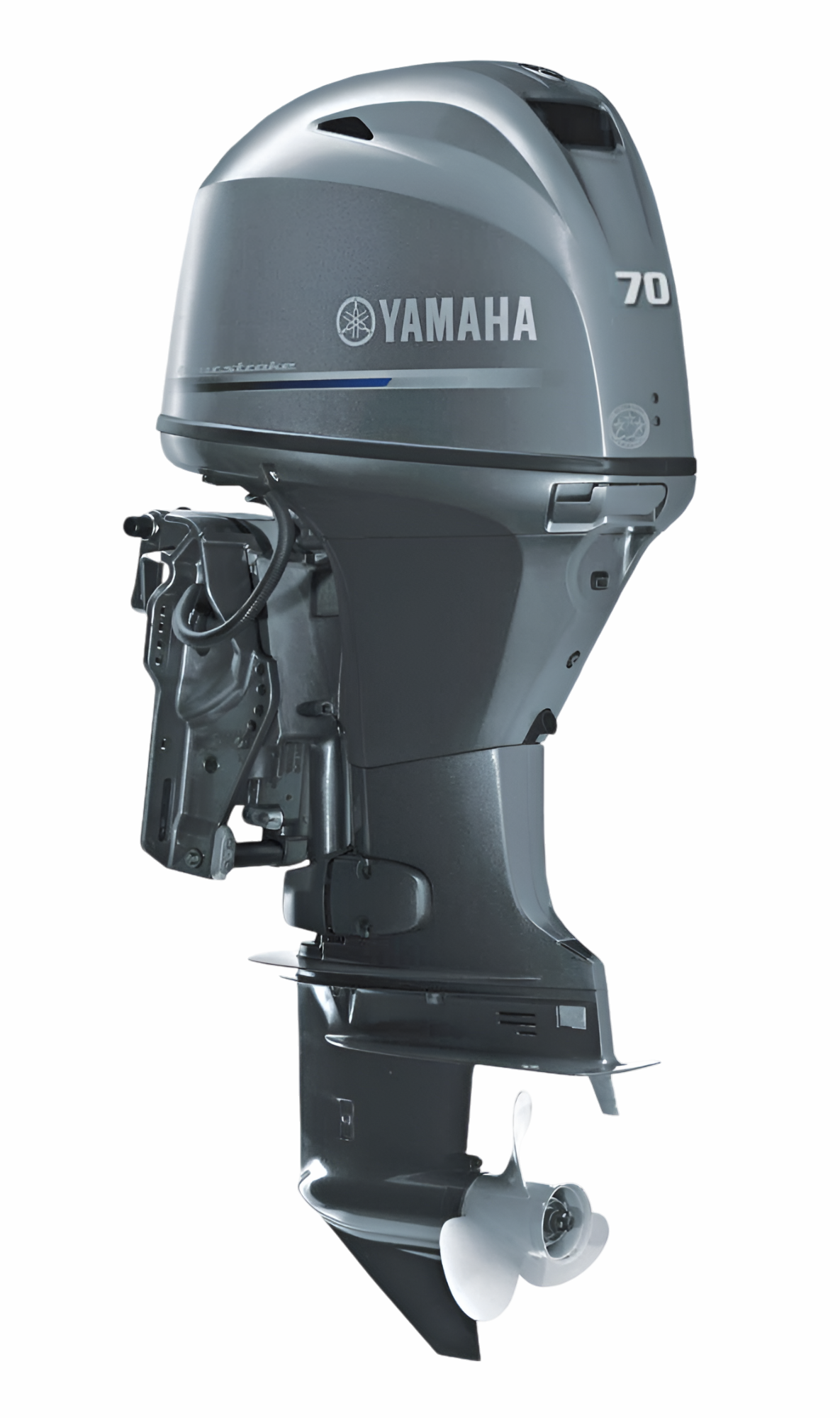

Yamaha 70hp Outboard
Yamaha 70hp Outboard
Offering unbeatable versatility, the Yamaha 70hp will power a wide range of boat types, so it's equally at home when you're working, or if you're out to experience the fresh air and fun of leisure.
For cleaner performance, maximum fuel efficiency and easy starting, the powerful 16-valve SOHC engine features EFI (Electronic Fuel Injection) and Yamaha's unique PrimeStart™ system. Compatibility with Yamaha's Digital Network Gauges delivers precise control too.
Sleek and stylish too, your 70hp is sure to attract admiring glances from everyone whether aboard or on the shore. The refined and fashionable design of your 70hp makes a statement of sophistication, leaving onlookers in awe whether you're in the water or on land.
'Always work or play with a powerful partner.'
YAMAHA F60FETL SPECIFICATIONS
Engine type: 4-stroke
Displacement: 996 cm³
No. of cylinders/configuration: 4 cylinders in-line, SOHC
Bore x stroke: 65.0 mm x 75.0 mm
Prop shaft output at mid range: 44.1 / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Starter system: Electric with Prime Start™
Gear ratio: 1.85 (24:13)
Weight (no propeller): 114 kg
Oil pan capacity: 2.1 litres
Engine immobiliser: YCOP optional
Features
-
Ultra-smooth 4-cylinder refinement - with EFI
Whether strokes or cylinders, Yamaha understands the power of Four! Which is how the world's pioneer in 4-stroke technology has brought added refinement to the 4-cylinder configuration.
-
Digital Network Gauges
The 60hp is compatible with the exclusive Yamaha Digital Network Gauges, giving you all the data needed to maximise engine performance and efficiency.
-
Variable Trolling RPM control
With the press of a button on the optional Digital Network's Tachometer – or via the variable trolling RPM switch on the optional multi-function tiller handle – the driver can adjust the engine speed for relaxed trolling.
-
Wide Range Power Trim & Tilt
Discover the versatility and power of a Yamaha engine. Quick response, via push-button control, makes trim and tilt adjustments swift, smooth and easy.
-
Compact shape and solid one-piece top cowling
With the advanced design and modest overall dimensions of this 4-cylinder unit, our engineers have produced a remarkably compact 996cc powerhouse.
-
Advanced warning systems
Yamaha engines are renowned for their reliability and for how well they hold their value. The comprehensive warning systems on this engine measure many important engine aspects.
-
Yamaha Customer Outboard Protection (Y-COP) option
The Y-COP immobiliser system is simple, easy to use and highly effective – a neat and simple remote control locks and unlocks the engine's ECM at the push of a button.
Parts & Accessories for Yamaha F60
-
Yamaha F60 Replacement Oil Filter
ViewDesigned specifically for your engine, this filter provides superior protection and ensures a smoother ride. Trust in Yamaha for unmatched quality and efficiency.
-
Yamaha Propeller White Spray Paint
ViewGenuine Yamaha fast-drying acryl lacquer for surfaces of wood, metal, aluminium, glass, stone and various types of plastic.
-
Yamaha Outboard Anode
ViewThis Anode is commonly used on a lot of outboards, two stroke and four stroke FT8-F70A engines.
Yamaha F60 on the water
