Yamaha 30hp Outboard
Yamaha 30hp Outboard

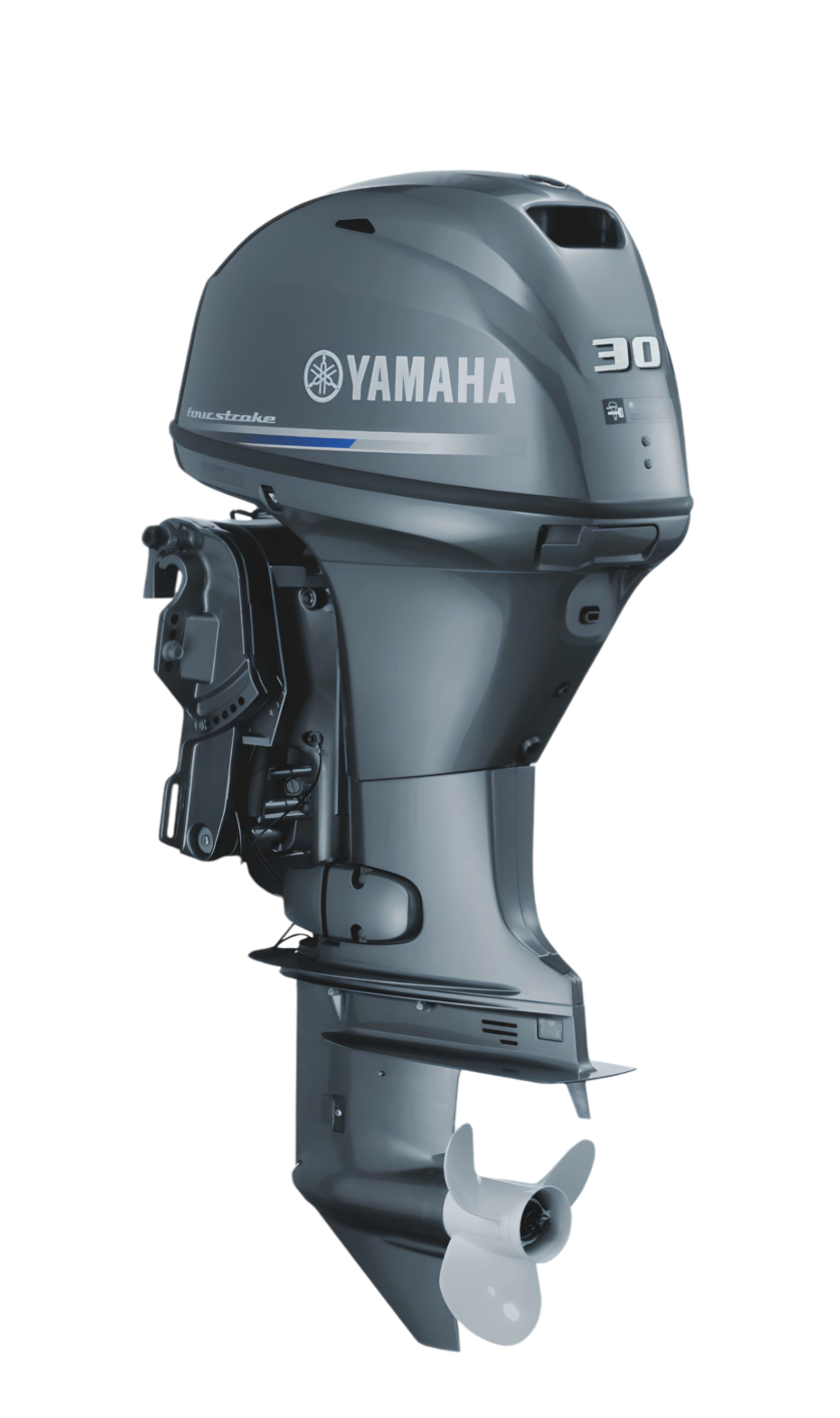

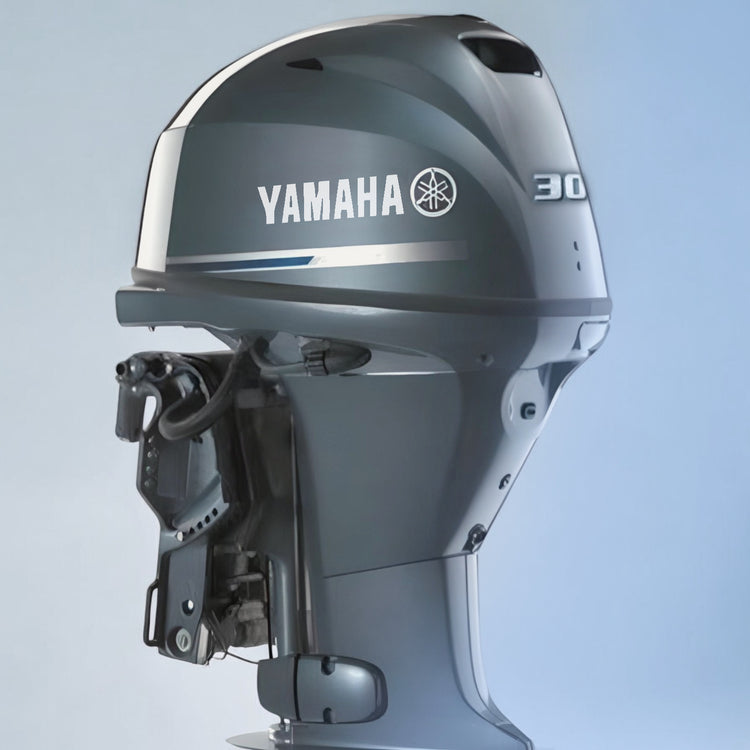

The Yamaha 30hp four-stroke outboard. Its lightweight design allows for simple installation and easy handling on the water.
Short shaft or tiller version motors, will be regarded as a custom unit and will require conversion parts to be fitted by us. This is the reason for the higher estimate prices.
Experience smooth sailing with the powerful Yamaha 30hp Outboard. As an authorized dealership in North Wales, we offer exclusive access to this premium brand. Take your boating adventures to the next level with our sophisticated and reliable outboard motor.
Yamaha's Electronic Fuel Injection system (EFI) delivers impressive power at high speeds, plus real mid-range punch and torque – along with outstanding levels of reliability and economy.
Prime-Start makes starting up as effortless as it is in your car – and since this is a Yamaha, that means first time, every time. Our unique Wide Range Power Trim & Tilt system then lets you take full control.
For peace of mind, Yamaha's renowned Customer Outboard Protection (Y-COP) system protects your engine with a car-style remote-control immobiliser
YAMAHA F30BETL SPECIFICATIONS
Engine type: 4-stroke
Displacement: 747 cm³
No. of cylinders/configuration: 3 cylinders in-line, SOHC
Bore x stroke: 65.0 mm x 75.0 mm
Prop shaft output at mid range: 22.1 / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: CDI
Starter system: Electric with Prime Start™
Gear ratio: 2.00 (26:13)
Weight (no propeller): 94 kg - 103 kg
Oil pan capacity: 1.7 litres
Engine immobiliser: YCOP optional
Features
-
Digital Network Gauges
The 30hp is compatible with the exclusive Yamaha Digital Network Gauges, giving you all the data needed to maximise engine performance and efficiency.
-
Yamaha Customer Outboard Protection (Y-COP) option
The Y-COP immobiliser system is simple, easy to use and highly effective – a neat and simple remote control locks and unlocks the engine's ECM at the push of a button.
-
Wide Range Power Trim & Tilt
Discover the versatility and power of a Yamaha engine. Quick response, via push-button control, makes trim and tilt adjustments swift, smooth and easy.
-
Single-action steering friction (on tiller model)
This feature makes it much easier to cruise along in a relaxed way, without having to constantly adjust the steering to stay in a straight line.
-
Yamaha's Ideal Anti-corrosion Protection
You need an engine you can rely on and Yamaha outboards are renowned for their durability – which also means they hold their value.
-
Multi-Point EFI system
The 30hp uses a range of innovative and advanced technologies to optimise the combustion process, including Yamaha's proven Multi-Point EFI system.
-
Compact Shape Durable Cowling
This is a very rewarding engine to drive and own. The compact, low profile top cowling, with its powerful-looking shape, is as robust as it looks and helps reduce noise too.
Parts & Accessories for Yamaha F30
-
Yamaha F30B Replacement Oil Filter
ViewDesigned specifically for your engine, this filter provides superior protection and ensures a smoother ride. Trust in Yamaha for unmatched quality and efficiency.
-
Yamaha Propeller White Spray Paint
ViewGenuine Yamaha fast-drying acryl lacquer for surfaces of wood, metal, aluminium, glass, stone and various types of plastic.
-
Yamaha Outboard Anode
ViewThis Anode is commonly used on a lot of outboards, two stroke and four stroke FT8-F70A engines.

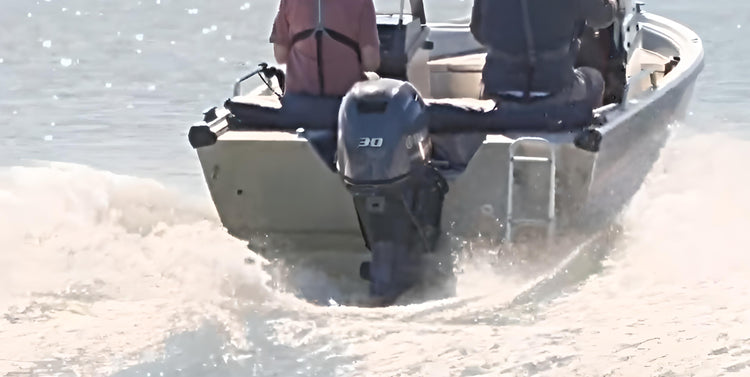

Yamaha F30B on the water
