Yamaha 20hp Outboard
Yamaha 20hp Outboard

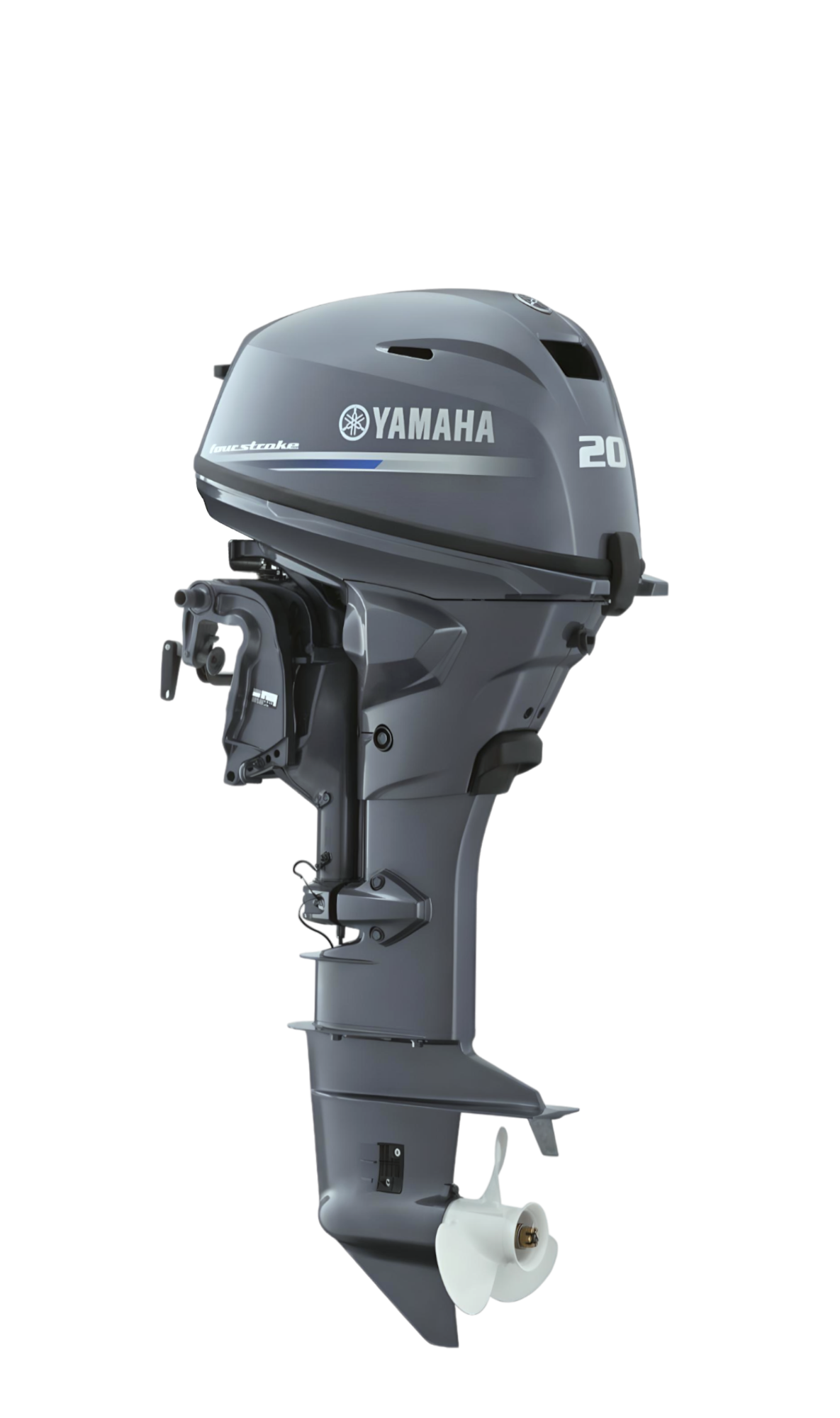

Effortless functionality, unparalleled power, the Yamaha F20.
This multifaceted, dual-cylinder four-stroke engine offers a harmonious blend of strength and agility with an extraordinarily smooth journey. Not only does it provide exceptional efficiency, but it also minimizes exhaust emissions for a more eco-friendly experience.
Indulge in the numerous added features that set Yamaha outboard apart from the rest. Take advantage of the computerized ignition, unique light-load starting system, efficient water-cooled fuel pump, and oversized silencer, usually reserved for larger engines. Whether for business, expertise, or relaxation, it's a combination that can't be beat.
This motor only weighs 56kg-63kg (depending on the configuration)
YAMAHA F20 SPECIFICATIONS
Engine type: 4-stroke
Displacement: 432 cm³
No. of cylinders/configuration: 2/In-line, SOHC
Bore x stroke: 65.0 mm x 65.1 mm
Prop shaft output at mid range: 14.7 / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: CDI
Starter system: Electric/ Manual, Manual (MH), Electric (E, EP)
Gear ratio: 2.08 (27:13)
Weight (no propeller): 56kg - 63kg
Oil pan capacity: 1.1 litres
Features
-
Steering friction
You'll find the 20hp very easy to control and comfortable to drive, thanks to its many features - from the front-mounted shift lever and single-lever steering friction adjuster to the light-load recoil starter.
-
PrimeStart™
Start your outboard engine as easily as starting a car – even from cold. Exclusive to Yamaha, the PrimeStart™ system ensure that the engine fires first time.
-
High-output alternator
Never get left short. A High-output alternator ensures that power is always available to start the engine even after prolonged periods of idling or when you've been running at low revs.
-
Shallow Water Drive system
Thanks to Yamaha's Shallow Water Drive system offering ample protection for your propeller, it allows you to get as close as you need to be, no matter whether you're cruising a murky lake or the crystal clear shallows of the sea.
-
F-N (Forward-Neutral-Reverse) gears for easy control
Manual gear selection allows the engine to be warmed up in Neutral. The propeller will not turn until Forward is selected for safer idling. Ensures smoother acceleration and better control especially when turning.
-
High-output alternator - keeps the power coming
The 20hp will be put to a wide variety of tasks, from fishing at night to coastal cruising, so its high-output alternator is a comforting feature, ensuring that power should always be available to start the engine.
-
Shallow Water Drive system
Offering ample protection for your propeller, it allows you to get as close as you need to be, no matter whether you're cruising a murky lake or the crystal clear shallows of the sea.
-
Fresh Water Flushing system
An easy-access connector on the lower cowling allows you to easily flush salt and dirt from the waterways without having to run the engine.
Parts & Accessories for Yamaha F20
-
Yamaha Replacement Oil Filter
ViewDesigned specifically for your engine, this filter provides superior protection and ensures a smoother ride. Trust in Yamaha for unmatched quality and efficiency.
-
Yamaha Propeller White Spray Paint
ViewGenuine Yamaha fast-drying acryl lacquer for surfaces of wood, metal, aluminium, glass, stone and various types of plastic.
-
Yamaha Outboard Anode
ViewThis anode is commonly used on a lot of outboards, two stroke and four stroke. Including this 20hp.
