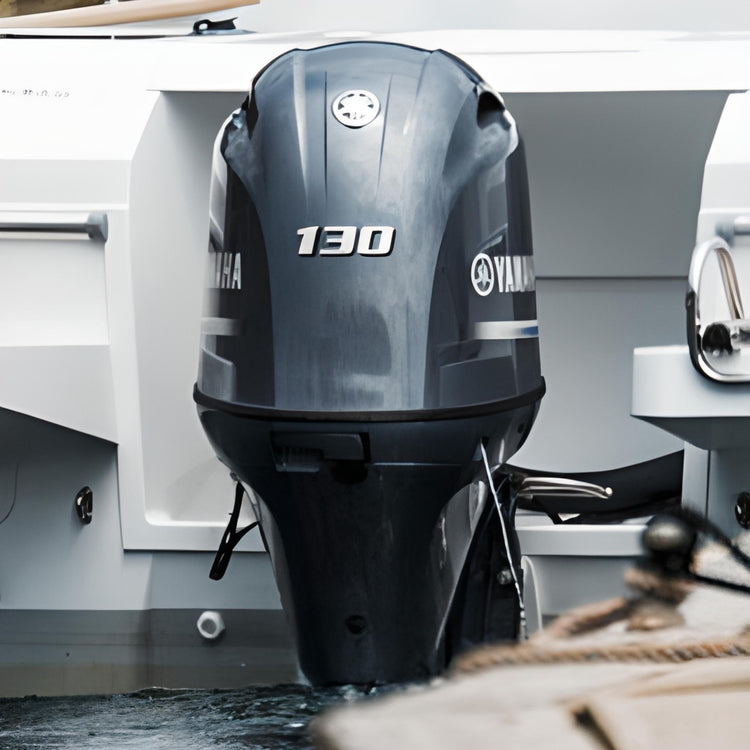

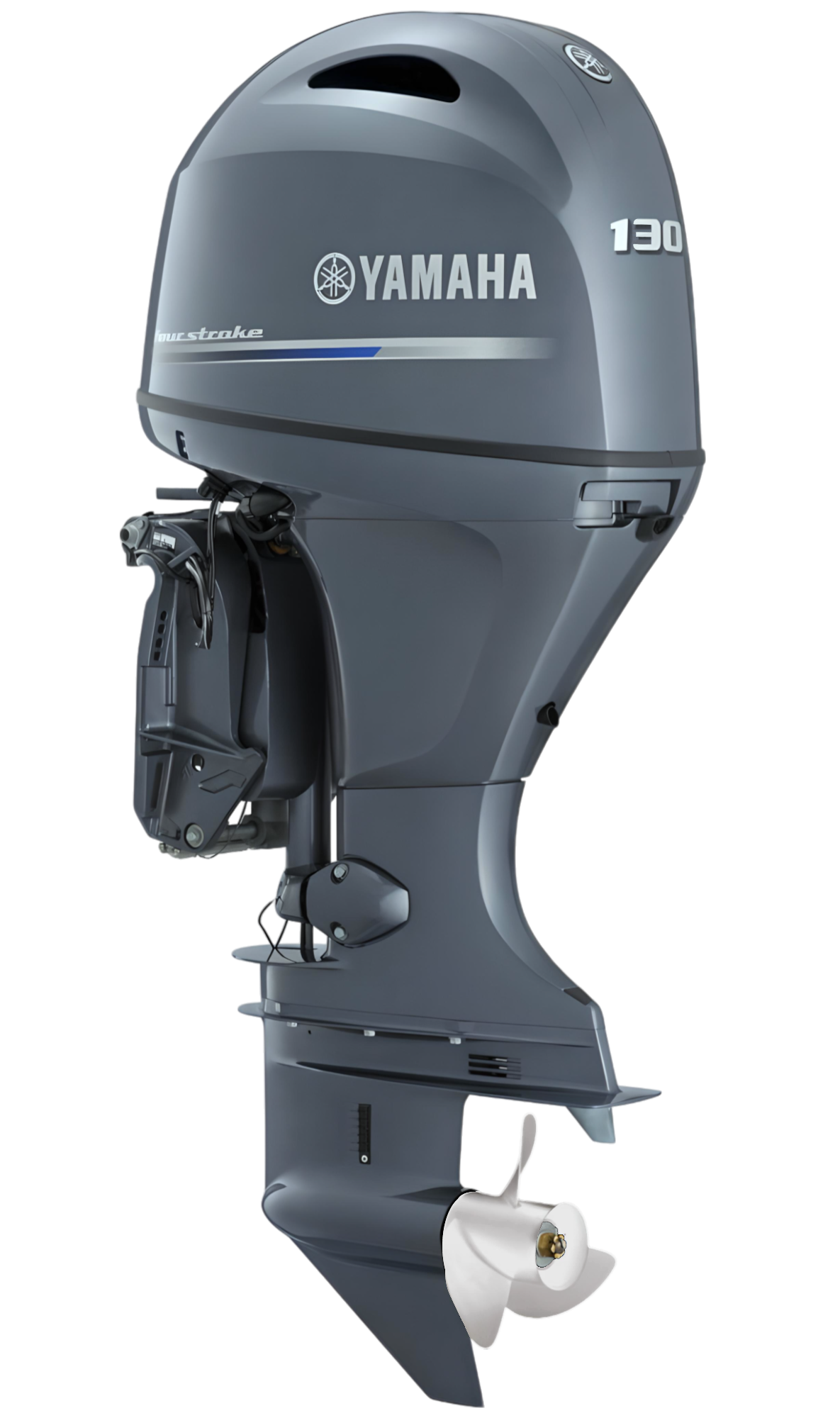

Yamaha 130hp Outboard
Yamaha 130hp Outboard
Experience the ultimate luxury on the water with the revolutionary and featherlight 130hp design, allowing you to fully immerse.
Yourself in the beauty of your boat while being powered by one of the most pristine and seamless engines in existence.
Not only is the engineering impressive - this is a 1.8 litre, 16 big-valve, in-line 4-cyl DOHC 4-stroke - but it's blended with a host of electro/technical features to make life easier: Compatibility with our optional Digital Network System, Wide Range Power Trim & Tilt with Tilt angle limiter and Y-COP® remote security system (both optional) to name but a few.
The efficiency of our well proven EFI systems and other new combustion technologies ensure the utter dependability of this outstanding Yamaha engine.
YAMAHA F130 SPECIFICATIONS
Engine type: 4-stroke
Displacement: 1832 cm³
No. of cylinders/configuration: 4 cylinders in-line, SOHC, 16-valve
Bore x stroke: 81.0 mm x 88.9 mm
Prop shaft output at mid range: 95.6 / 6,300 rpm
Full throttle operating range: 5,300 - 6,300 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Starter system: Electric with Prime Start™
Gear ratio: 2.15 (28:13)
Weight (no propeller): 174 - 178kg
Oil pan capacity: 3.2 litres
Features
-
1,832cc 16-Big-Valve DOHC in-line 4-cylinder 4-stroke
With its innovative intake and exhaust valve design and twin camshafts, each driven independently the 130hp's intake and exhaust efficiency are dramatically improved, optimising fuel use during combustion.
-
Compact, lightweight design ideal for re-powering
The versatile 130hp is the leading power-to-weight performer in its class, making it the ideal choice for a wide range of activities and opening up exciting opportunities for re-powering.
-
Yamaha Customer Outboard Protection (Y-COP) option
The Y-COP immobiliser system is simple, easy to use and highly effective – a neat and simple remote control locks and unlocks the engine's ECM at the push of a button.
-
35 Amp High Output alternator
A special High Output alternator system is fitted as standard on the 130hp, to ensure that plenty of power is available for engine starts even after long periods at low RPM or when using multiple accessories.
-
All our EFI engines can be linked, via Yamaha's own network system.
A very relaxing and reliable system, which is standard on the 130hp. Simply set and hold the low speed rpm (between 600 & 1000) in 50 rpm steps, using a button on the tachometer.
-
Digital Network Gauges (optional)
All our EFI engines can be linked, via Yamaha's own network system, to a wide range of digital instruments - to help you get the best from your engine.
