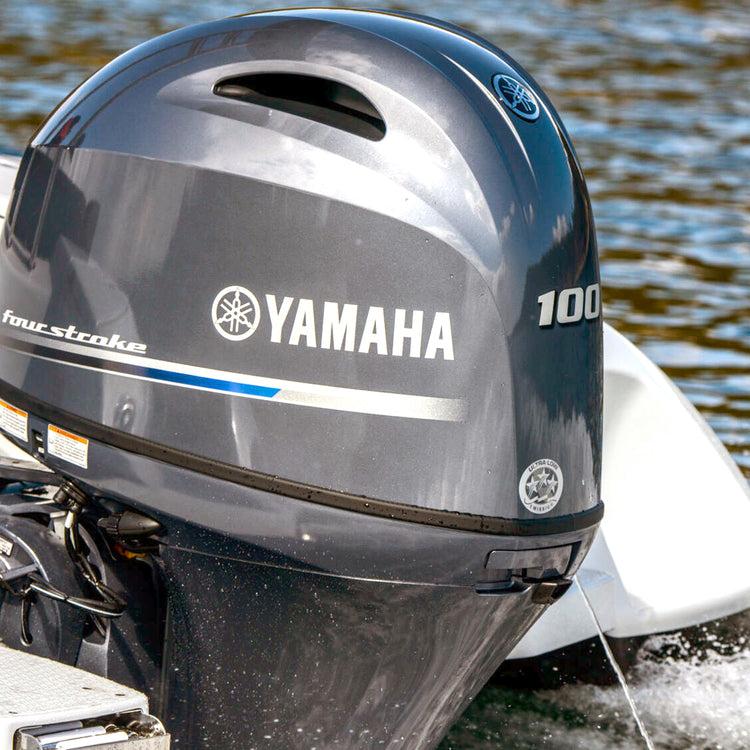

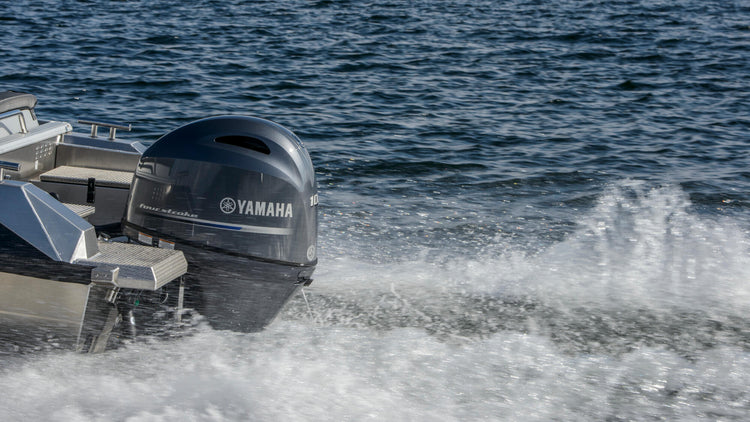

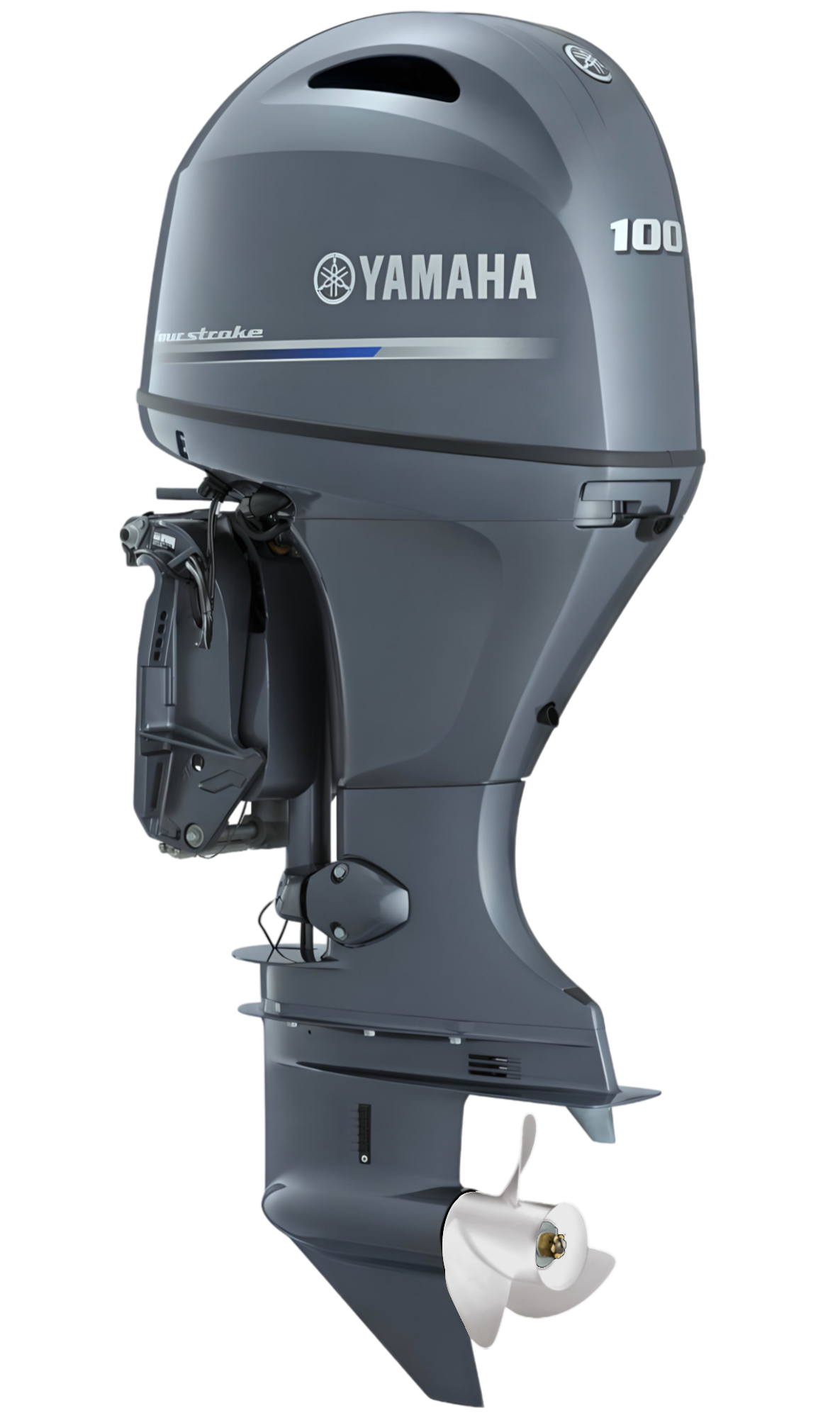

Yamaha 100hp Outboard
Yamaha 100hp Outboard
Genuine all-round performance, smooth acceleration and economy, it would be hard to beat. Yamaha's innovative engineering makes it ultra-reliable too.
Experience the effortless performance of the Yamaha 100hp Outboard, where a perfect balance of weight and power creates an exhilarating acceleration.
Experience unparalleled performance with our cutting-edge 4-stroke technology. Featuring a 16-valve engine with SOHC for dynamic acceleration, state-of-the-art intake and exhaust systems, and Yamaha's exclusive multi-point EFI for optimal fuel injection.
Experience a range of luxurious features such as PrimeStart™, a powerful alternator, and Yamaha's Wide-Range Power Trim & Tilt system, giving you ultimate control on the open water.
YAMAHA F100 SPECIFICATIONS
Engine type: 4-stroke
Displacement: 1832 cm³
No. of cylinders/configuration: 4 cylinders in-line, SOHC, 16-valve
Bore x stroke: 81.0 mm x 88.9 mm
Prop shaft output at mid range: 73.5 / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Starter system: Electric with Prime Start™
Gear ratio: 2.15 (28:13)
Weight (no propeller): 162 - 166kg
Oil pan capacity: 3.2 litres
Engine immobiliser: YCOP optional
Features
-
16-valve SOHC engine layout
The SOHC (Single Overhead Camshaft) layout, with its large cylinder capacity and 16-valve format, results in optimum valve actuation, delivering improved acceleration and performance.
-
Large single throttle valve
This innovative system controls the flow of air to all four cylinders, pulse-tuning it before it reaches the injectors of the EFI system. The air is therefore delivered with ultimate precision.
-
Digital Network Gauges
The 100hp is compatible with the exclusive Yamaha Digital Network Gauges, giving you all the data needed to maximise engine performance and efficiency.
-
Easy control of engine RPM for trolling (with option)
Another feature of the Digital Network System option is the handy button on the tachometer which gives you instant control of the engine RPM.
-
Wide Range Power Trim & Tilt
Discover the versatility and power of a Yamaha engine. Quick response, via push-button control, makes trim and tilt adjustments swift, smooth and easy.
-
Yamaha Customer Outboard Protection (Y-COP) option
The Y-COP immobiliser system is simple, easy to use and highly effective – a neat and simple remote control locks and unlocks the engine's ECM at the push of a button.
-
Micro-computer ECM (Engine Control Module)
A reliable micro-computer is the 'brain' of your engine. By constantly monitoring all data inputs and settings, it helps to ensure smooth running and optimised ignition timings.
