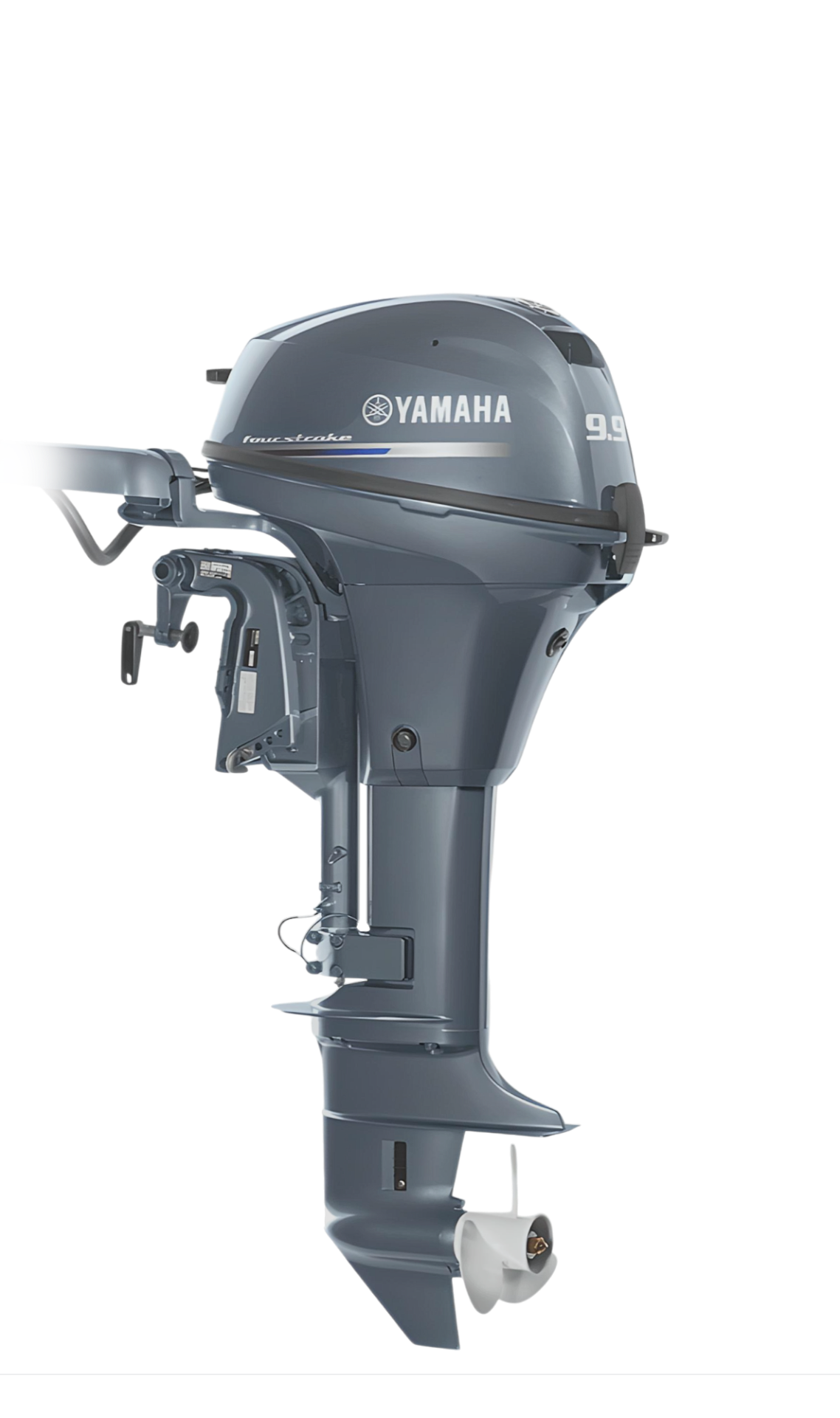

Yamaha 9.9hp Outboard
Yamaha 9.9hp Outboard
Our lightweight, heavyweight with proper portable power!
Discover the joys of whisper-quiet operation and superb fuel economy, blended with our smooth, reliable 4-stroke power. Yamaha's CDI Ignition System means reliable, first-time start-up, so combined with the twist-grip throttle and F-N-R gear system, easy, safe handling is the result.
This lightweight engine has many talents that make it ideal for tender duties, fishing or family fun. And of course, if you use your boat as a reliable work partner, then the 8hp is the perfect match.
Features
- Shallow Water Drive for cruising close inshore
- Fresh Water Flushing system
- Compact and efficient engine design
- Lighting coil fitted as standard
- Over-rev limiter
- Start-in-gear' protection system
- Audible warning of low oil pressure
- Ergonomic shift lever on the tiller handle
- Easy-fold tiller design for storage & portability
- Extra resting pad for convenient vertical storage
- Remarkable power and impressive torque
- Large comfortable-to-use carry handle
YAMAHA F9.9 SPECIFICATIONS
Engine type: 4-stroke
Displacement: 212 cm³
No. of cylinders/configuration: 2/In-line, SOHC
Bore x stroke: 56.0 mm x 43.0 mm
Prop shaft output at mid range: 7.3 / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: 1-Carb
Ignition / advance system: CDI
Starter system: Manual (MH), Electric (E)
Gear ratio: 2.08 (27:13)
Weight (no propeller): 40kg - 43kg
Oil pan capacity: 0.8 litres
Features
-
Advanced tiller handle design and controls
For the 9.9hp a fully ergonomic design approach has been adopted for the tiller handle and controls. The handle is a very convenient length and the shift lever is ideally positioned on the handle itself, within easy reach, for confident, relaxed control. The easy-fold-up handle arrangement makes carrying and storage very convinient.
-
True portability - and so easy to carry
The 9.9hp is renowned for performance with true portability and features many design refinements which make it a pleasure to use. The large, comfortable carry-handle is now integrated with the steering bracket - and the tiller handle folds neatly back to make it even more compact on the boat - and it's a great help for storage too.
-
Rest pad for vertical storage position
This exciting engine features some other very practical refinements that make storage a breeze. The special rest-pad allows you to store the 9.9hp vertically or simply lie it on its back on the deck or floor. With the new fold back tiller handle, you can be sure that your outboard will be taking up less space on board or at home.
-
Fresh Water Flushing System
An easy access, front mounted connector allows you to easily flush salt and dirt from the waterways without having to run the engine: just connect a hose and you're ready to go. This is a very efficient way to reduce corrosion and extend the life of your outboard.
-
Shallow Water Drive System
Cruise towards the shore with confidence thanks to Yamaha's Shallow Water Drive system. Offering ample protection for your propeller, it allows you to get as close as you need to be, no matter whether you're cruising a murky lake or the crystal clear shallows of the sea.
-
Yamaha's Ideal Anti-corrosion Protection
You need an engine you can rely on and Yamaha outboards are renowned for their durability, which means they hold their value. While a unique YDC-30 aluminium alloy protects the engine's exterior parts, a zinc coating, high quality stainless steel, and 5 -stage exterior coating offer long-lasting protection inside and out.
-

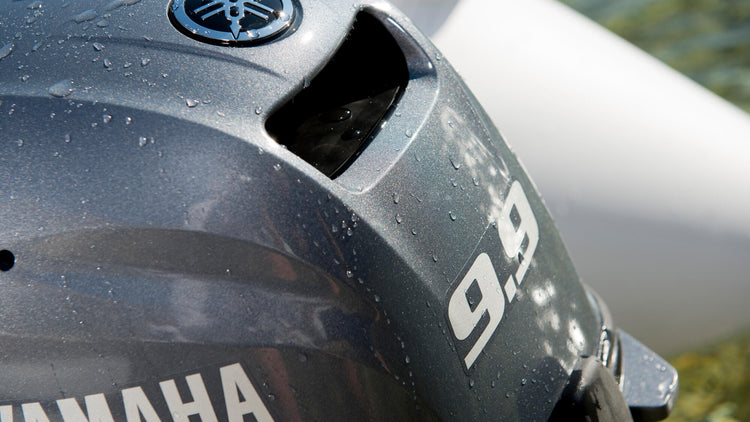

Latest Generation Engine Design
The 9.9hp is a very compact and super efficient engine design, with twin cylinder, SOHC (Single Overhead Camshaft) configuration. The stylish top cowling and graphics also reflect the modern design approach to be found on all our latest generation engines.
