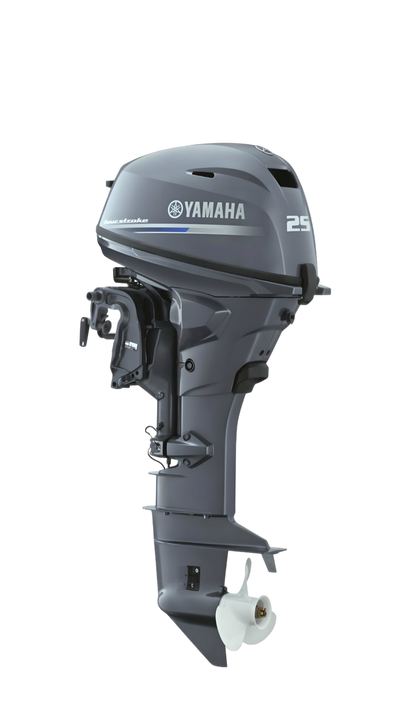

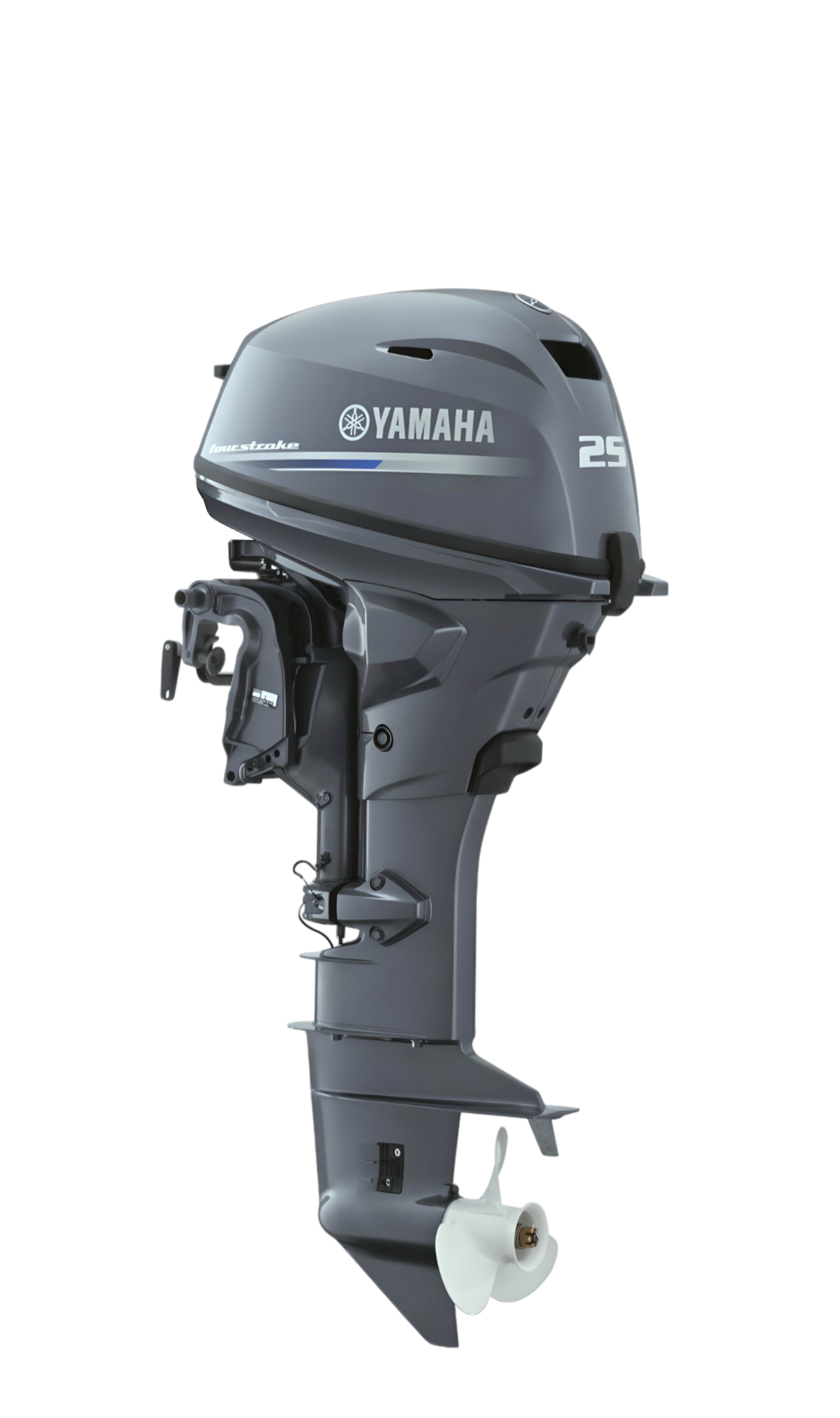

Yamaha 25hp Outboard
Yamaha 25hp Outboard
Power and efficiency in a compact size, delivering top-notch performance.
MAKE AN ENQUIRY
The specification now includes two resting pads (side and rear), improved carry handles, battery-less EFI and full compatibility with our Digital Network Gauges.
With its single-lever steering friction adjustment, new wide-span motor mount, high-output alternator and options of Variable Trolling Speed, Y-COP Security and Wide Range Power Trim & Tilt, the 25hp is the natural choice.
Discover true power and impeccable responsiveness with this versatile, twin-cylinder 4-stroke outboard from Yamaha. Enjoy an unparalleled, super-smooth ride that will elevate your boating experience.
Outstanding fuel economy also means that you're being kinder to the environment, with exhaust emissions cut to a minimum.
Enjoy too, the many extras that only a Yamaha outboard delivers. Benefits like computer-controlled ignition, a special light-load starting system, a water-cooled fuel pump, and a large-volume silencer all normally only found on larger engines.
For commercial, professional or leisure use, it adds up to a winning formula.
This motor only weighs 56kg-63kg (depending on the configuration)
YAMAHA F20 SPECIFICATIONS
Engine type: 4-stroke
Displacement: 432 cm³
No. of cylinders/configuration: 2/In-line, SOHC
Bore x stroke: 65.0 mm x 65.1 mm
Prop shaft output at mid range: 14.7 / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: CDI
Starter system: Electric/ Manual, Manual (MH), Electric (E, EP)
Gear ratio: 2.08 (27:13)
Weight (no propeller): 56kg - 63kg
Oil pan capacity: 1.1 litres
Features
-
Steering friction
You'll find the 20hp very easy to control and comfortable to drive, thanks to its many features - from the front-mounted shift lever and single-lever steering friction adjuster to the light-load recoil starter.
-
PrimeStart™
Start your outboard engine as easily as starting a car – even from cold. Exclusive to Yamaha, the PrimeStart™ system ensure that the engine fires first time.
-
High-output alternator
Never get left short. A High-output alternator ensures that power is always available to start the engine even after prolonged periods of idling or when you've been running at low revs.
-
Shallow Water Drive system
Thanks to Yamaha's Shallow Water Drive system offering ample protection for your propeller, it allows you to get as close as you need to be, no matter whether you're cruising a murky lake or the crystal clear shallows of the sea.
-
F-N (Forward-Neutral-Reverse) gears for easy control
Manual gear selection allows the engine to be warmed up in Neutral. The propeller will not turn until Forward is selected for safer idling. Ensures smoother acceleration and better control especially when turning.
-
High-output alternator - keeps the power coming
The 20hp will be put to a wide variety of tasks, from fishing at night to coastal cruising, so its high-output alternator is a comforting feature, ensuring that power should always be available to start the engine.
-
Shallow Water Drive system
Offering ample protection for your propeller, it allows you to get as close as you need to be, no matter whether you're cruising a murky lake or the crystal clear shallows of the sea.
-
Fresh Water Flushing system
An easy-access connector on the lower cowling allows you to easily flush salt and dirt from the waterways without having to run the engine.
