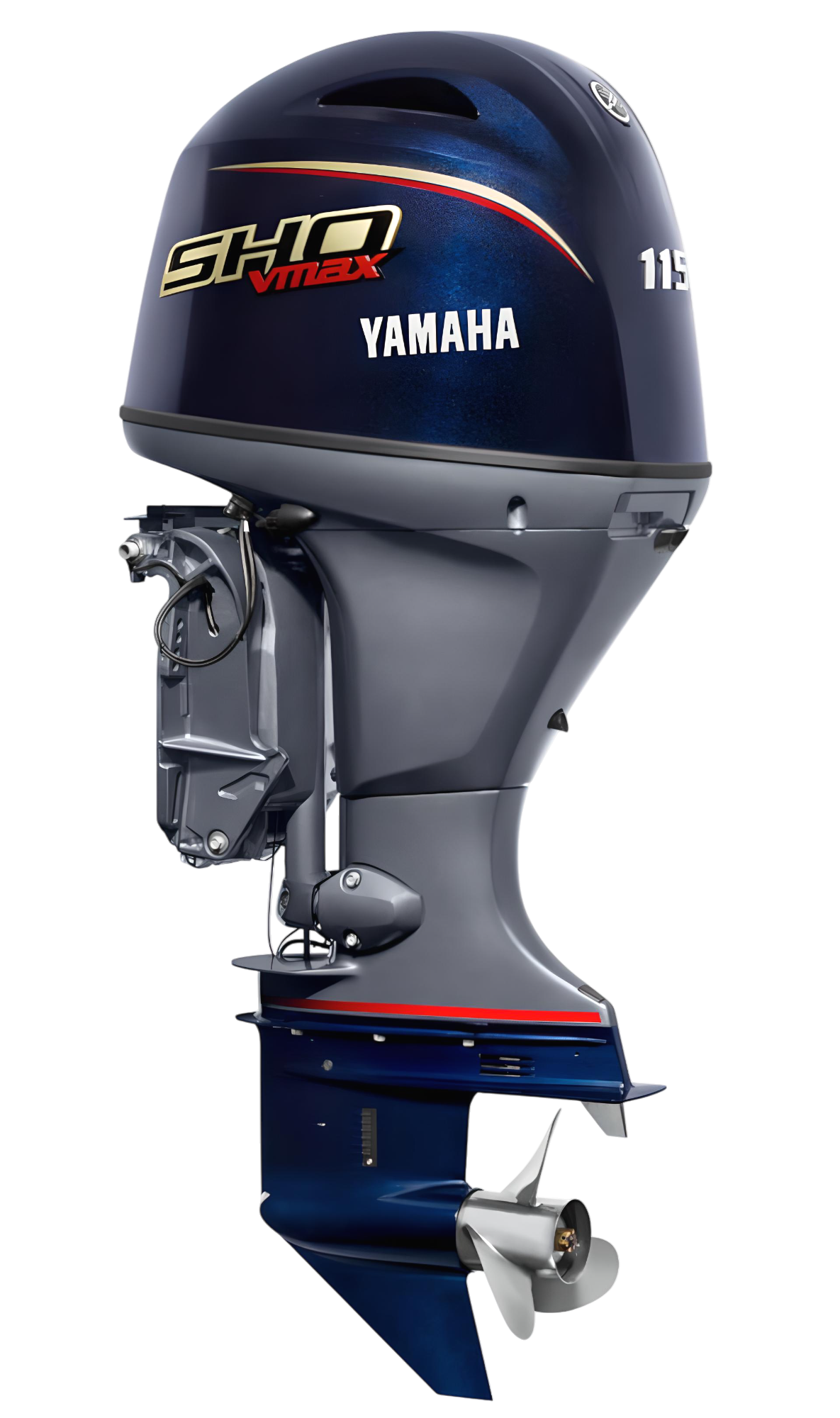

Yamaha 115hp V-Max SHO Outboard
Yamaha 115hp V-Max SHO Outboard
Technology limits are stretched still further in this compact and light, yet extremely powerful engine, which delivers superb out-of-the-hole performance, acceleration and top speed – it will not go unnoticed when you open the throttle!
MAKE AN ENQUIRY
Extending the boundaries.
Famous for their incredible torque, our V MAX engines also show a quiet side: we have harmonised all the inertial mass components and added large rubber engine mounts for a whole new level of smooth!
The use of lightweight, mounting brackets, power trim and tilt mechanism and composite body parts – with a state-of-the-art compact engine layout, means the new V MAX SHO 115hp transforms the feel, handling and performance of any boat.
YAMAHA F115 VMAX SPECIFICATIONS
Engine type: 4-stroke
Displacement: 1832 cm³
No. of cylinders/configuration: 4 cylinders in-line, SOHC, 16-valve
Bore x stroke: 81.0 mm x 88.9 mm
Prop shaft output at mid range: 66.2 / 5,500 rpm
Full throttle operating range: 5,000 - 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Starter system: Electric with Prime Start™
Gear ratio: 2.33 (28:12)
Weight (no propeller): 162kg - 166kg
Oil pan capacity: 3.2 litres
Features
-

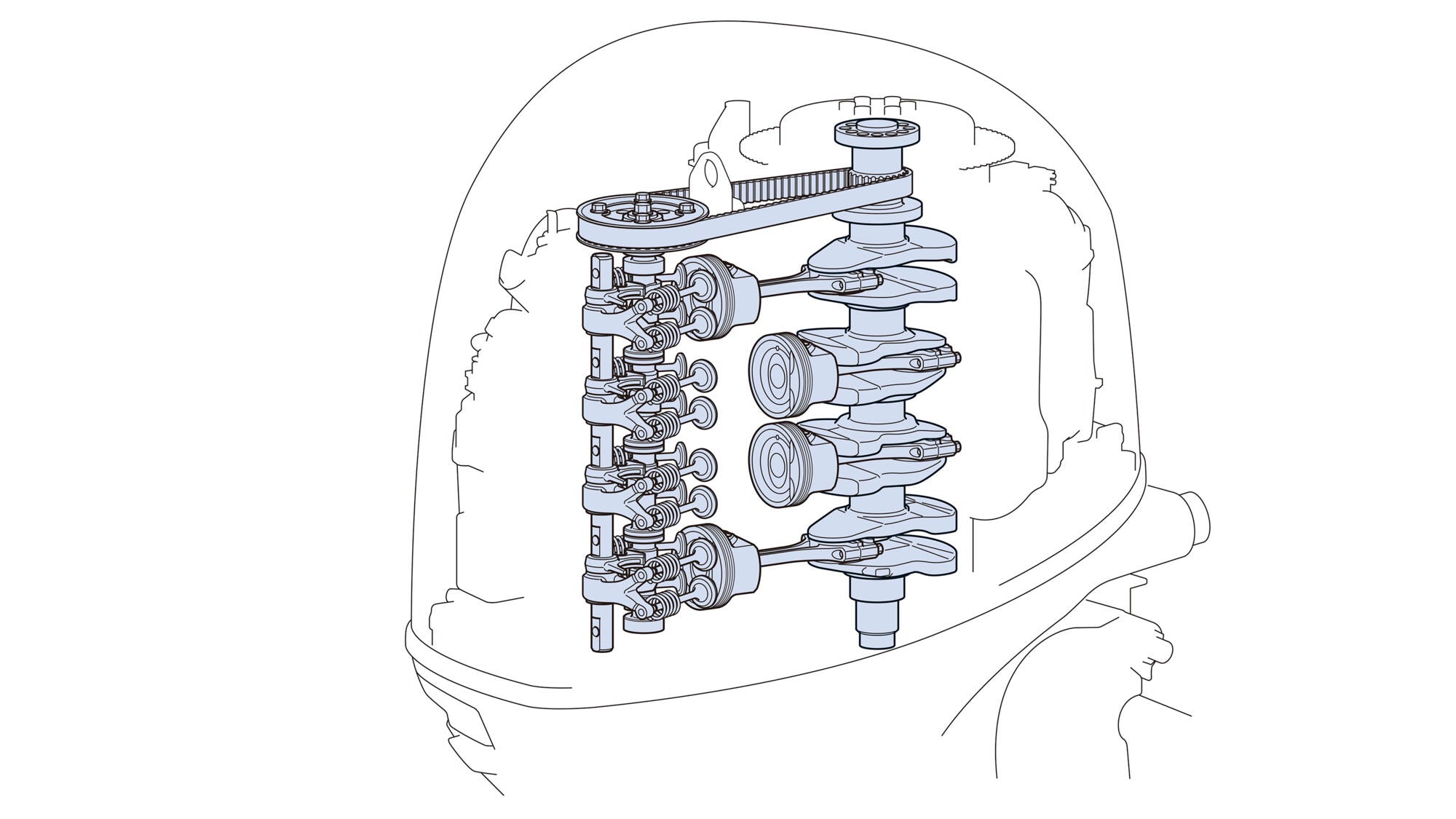

SOHC design with four valves per cylinder
To keep weight down and efficiency up, the V MAX SHO 90hp features an unusual internal design, a single overhead camshaft with four valves per cylinder.
-

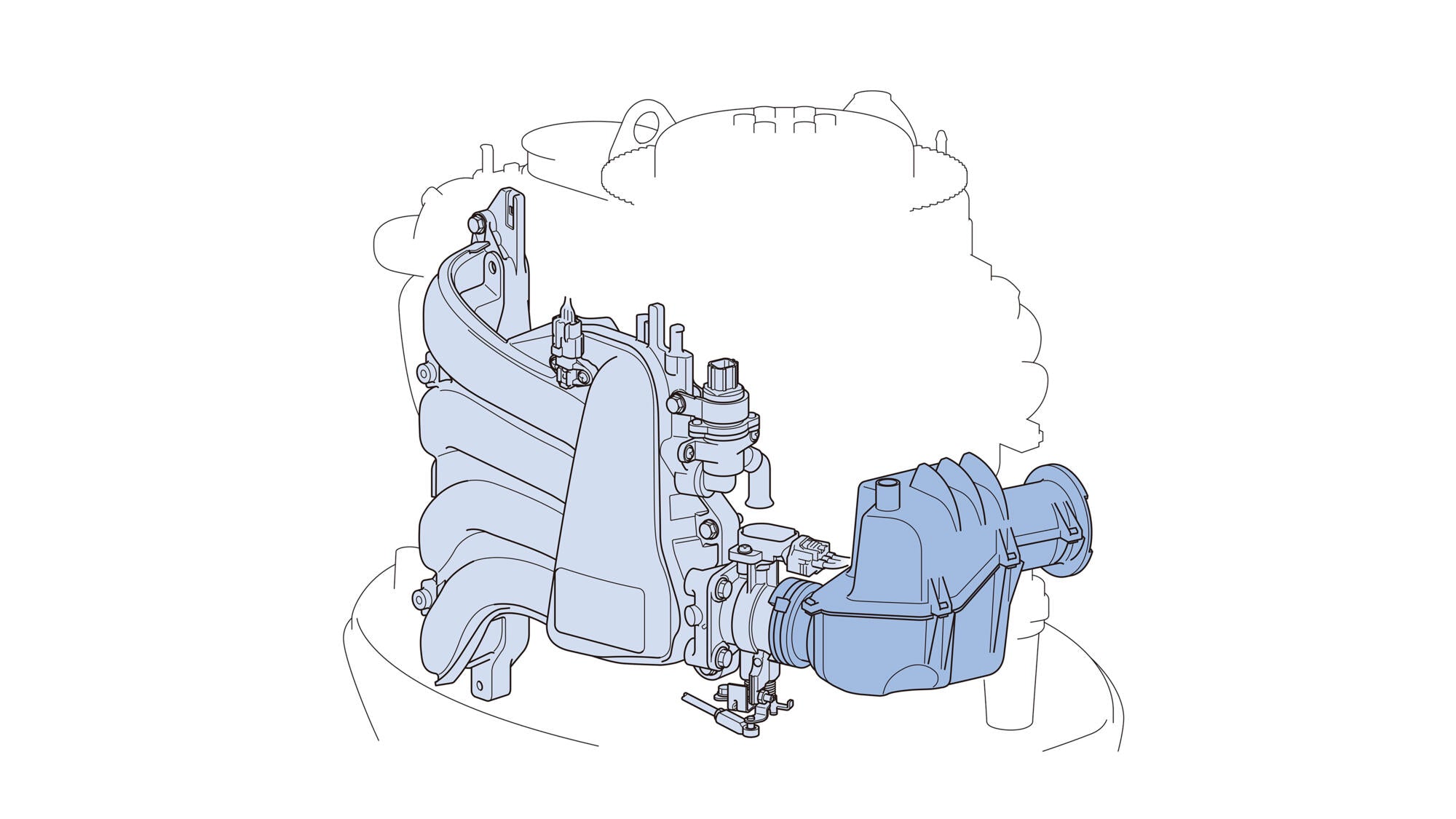

Tuned long-track induction system
The long-track intake manifold is another special feature of the V MAX SHO, specially designed to boost out-of-the-hole performance as well as torque, acceleration and top speed.
-
High-power 35 Amp alternator
We want to make sure that you never lack power for starting, battery charging or running accessories when you’re out on the water, which is why we equip the V MAX SHO 90hp with a three-phase alternator.
-

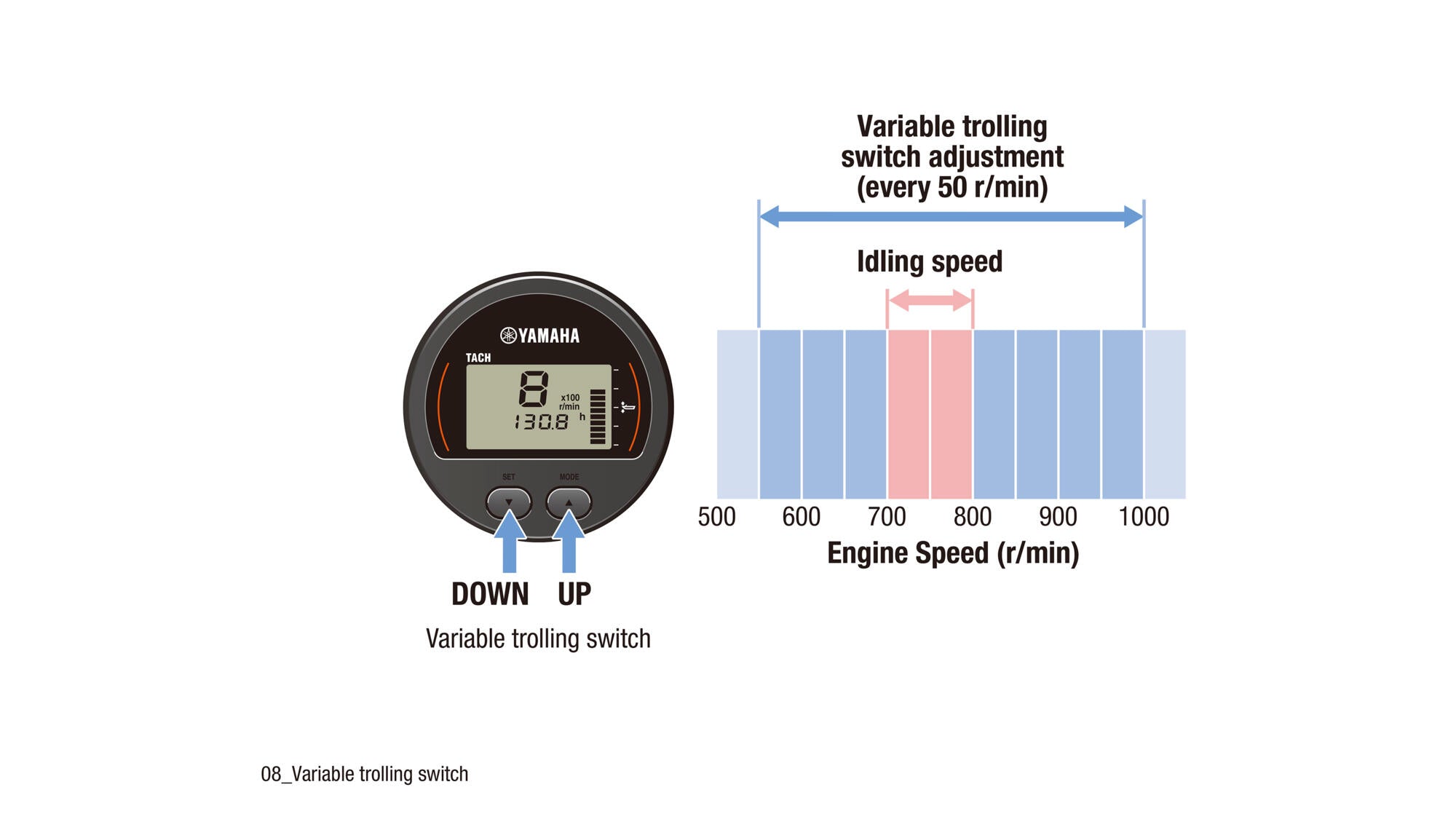

Variable Trolling RPM (option)
Trolling speed adjustment from 550-1,000 RPM in 50 RPM increments. Ideal for fishing or when navigating waterways, marinas or speed limit areas. Trolling speed can be set to 200 RPM below idle speed.
-

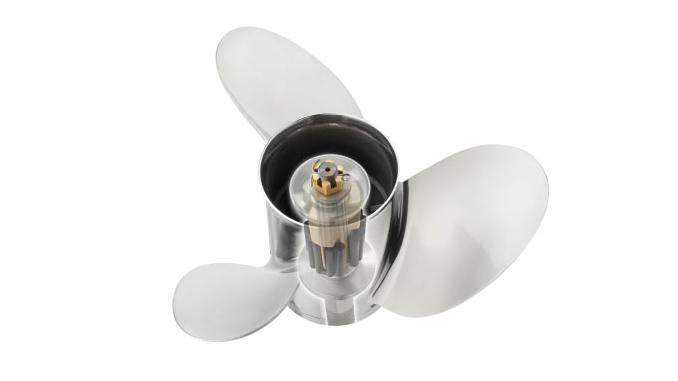

Wide Range of Propellers
This dedicated range of propellers has been developed to complement the wide-ranging Yamaha outboards family and to help you fine-tune the engine/boat performance to fit your personal preferences.
-

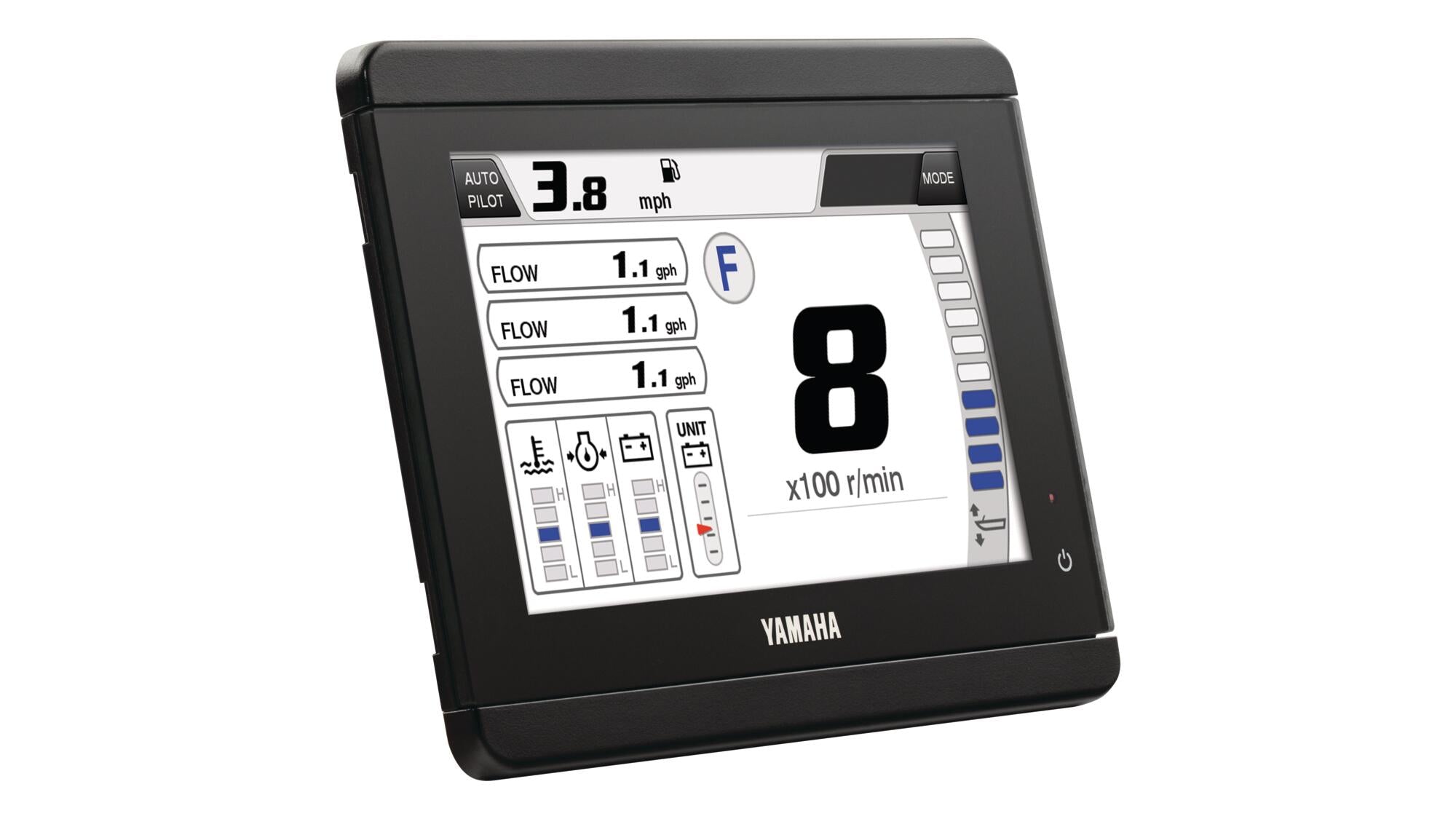

Compatibility with Many Gauges
The very latest technology is incorporated in our models, so the V MAX SHO 90hp is compatible with a very wide range of Yamaha’s exclusive digital control systems and gauges, from 6Y8 up to the newest CL5 gauges and displays.
-

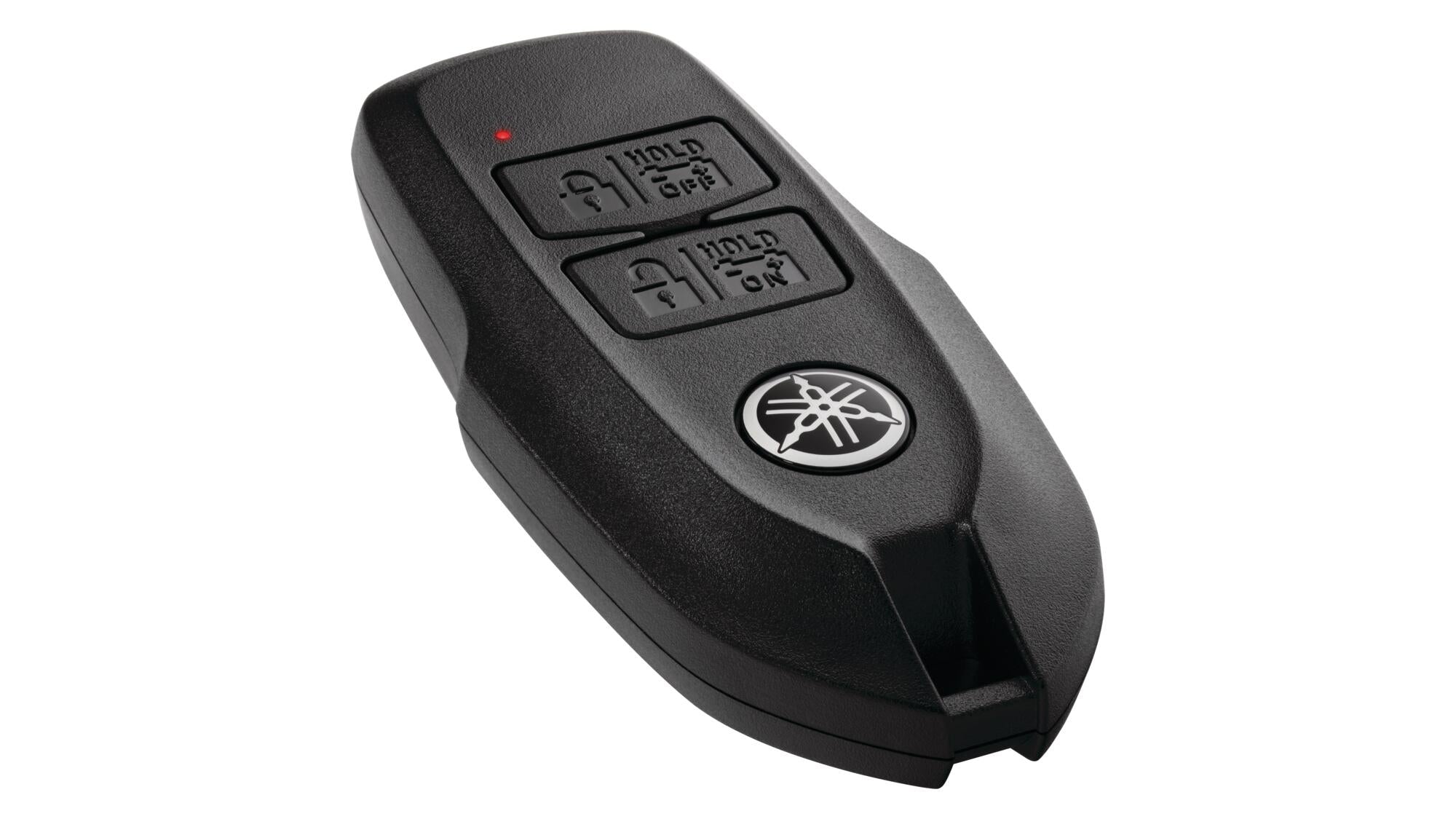

Optional Y-COP® security
The V MAX SHO models are compatible with our exclusive Y-COP® (Yamaha Customer Outboard Protection) security system. It’s a simple, easy-to-use and highly effective option.
Parts & Accessories for the 90hp V-Max
-

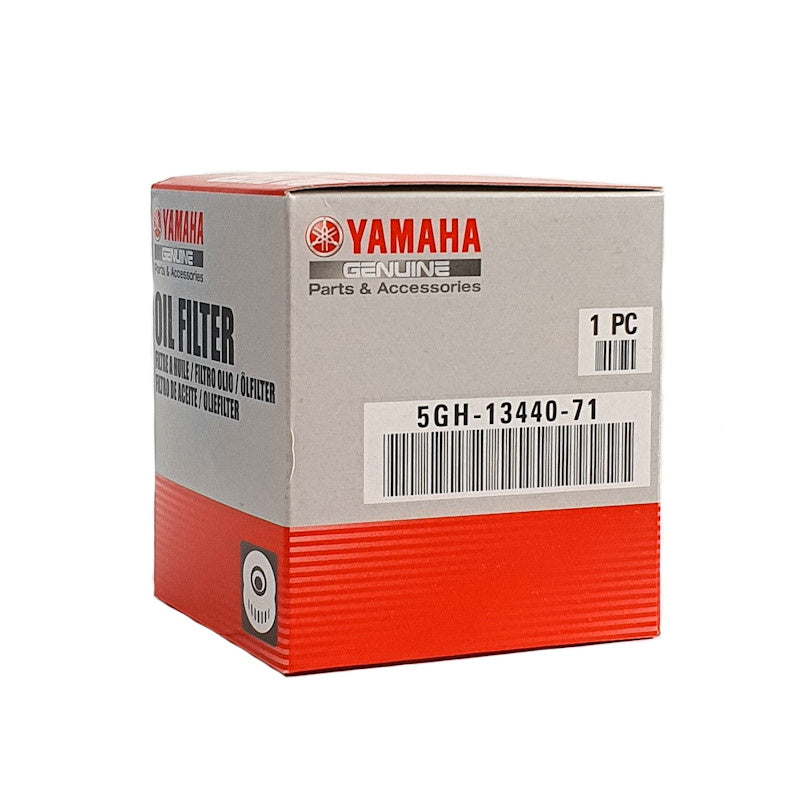

Yamaha Replacement Oil Filter
ViewDesigned specifically for your engine, this filter provides superior protection and ensures a smoother ride. Trust in Yamaha for unmatched quality and efficiency.
-
Yamaha Propeller White Spray Paint
ViewGenuine Yamaha fast-drying acryl lacquer for surfaces of wood, metal, aluminium, glass, stone and various types of plastic.
-

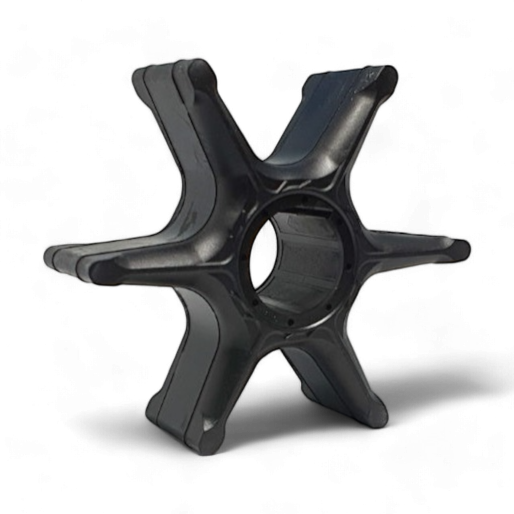

Yamaha Outboard Impeller
