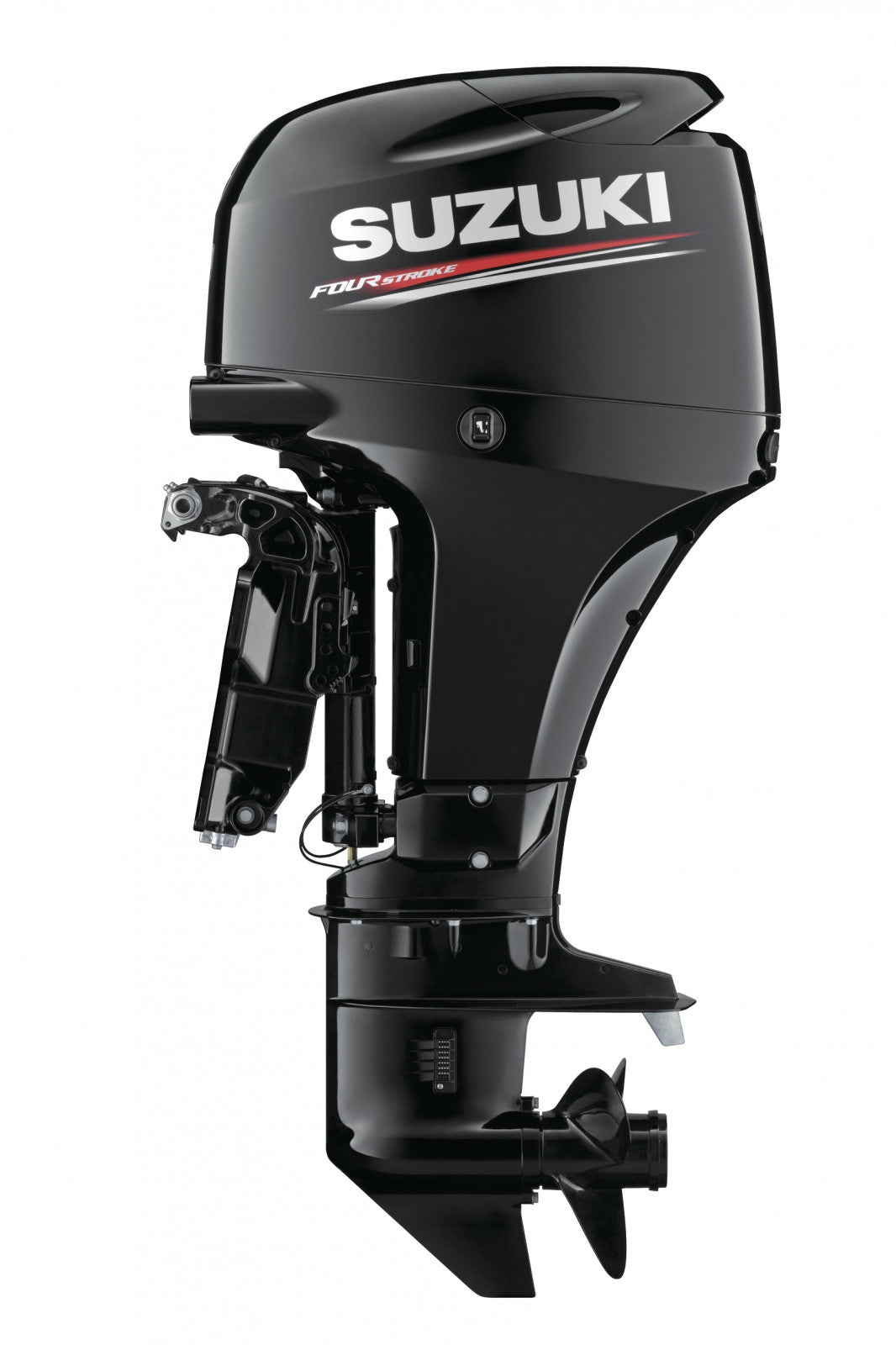

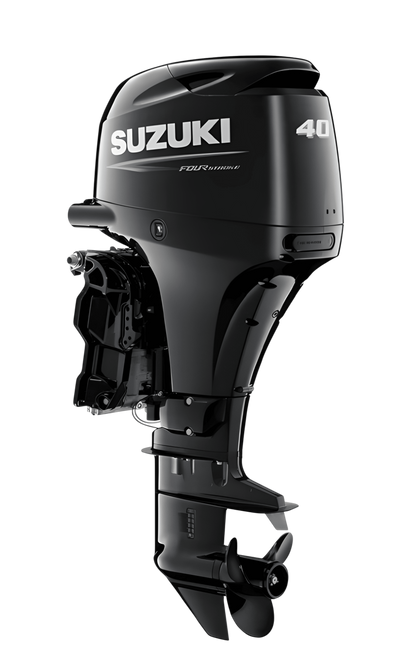

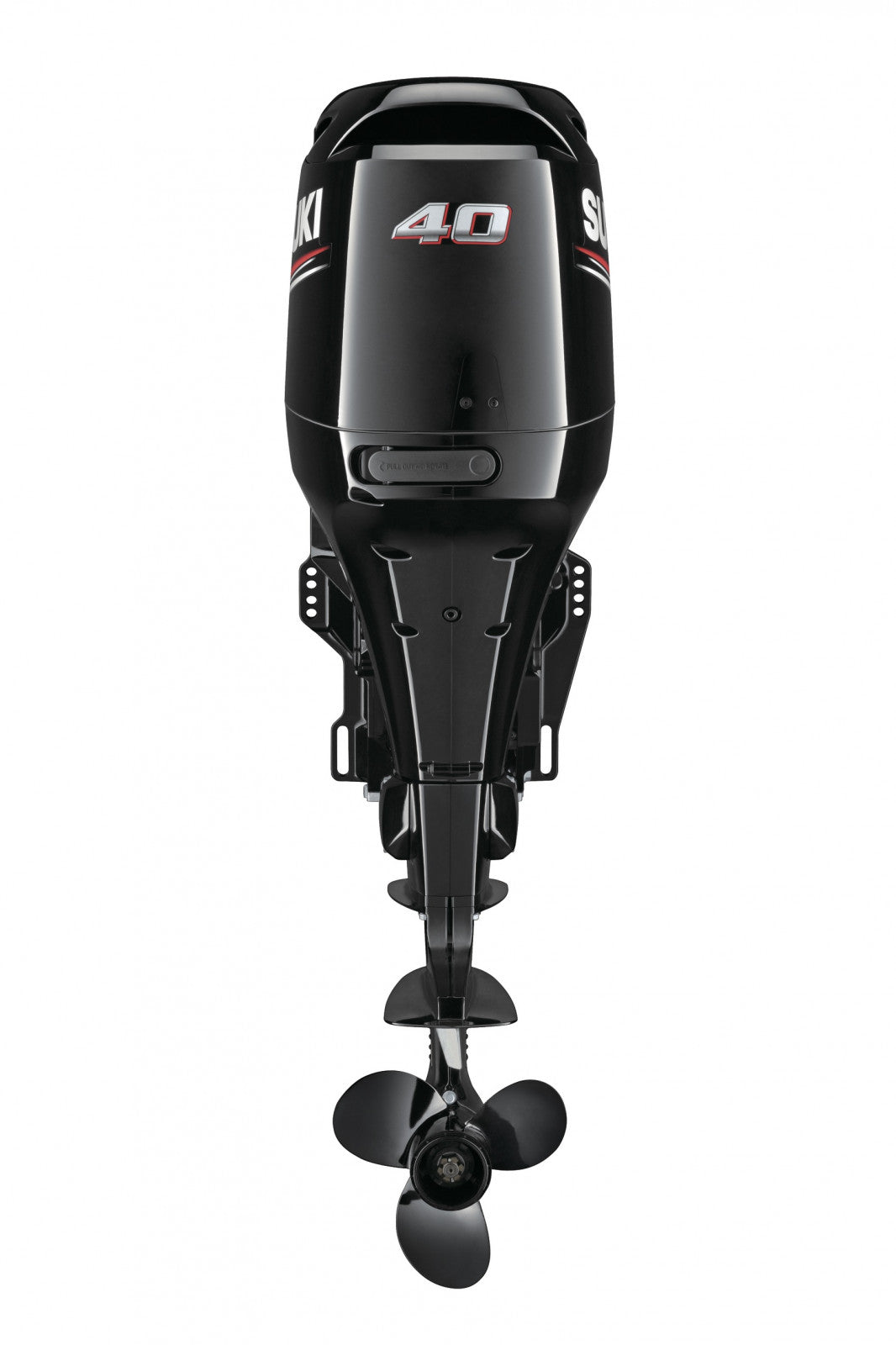

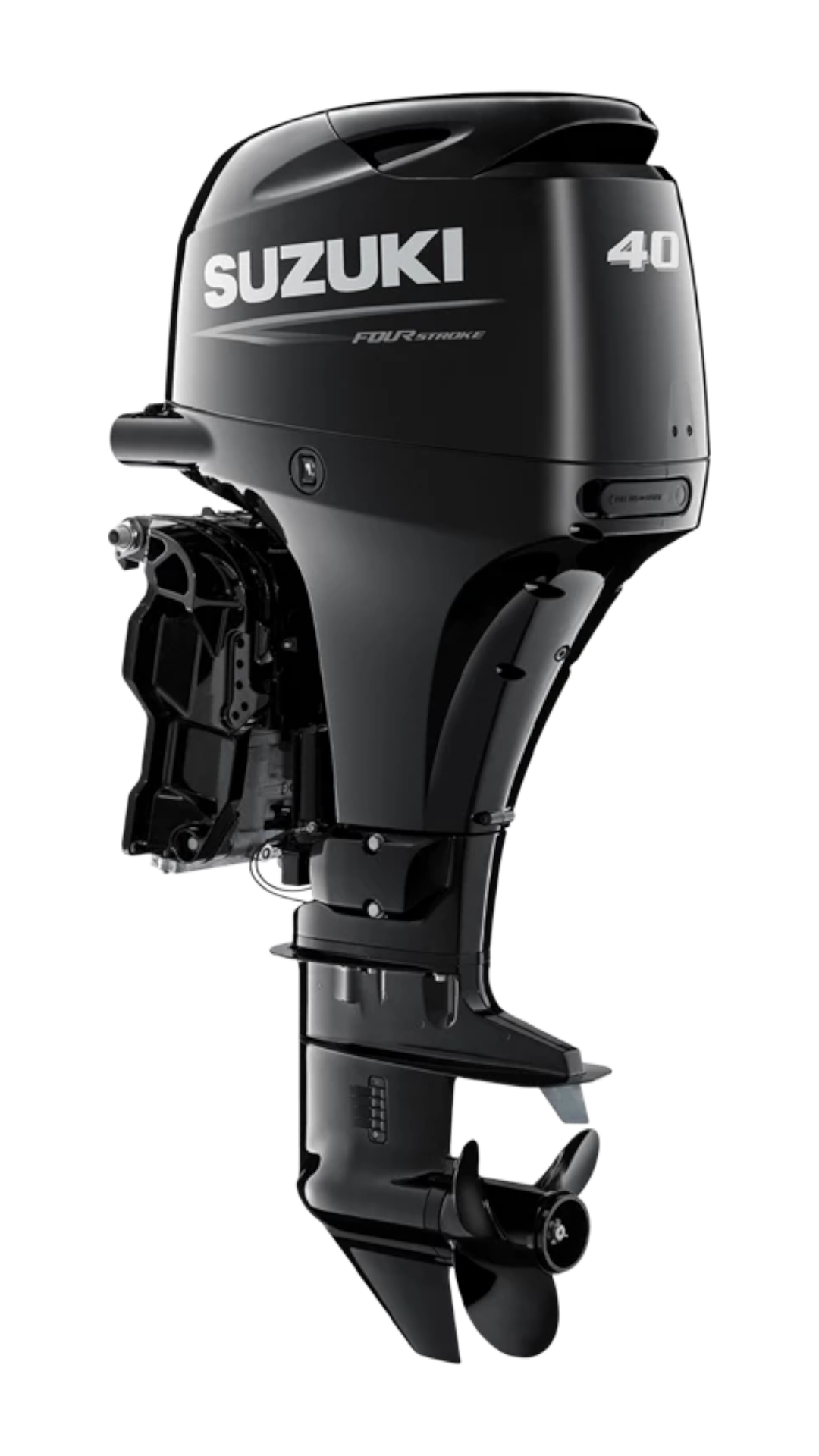

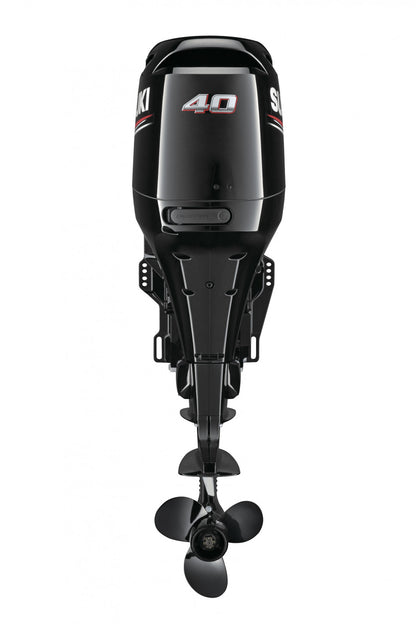

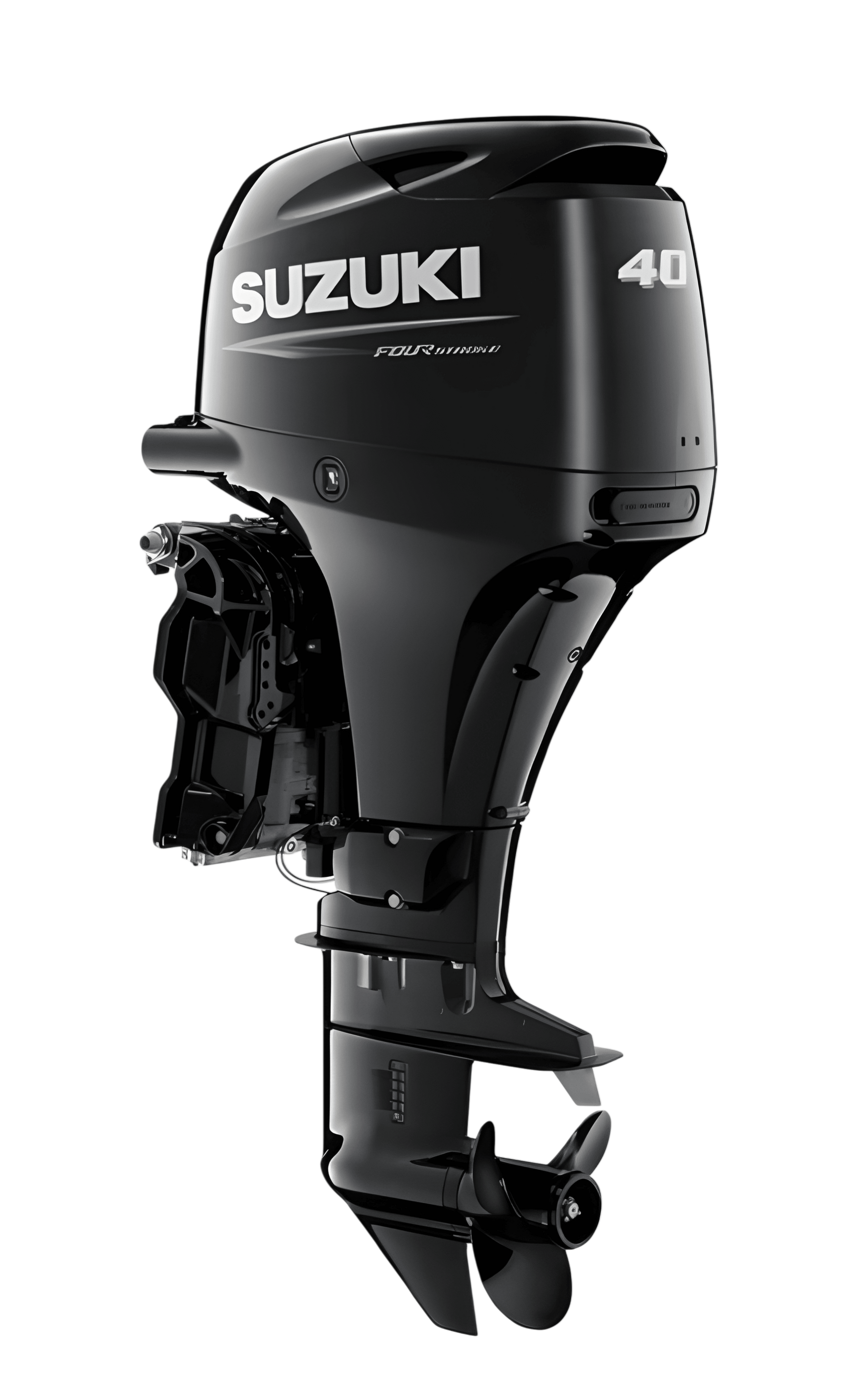

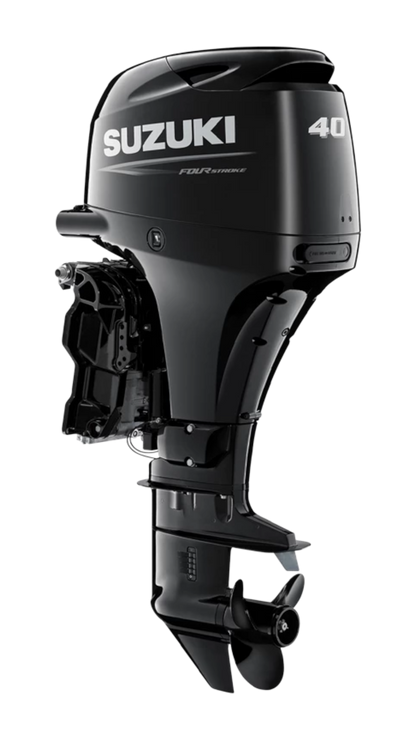

SUZUKI 40HP DF40ATL LONG SHAFT OUTBOARD ENGINE

SUZUKI

  • £5,915.00
    Unit price per
Tax included.


The DF40A range provides a high performance, compact and powerful outboard making it the ideal outboard for all kinds of boats and uses.

When you choose a Suzuki 4-Stroke outboard, we provide you with everything you need to get on the water. With the DF40A we include the following as standard:

- Safety lanyard

- User manual

- Choice of aluminium propeller

- 5 year leisure warranty / 2 year commercial warranty

- 2 year commercial warranty

- 25 Litre external fuel tank

- Fuel line assembly

- Choice of mechanical remote control box

- Trim gauge

- Tacho and monitor gauge

- Flexible rigging kit

Self-adjusting timing chain

Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.

Easy start system

With the easy start system there’s no need to hold the key, just turn it once and the system stays engaged until the engine starts. This smooth and simple design feature gets you up on the water quicker.

Lean Burn control system

Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.

Largest reduction gear ratio in its class

A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.

DETAILS

  • Suzuki Lean Burn Control System
  • 12-Valve DOHC (Dual Overhead Cam) Design
  • Oil-Bathed Timing Chain
  • Suzuki Easy Start System
  • Fully-Transistorized Ignition
  • Multi-Function Center Tiller Handle (DF40ATH/DF40AQH)
  • Multi-Point Sequential Electronic Fuel Injection
  • One-Piece Forged Crankshaft
  • Self Diagnostics System
  • Direct Ignition
  • Long-Track Intake Manifold
  • Power Trim and Tilt → 40AT,
  • Fresh Water Flushing System
  • Gas Assisted Tilt (DF40AQH)
  • Idle Air Control
  • Water-Cooled Vapor Separator/ Fuel Pump
  • 3-Stage Baffle Chamber and Thru-Hub Exhaust
  • Dual Water Intakes
  • Easy Oil Drain Plug
  • RCD Standards (E01) CARB Rating: 3-Star Ultra-Low Emission (E03)
  • Externally-Mounted Tilt Switch
  • Oil Change Reminder System
  • Large Capacity 19A Alternator
  • Suzuki Anti-Corrosion System
  • Suzuki Troll Mode System (Optional)

SPECIFICATIONS

Recommended transom height: 508mm (20in)
Weight: 104Kg
Bore x Stroke: 72.5 x 76.0mm
Propeller Selection (pitch): 9" - 17
Starting System: Electric
Engine Type: DOHC 12-Valve
Fuel Delivery System: Multi-Point Sequential Electronic Fuel Injection
No. of Cylinders: 3
Piston Displacement: 941cc
Maximum Output: 29.4KW
Full Throttle Operating Range: 5,000 - 6,000
Steering: Remote
Oil Pan Capacity: 2.7L
Fuel Tank Capacity: 25L (optional)
Ignition System: Fully-transistorised
Alternator: 12V 19A
Engine Mounting: Shear Mount
Trim Method: Power Trim and Tilt
Gear Ratio: 2.42:1
Gear Shift: F-N-R
Exhaust: Through Prop Hub Exhaust
