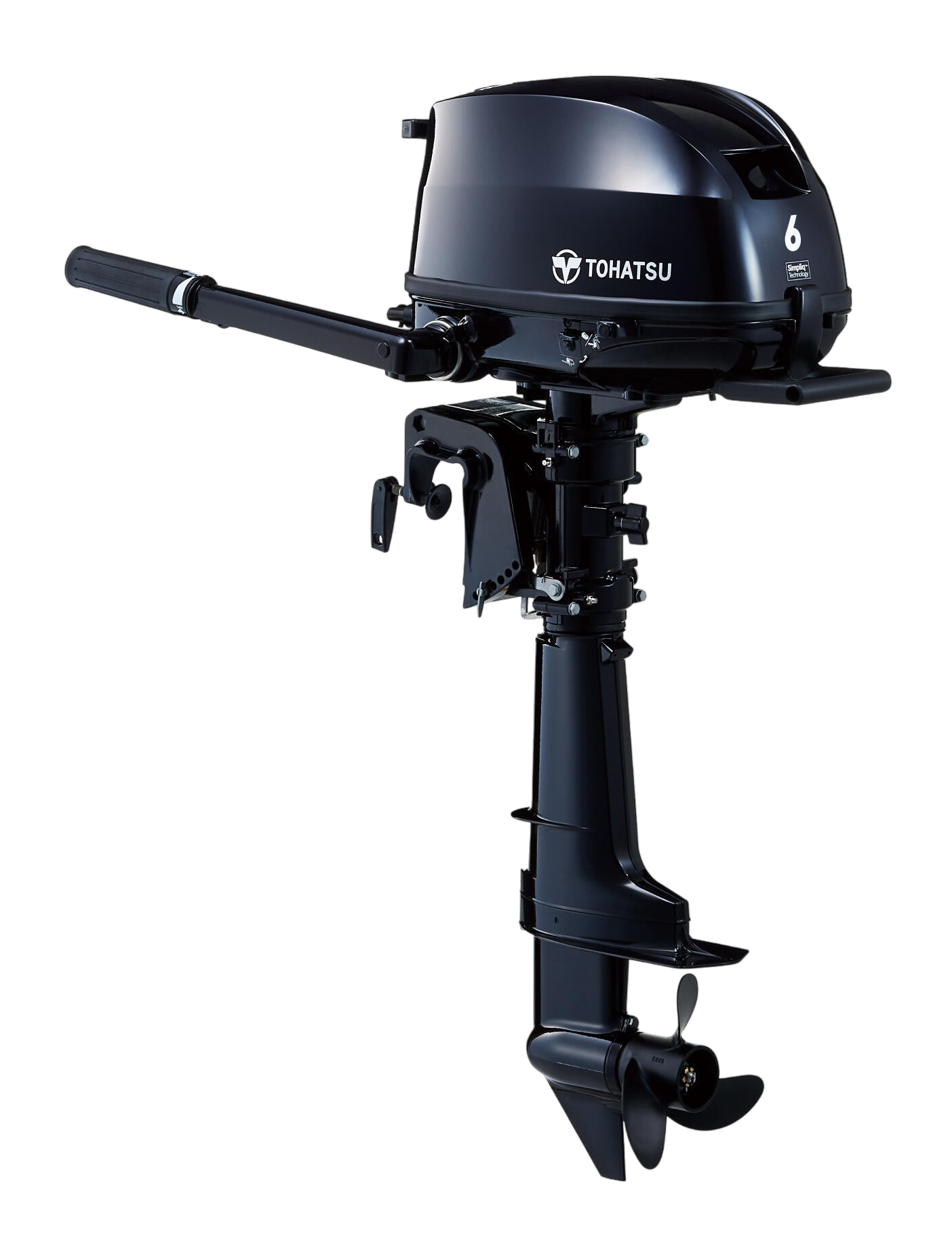

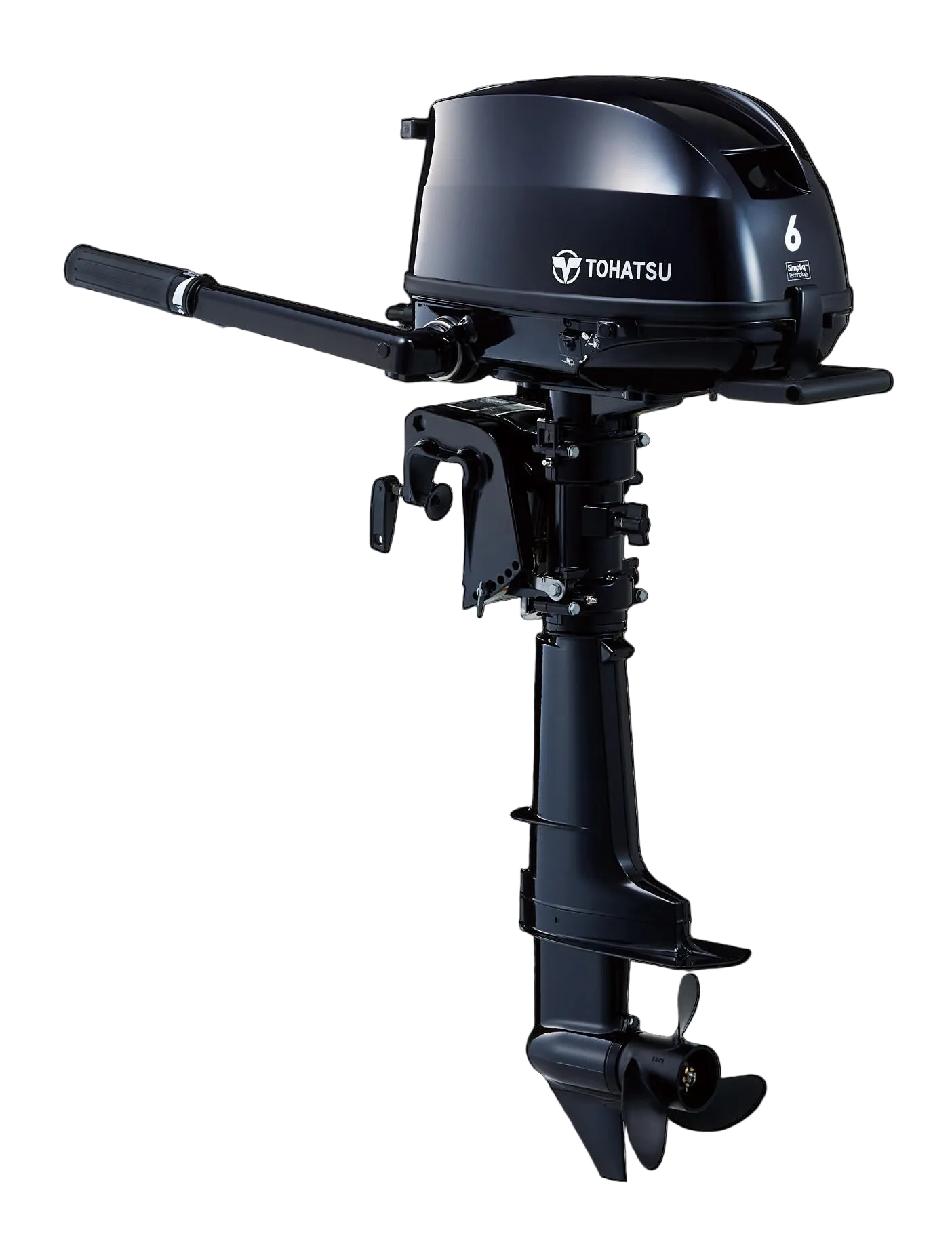

Tohatsu 6hp Outboard

The 6 hp 4-stroke outboard provides all the power you need for motoring in a small craft.

This engine provides fuel efficiency second to none, and a redesigned carrying handle and holding grip makes it convenient to transport! With all of this available at a competitive price, it is no wonder this powerful 6hp outboard receives so much attention and praise!

This portable best-seller has been upgraded with newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products with ergonomically designed front and back carrying handles.

In addition, you can now store your engine in 3 different positions without worrying about oil spillage.

Specifications:

• Engine: 4 Stroke 1 Cylinder
• Output: 6 ps (4.4 kw)
• Displacement: 123 cc (7.5 cu.in.)
• Bore x Stroke: 59 x 45 mm (2.32 x 1.77 in)
• Max. RPM Range: 5,000 - 6,000
• Starting: Manual
• Control Type: Tiller Handle
• Gear Shift: Forward - Neutral - Reverse
• Gear Ratio: 2.15:1
• Propeller Selection Range: 6" - 9"
• Transom Height: 15", 20", 25"
• Fuel: Unleaded Gasoline (87 Octane)
• Oil Type: NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
• Oil Capacity: 450 mL (15 fl. oz.)
• Fuel Tank: Internal Fuel Tank Models (MFS6DD) : 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank)
  External Fuel Tank Models (MFS6DS) : 12L (3.1 US Gal.) Separate Fuel Tank
• Weight*: 25 kg (55 lbs.)
• Alternator Output: Optional: 12V, 60W, 5A
• Digital CD Ignition System: Standard
• Start In Gear Protection: Standard
• Thermostat Controlled Cooling System: Standard
• Through-The-Prop Exhaust: Standard
• Oil Pressure Warning: Standard
• Shallow Water Drive: Standard

Dimensions:

* Weight specification is based on the lightest version.

** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.

* SP models come standard with a high-thrust prop and 12V charging system.

Note: MFS6DD internal fuel tank models includes an external fuel tank connector installed on the engine to allow user to connect an optional external fuel tank.
