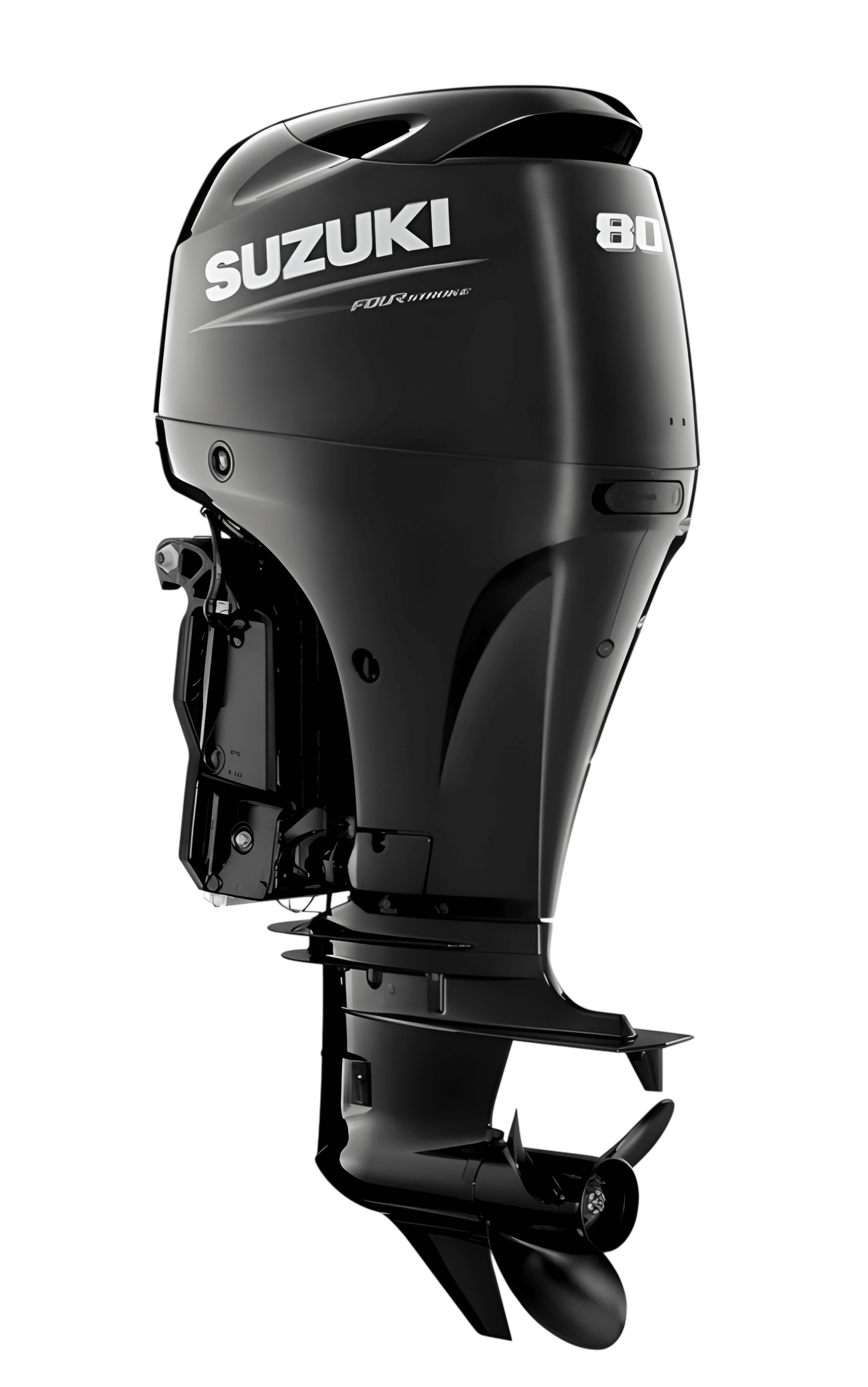

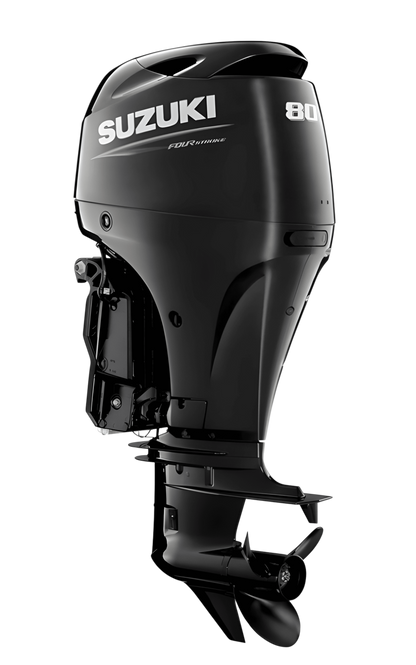

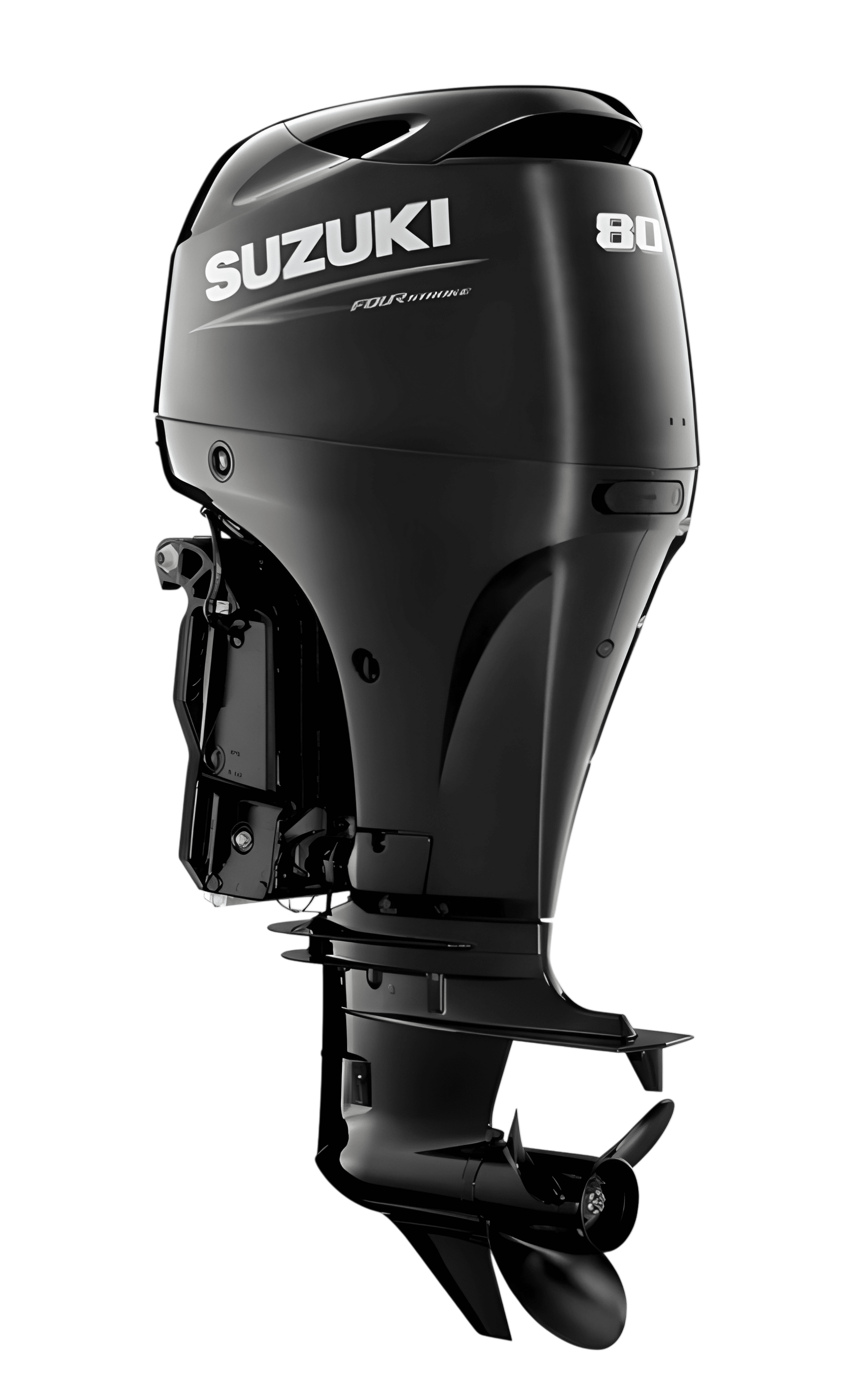

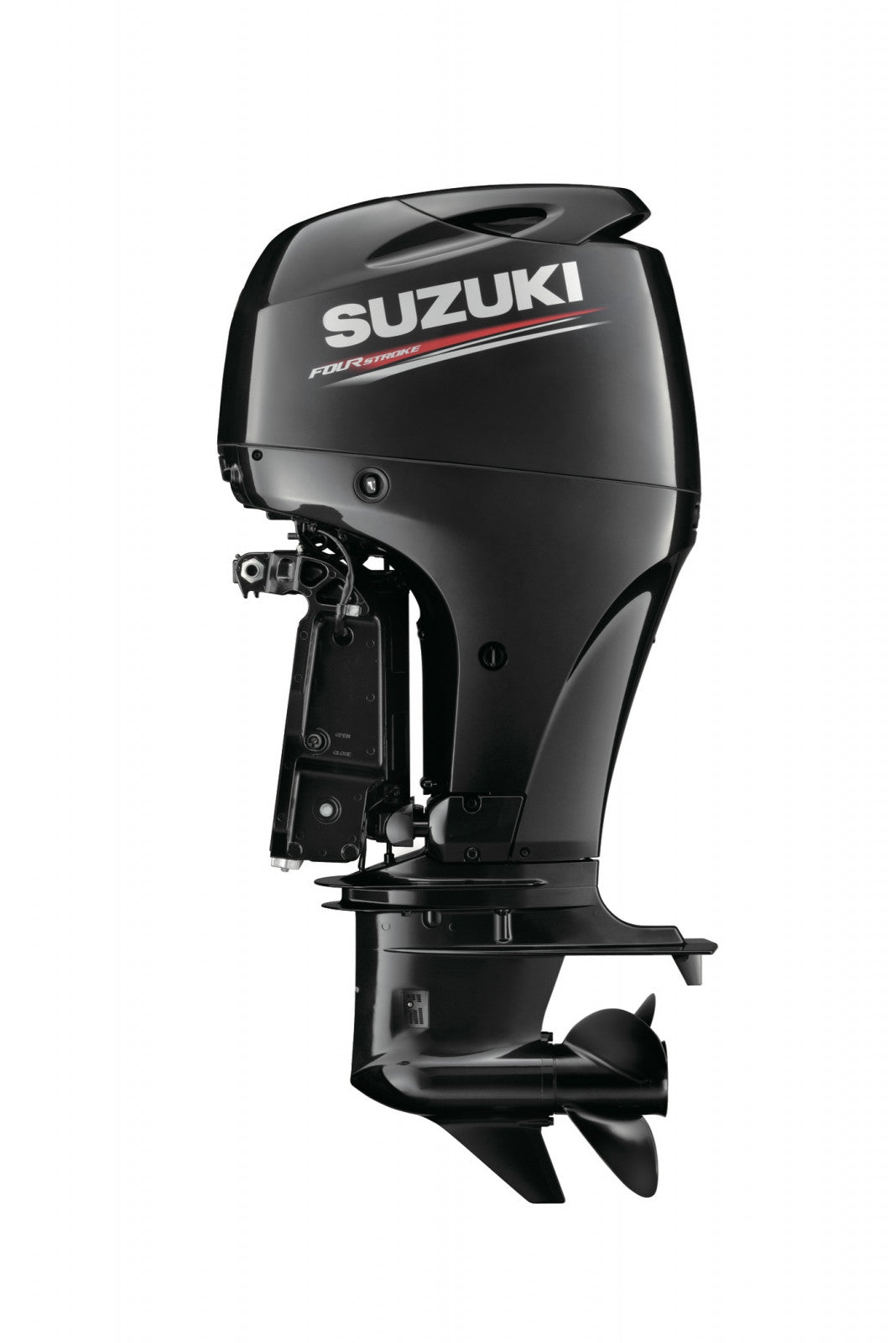

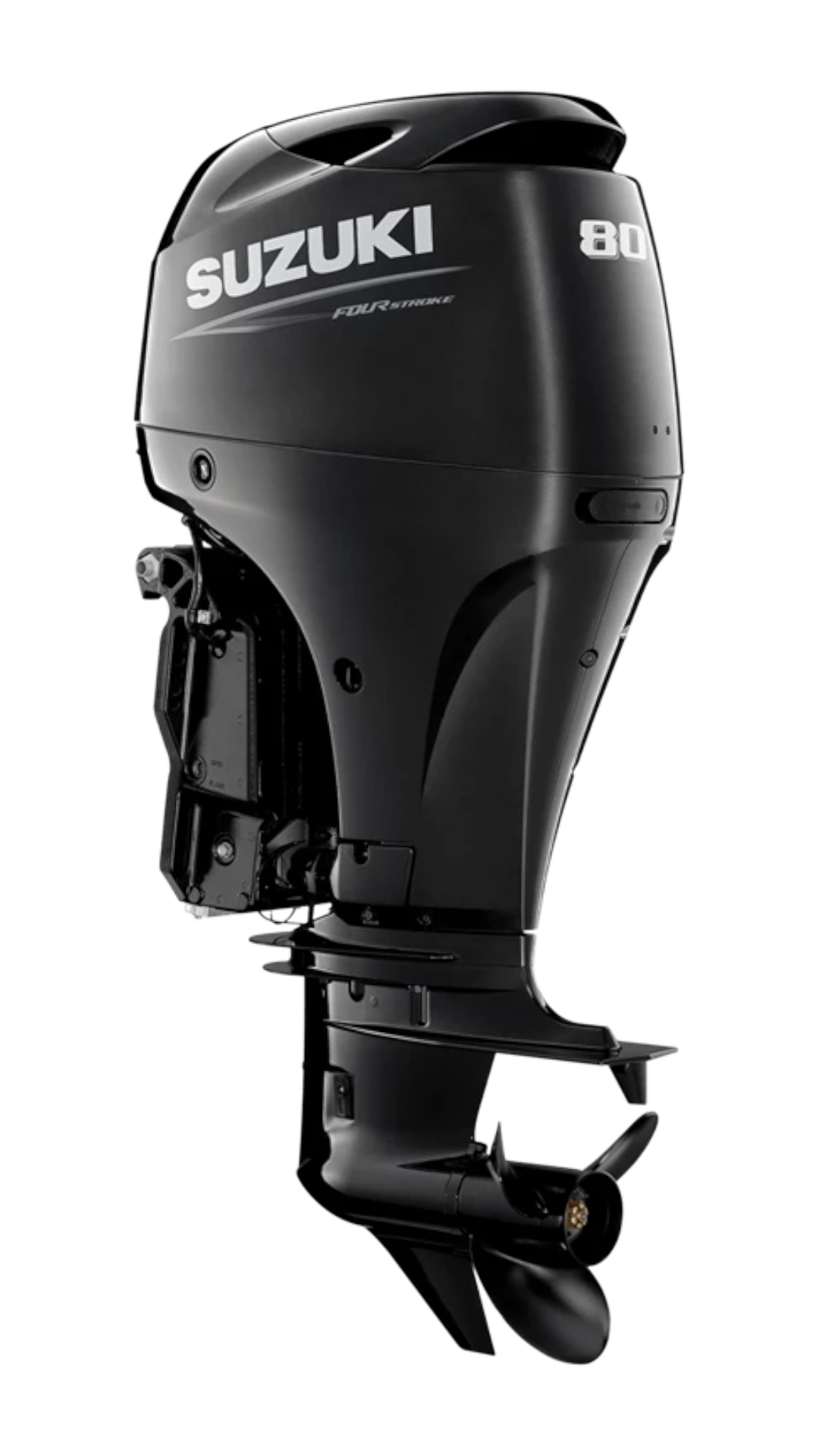

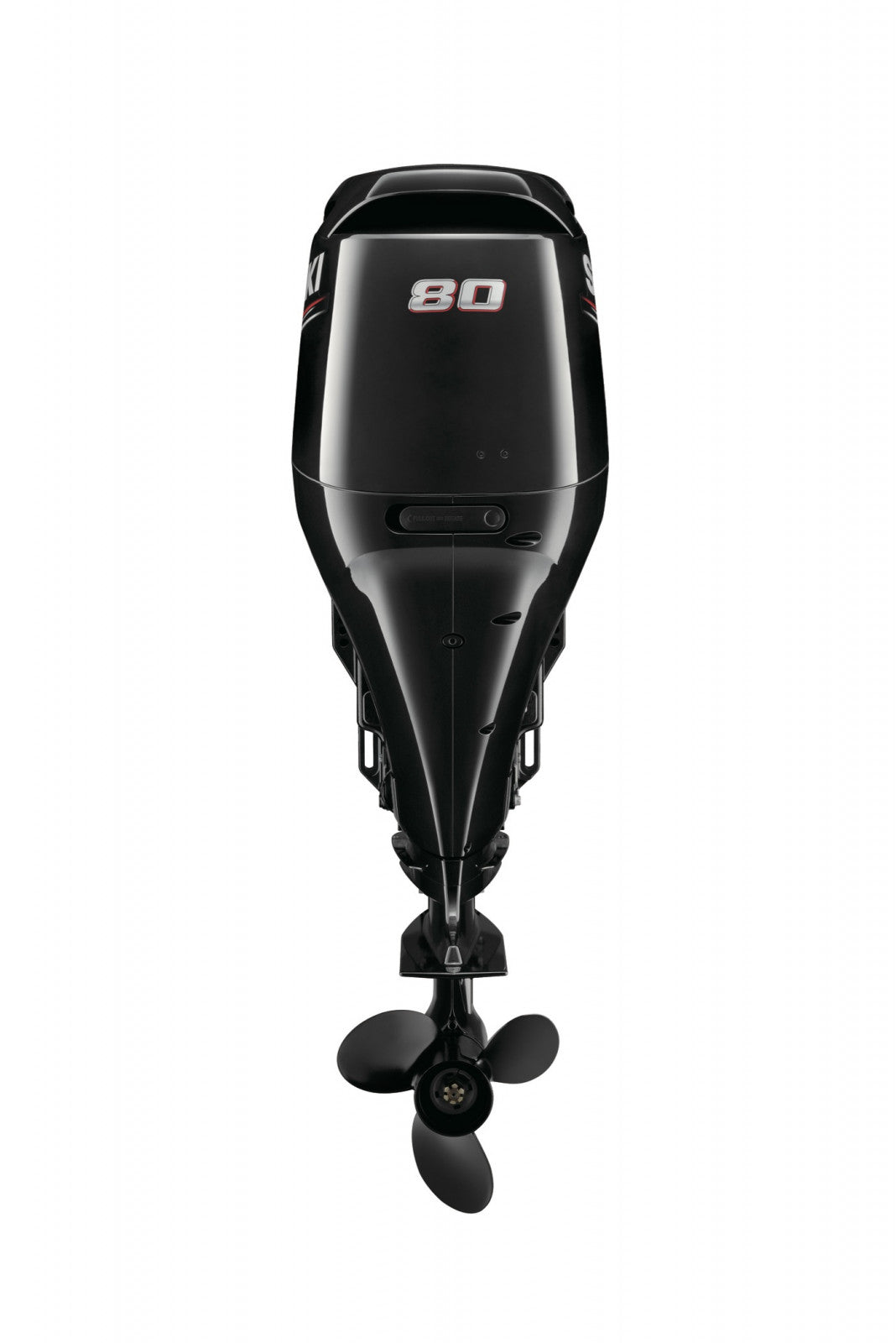

Suzuki DF80hp Outboard
Suzuki DF80hp Outboard
Power, performance, reliability and fuel efficiency - ready for work or play.
When you choose a Suzuki 4-Stroke outboard, we provide you with a completely flexible rigging kit to suit your boat and get you on the water. With the DF80A we include the following:
- Safety lanyard
- User manual
- Choice of aluminium propeller
- 5 year leisure warranty / 2 year commercial warranty
- 2 year commercial warranty
- Choice of mechanical remote control box
- Trim gauge
- Tacho and monitor gauge
- Flexible rigging kit
- Suzuki Keyless Start Immobiliser System
Lean Burn control system
Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
Offset drive shaft
The Offset Drive allows us to make our outboard engines smaller by moving the outboards centre of gravity forward, improving weight distribution, power output, balance and reduces vibration.
Self-adjusting timing chain
Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.
Suzuki keyless start system
Designed with convenience in mind this system offers simple, stress-free starting and acts as an immobiliser to help deter theft.
Tilt limit system
To protect the boat and motor from damage a user adjustable tilt limit switch prevents the outboard from tilting beyond a predetermined point.
DETAILS
- Suzuki Lean Burn Control System
- 16-Valve DOHC (Dual Overhead Cam) Design
- Offset Driveshaft
- Two-Stage Gear Reduction System
- Suzuki Easy Start System
- Trim and Tilt Limit System
- Direct Ignition
- Streamlined Gear Case
- Two-Stage Cam Drive System
- Oil-Bathed Timing Chain
- Cool Air Intake System
- Water-cooled Fuel Rail
- Air-Cooled High Output Alternator
- 32-Bit Computer
- Multi-Point Sequential Electronic Fuel Injection
- One-Piece Forged Crankshaft
- Self Diagnostics System
- Fully-Transistorized Ignition System
- Idle Air Control
- Easy Oil Drain Plug
- RCD Standards (E01) CARB Rating: 3-Star Ultra-Low Emission (E03)
- Two Fresh Water Flushing Ports
- Oil Change Reminder System
- Tilt Limit System
- Suzuki Anti-Corrosion System
- Suzuki Troll Mode System (Optional)
SPECIFICATIONS
Recommended transom height: | 510mm (20.08in) |
Weight: | 156.0Kg |
Bore x Stroke: | 75 x 85mm |
Propeller Selection (pitch): | 13" - 25" |
Starting System: | Electric |
Engine Type: | DOHC 16 valve |
No. of Cylinders: | 4 |
Piston Displacement: | 1502cc |
Maximum Output: | 58.8KW |
Full Throttle Operating Range: | 5,000 - 6,000 |
Steering: | Remote |
Oil Pan Capacity: | 4.0L |
Fuel Tank Capacity: | 25L |
Ignition System: | Fully-transistorised |
Alternator: | 12V 27A |
Trim Method: | Power Trim and Tilt |
Gear Ratio: | 2.59:1 |
Gear Shift: | F-N-R |
Exhaust: | Through Prop Hub Exhaust |
