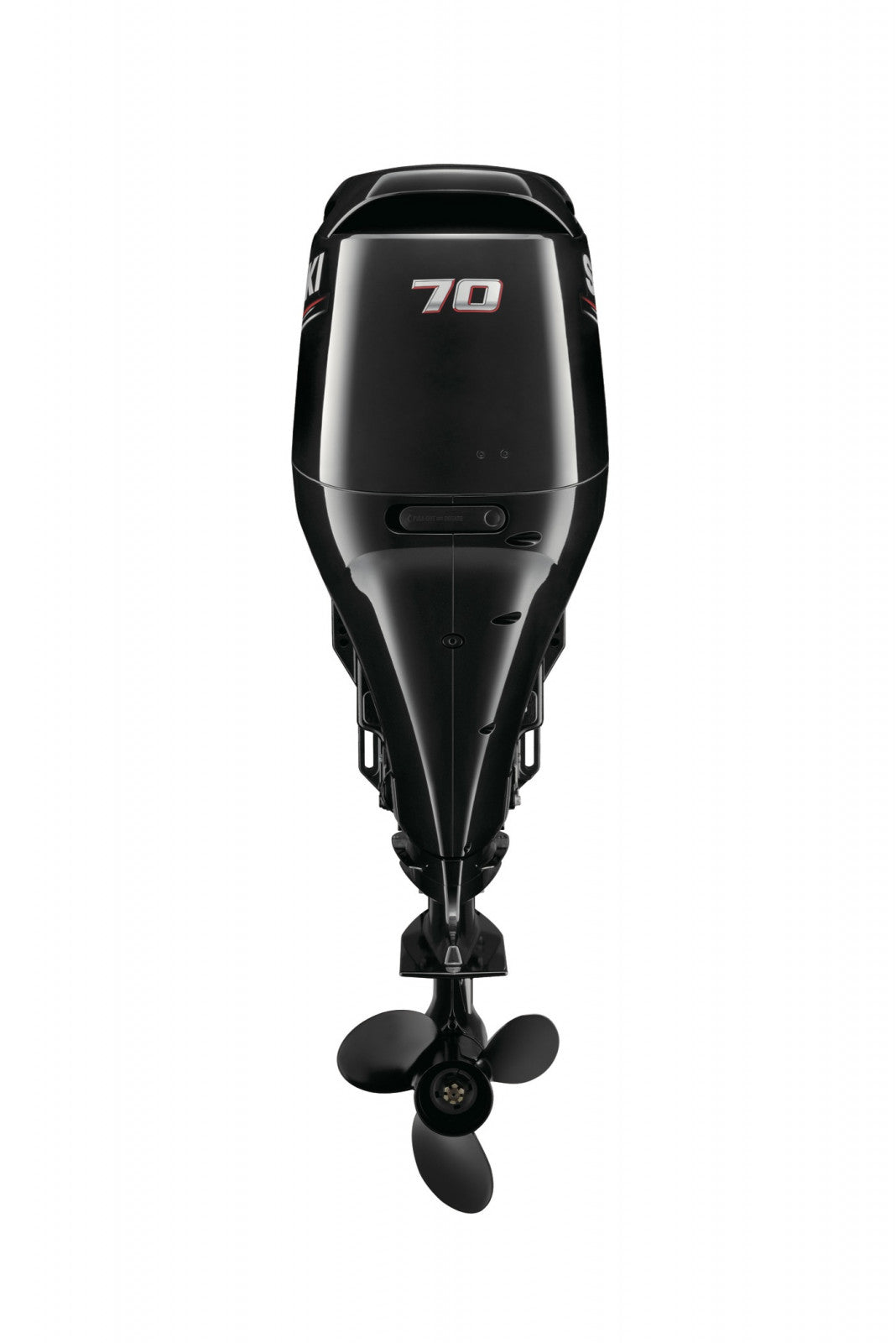

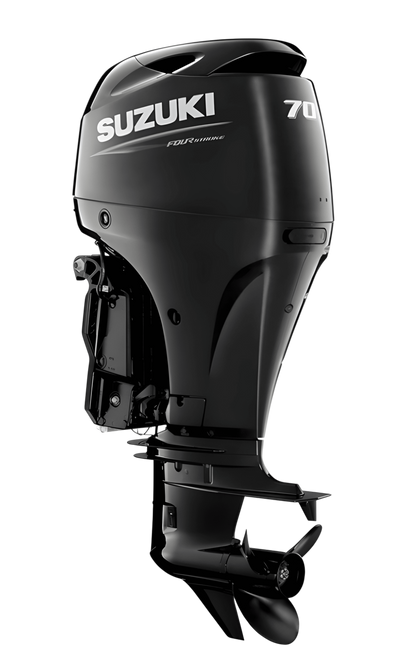

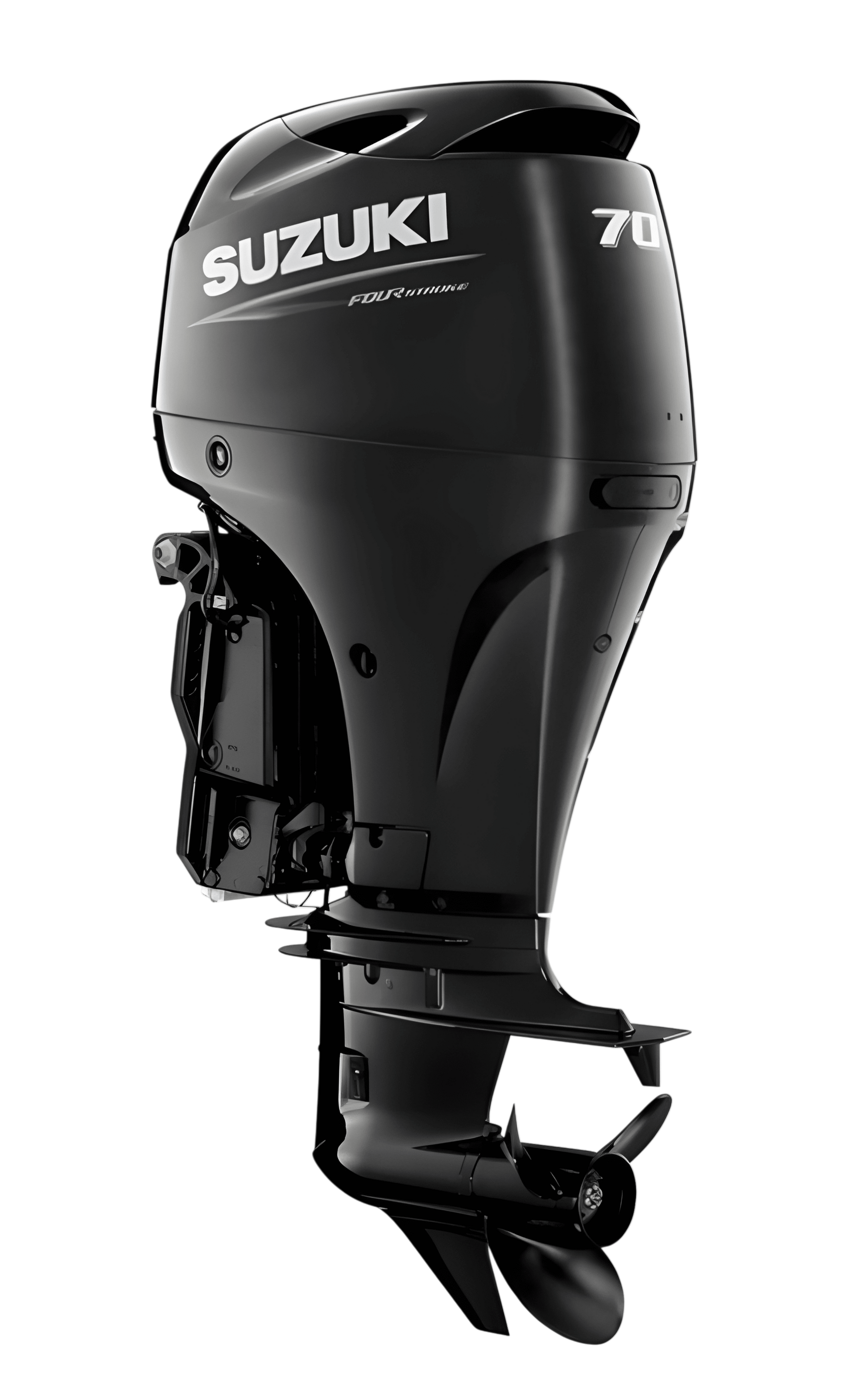

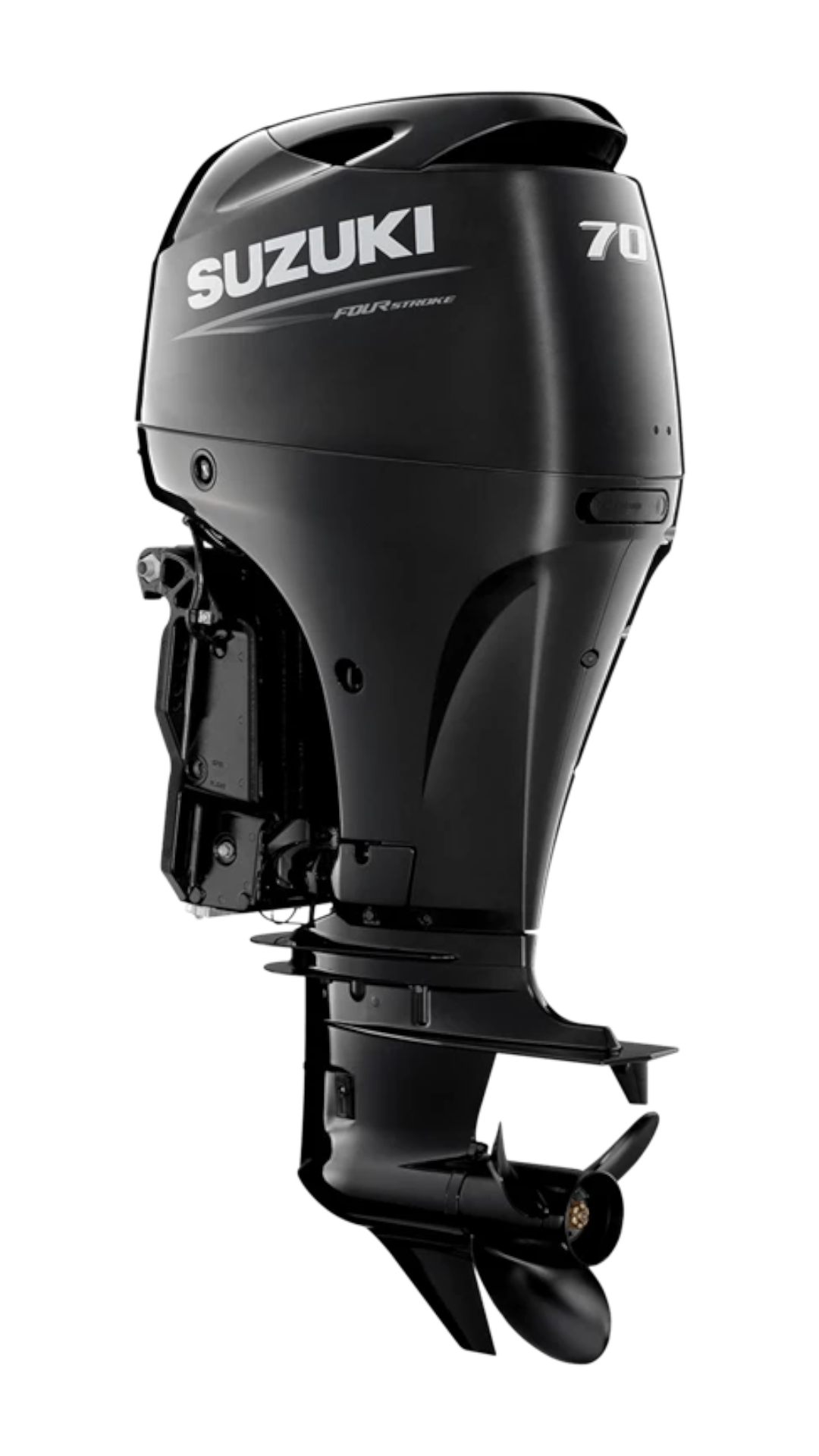

Suzuki DF70hp Outboard

Suzuki DF70hp Outboard

Regular price £8,549.95
Regular price £8,999.95 Sale price £8,549.95
Sale Sold out
Tax included.

Power, performance, reliability and fuel efficiency - ready for work or play.

When you choose a Suzuki 4-Stroke outboard, we provide you with a completely flexible rigging kit to suit your boat and get you on the water. With the DF70A we include the following:

- Safety lanyard

- User manual

- Choice of aluminium propeller

- 5 year leisure warranty / 2 year commercial warranty

- 2 year commercial warranty

- Choice of mechanical remote control box

- Trim gauge

- Tacho and monitor gauge

- Flexible rigging kit

- Suzuki Keyless Start Immobiliser System

Lean Burn control system

Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.

Offset drive shaft

The Offset Drive allows us to make our outboard engines smaller by moving the outboards centre of gravity forward, improving weight distribution, power output, balance and reduces vibration.

Self-adjusting timing chain

Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.

Suzuki keyless start system

Designed with convenience in mind this system offers simple, stress-free starting and acts as an immobiliser to help deter theft.

Tilt limit system

To protect the boat and motor from damage a user adjustable tilt limit switch prevents the outboard from tilting beyond a predetermined point.

Largest reduction gear ratio in its class

A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.


  • Suzuki Lean Burn Control System
  • 16-Valve DOHC (Dual Overhead Cam) Design
  • Offset Driveshaft
  • Two-Stage Gear Reduction System
  • Suzuki Easy Start System
  • Trim and Tilt Limit System
  • Direct Ignition
  • Streamlined Gear Case
  • Two-Stage Cam Drive System
  • Oil-Bathed Timing Chain
  • Cool Air Intake System
  • Water-cooled Fuel Rail
  • Air-Cooled High Output Alternator
  • 32-Bit Computer
  • Multi-Point Sequential Electronic Fuel Injection
  • One-Piece Forged Crankshaft
  • Self Diagnostics System
  • Fully-Transistorized Ignition System
  • Idle Air Control
  • Easy Oil Drain Plug
  • RCD Standards (E01) CARB Rating: 3-Star Ultra-Low Emission (E03)
  • Two Fresh Water Flushing Ports
  • Oil Change Reminder System
  • Tilt Limit System
  • Suzuki Anti-Corrosion System
  • Multi-Function Tiller Handle (DF90ATH/70ATH)
  • Suzuki Troll Mode System (Optional)


Recommended transom height: 508mm (20in)
Weight: 156.0kg
Bore x Stroke: 75 x 85mm
Propeller Selection (pitch): 13" - 25"
Starting System: Electric
Engine Type: 4-stroke DOHC 16 Valves
Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
No. of Cylinders: 4
Piston Displacement: 1502cc
Maximum Output: 51.5KW
Full Throttle Operating Range: 5,000 - 6,000
Steering: Remote
Oil Pan Capacity: 4L
Fuel Tank Capacity: 25L (optional)
Ignition System: Fully-transistorised
Alternator: 12V 27A
Engine Mounting: Shear Mount
Trim Method: Power Trim and Tilt
Gear Ratio: 2.59:1
Gear Shift: F-N-R
Exhaust: Through Prop Hub Exhaust
