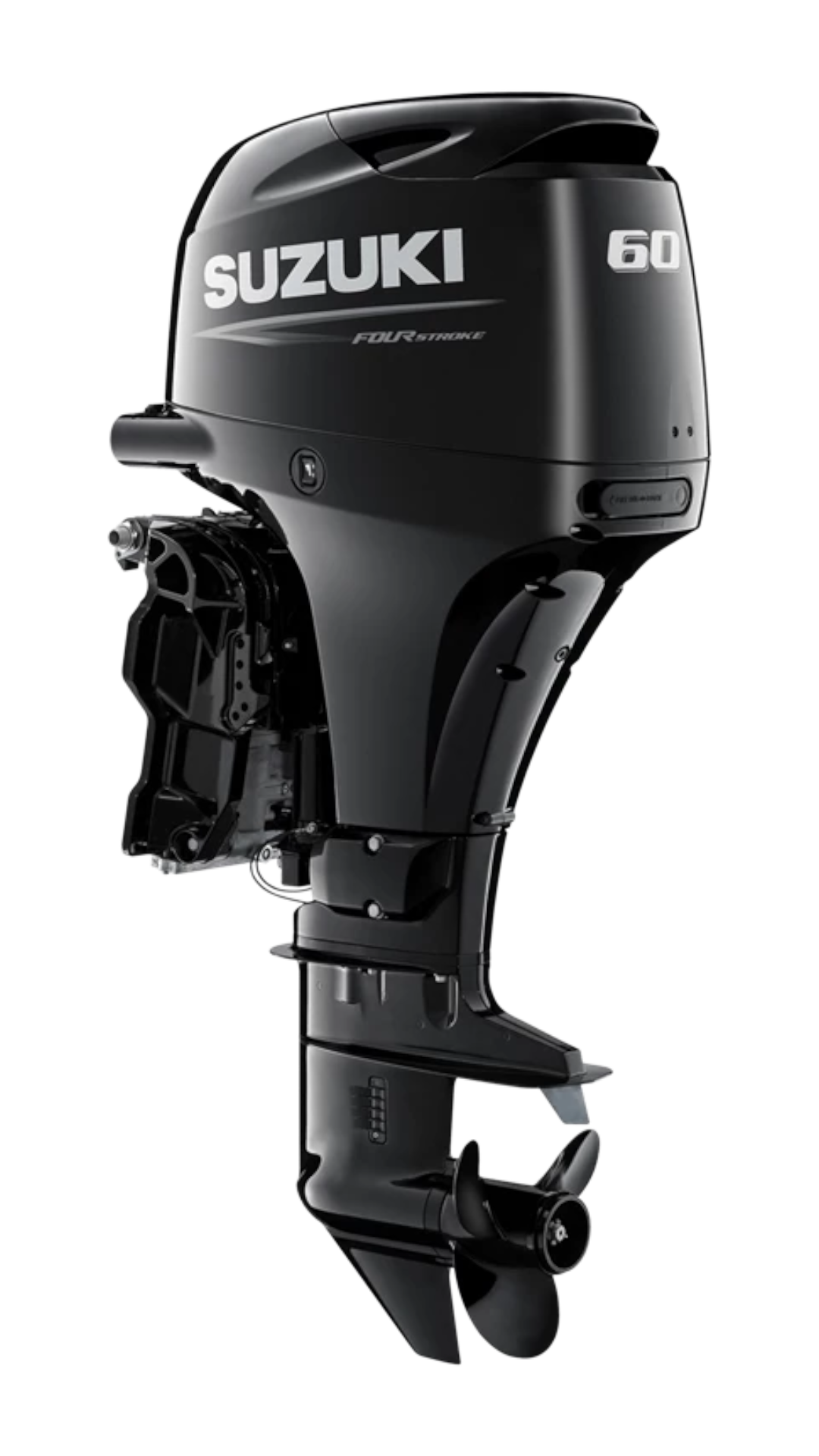

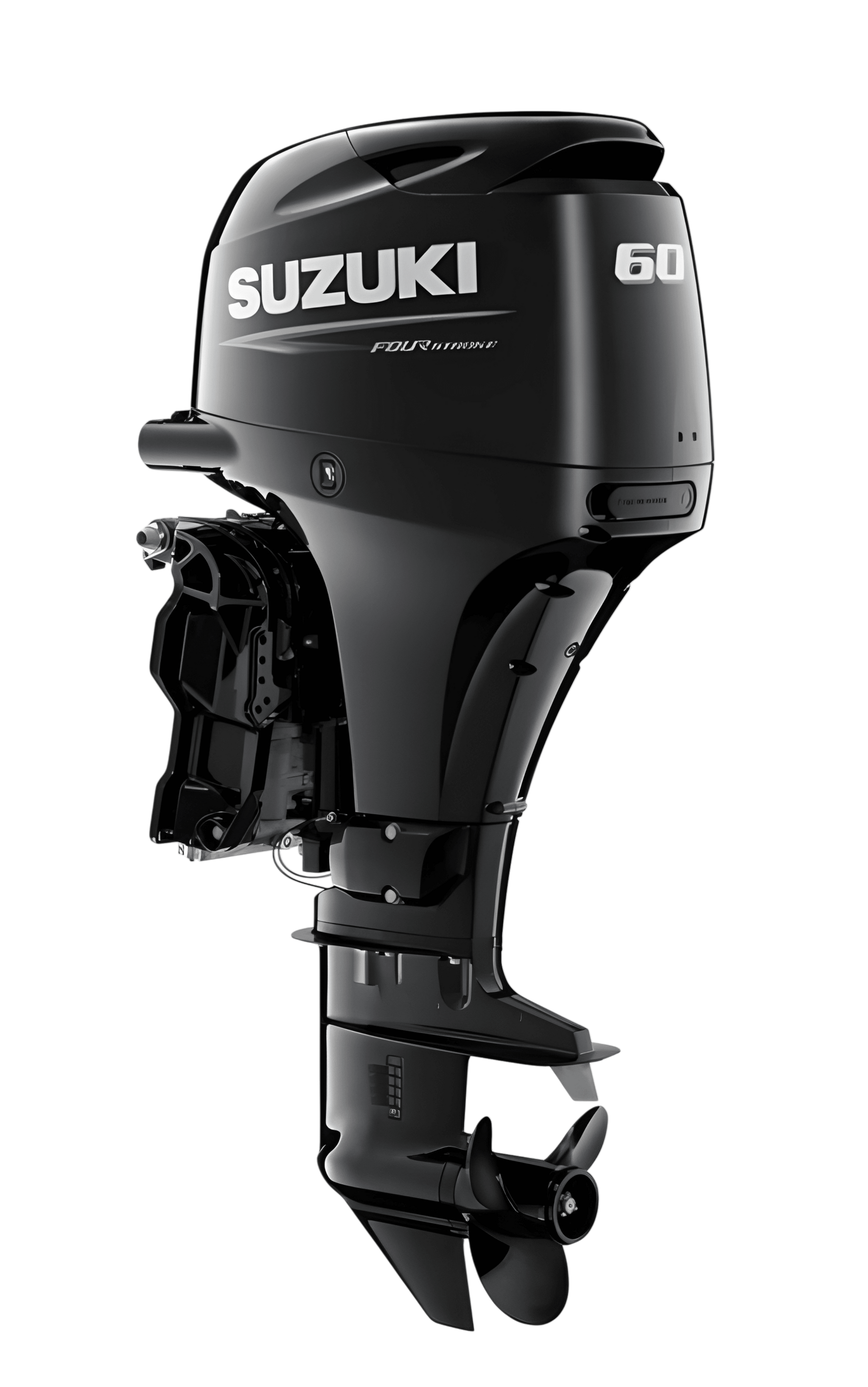

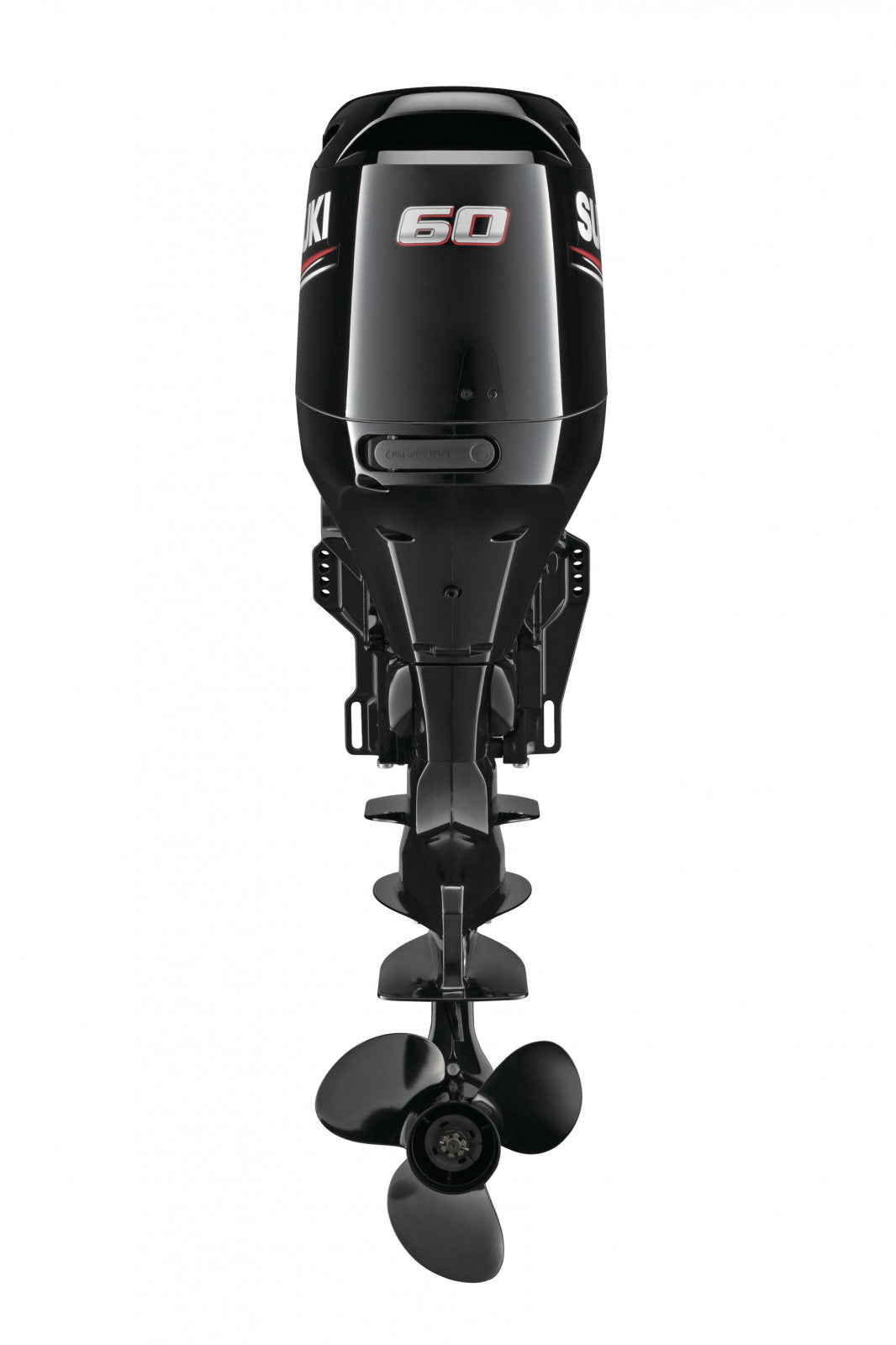

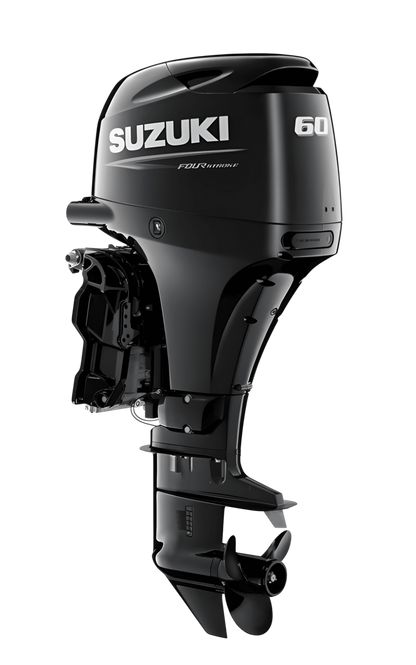

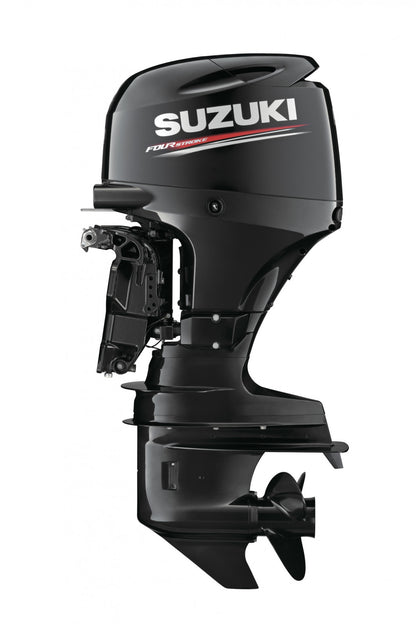

SUZUKI 60HP DF60ATL LONG SHAFT OUTBOARD ENGINE

SUZUKI

  • £7,645.00
    Unit price per
Tax included.


The DF60A is a powerful, quick and efficient outboard and has the largest reduction gear ratio in its class.

When you choose a Suzuki 4-Stroke outboard, we provide you with everything you need to get on the water. With the DF60A we include the following as standard:

- Safety lanyard

- User manual

- Choice of aluminium propeller

- 5 year leisure warranty / 2 year commercial warranty

- 2 year commercial warranty

- 25 Litre external fuel tank

- Fuel line assembly

- Choice of mechanical remote control box

- Trim gauge

- Tacho and monitor gauge

- Flexible rigging kit

Self-adjusting timing chain

Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times.

High energy rotation

The DF60AVTL is a high thrust version of the DF60ATL with a large 2.42 gear ratio that turns a bigger propeller resulting in a 42% increase in forward thrust and 136% in reverse, providing the power you need for moving heavy boats.

Easy start system

With the easy start system there’s no need to hold the key, just turn it once and the system stays engaged until the engine starts. This smooth and simple design feature gets you up on the water quicker.

Tilt limit system

Protects the boat from damage when tilting the outboard acting as both a tilt limit and trim sender, the step-free, continuous system allows you to install the outboard on almost any boat.

Lean Burn control system

Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.

Largest reduction gear ratio in its class

A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.

DETAILS

  • Suzuki Lean Burn Control System
  • 12-Valve DOHC (Dual Overhead Cam) Design
  • Direct Ignition
  • Tilt Limit System
  • Suzuki Easy Start System
  • Multi-Point Sequential Electronic Fuel Injection
  • One-Piece Forged Crankshaft
  • Self Diagnostics System
  • Fully-Transistorized Ignition
  • Idle Air Control
  • Long-Track Intake Manifold
  • Water-Cooled Vapor Separator/Fuel Pump
  • Gas Assisted Tilt (DF60AQH)
  • Large Capacity 19A Alternator
  • Self- Adjusting Timing Chain
  • 3-Stage Baffle Chamber and Thru-Hub Exhaust
  • Fresh Water Flushing Port
  • Easy Oil Drain Plug
  • RCD Standards (E01) CARB Rating: 3-Star Ultra-Low Emission (E03)
  • Oil Change Reminder System
  • Multi-Function Center Tiller Handle (DF60ATH/60AQH)
  • Suzuki Anti-Corrosion System
  • Suzuki Troll Mode System (Optional)

SPECIFICATIONS

Recommended transom height: 508mm (20in)
Weight: 104Kg
Bore x Stroke: 72.5 x 76.0mm
Propeller Selection (pitch): 9" - 17"
Starting System: Electric
Engine Type: DOHC 12-Valve
Fuel Delivery System: Multi-Point Sequential Electronic Fuel Injection
No. of Cylinders: 3
Piston Displacement: 941cc
Maximum Output: 44.1KW
Full Throttle Operating Range: 5,300 - 6,300
Steering: Remote
Oil Pan Capacity: 2.7L
Ignition System: Fully-transistorised
Alternator: 12V 19A
Engine Mounting: Shear Mount
Trim Method: Power Trim and Tilt
Gear Ratio: 2.42:1
Gear Shift: F-N-R
Exhaust: Through Prop Hub Exhaust
Fuel Tank Capacity: 25L (optional)
