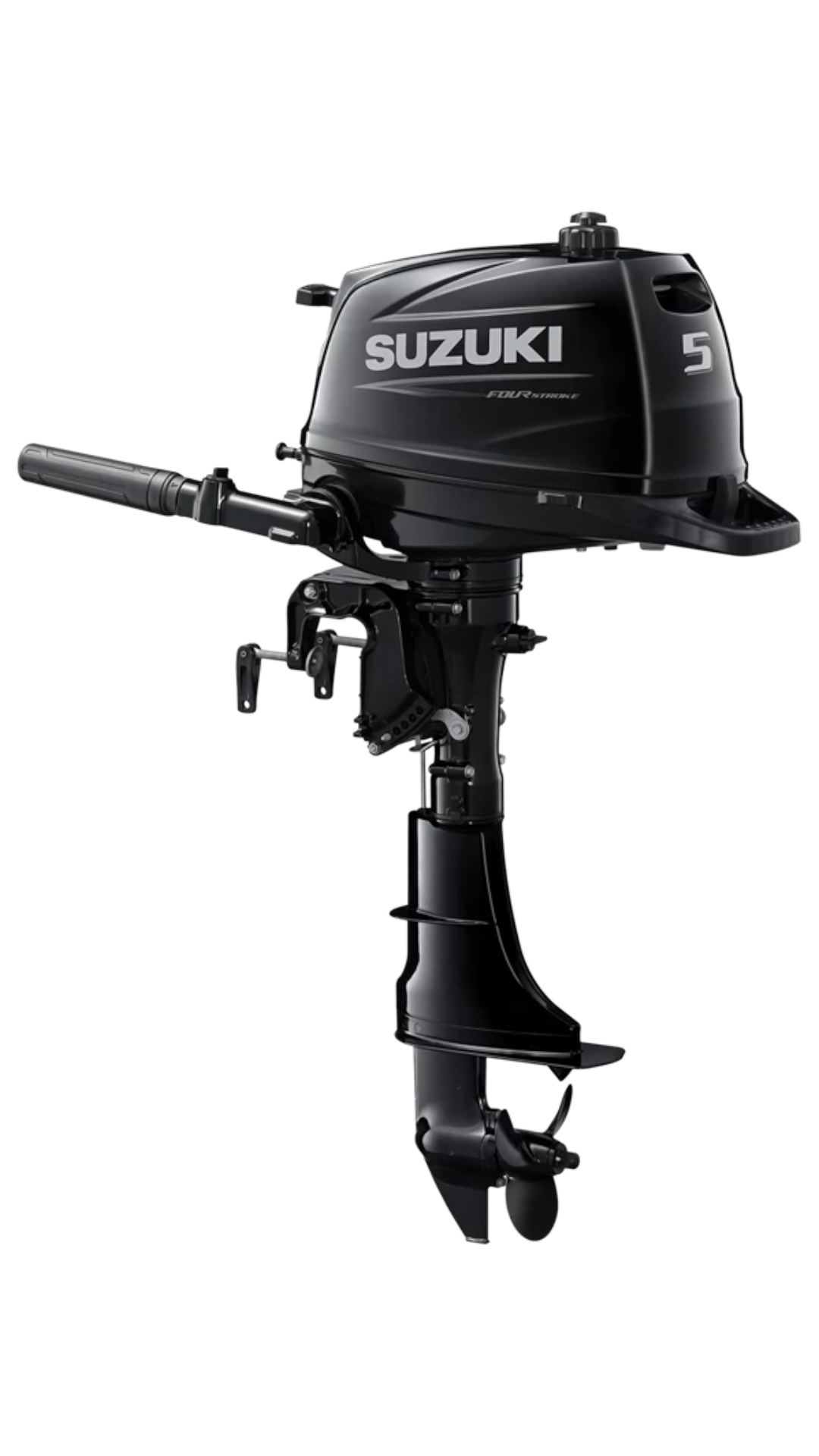

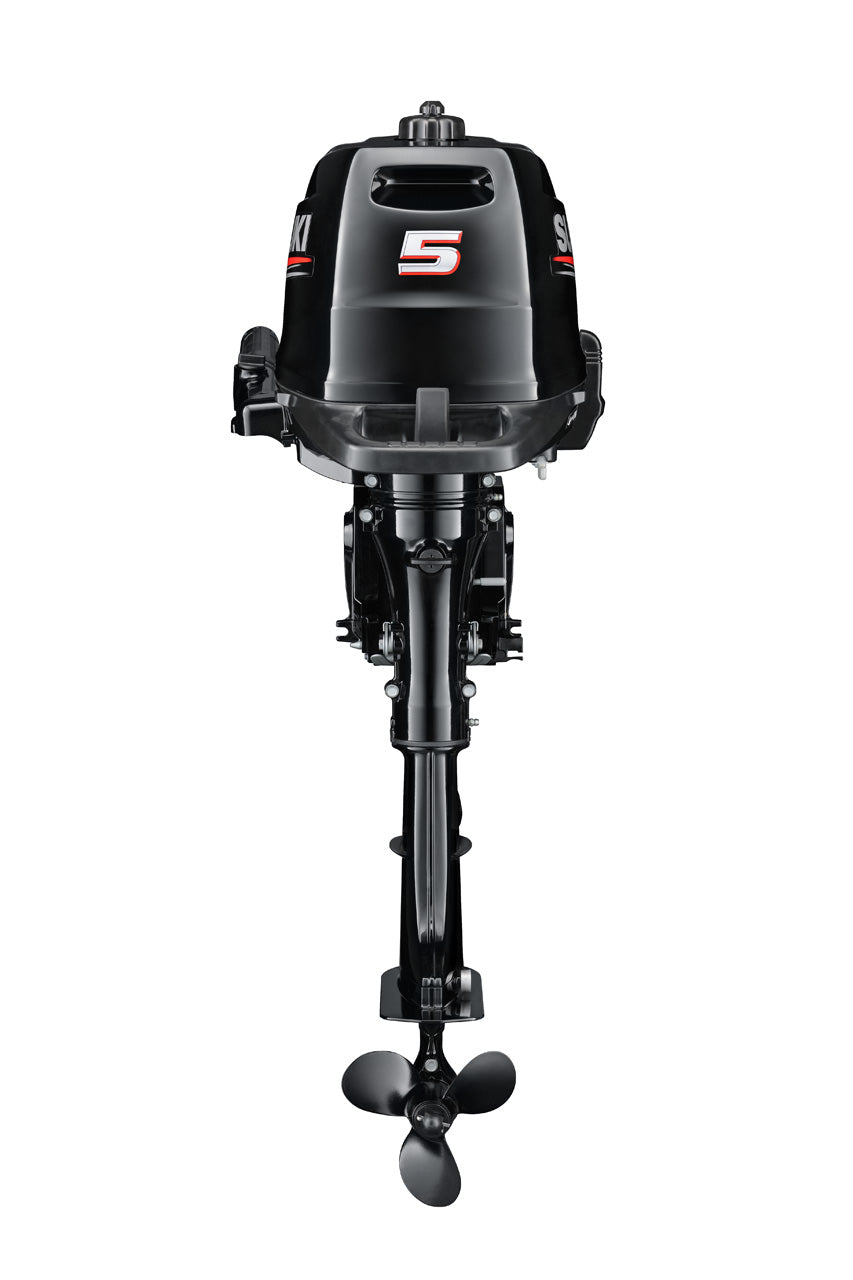

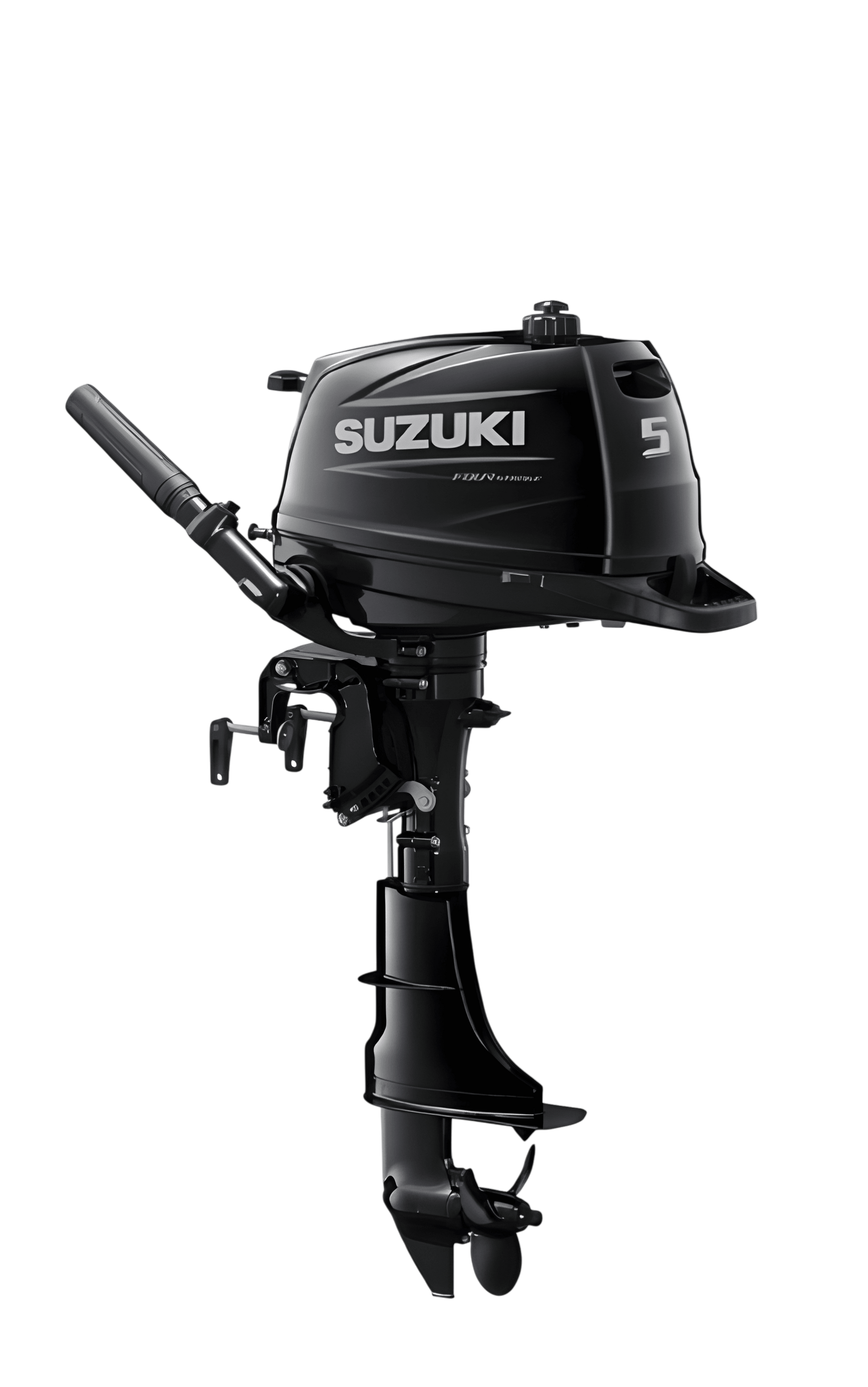

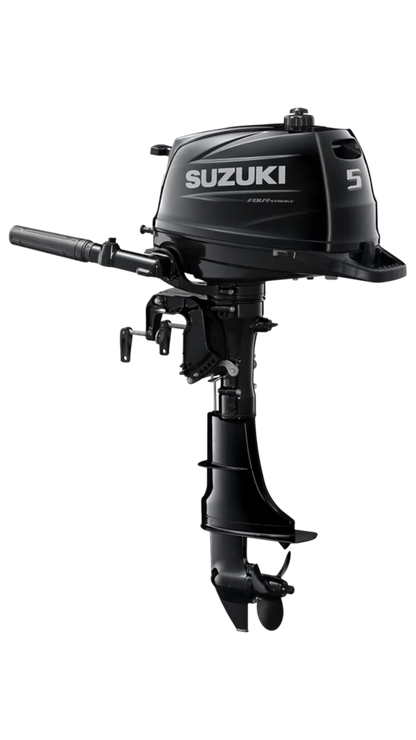

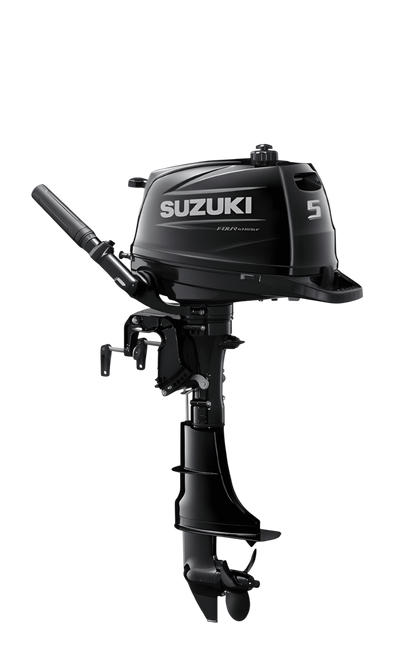

SUZUKI 5HP DF5AL LONG SHAFT OUTBOARD ENGINE
This compact and lightweight outboard is incredibly versatile, with class-leading technical innovation and a simple and effective ergonomic design.
LIGHTWEIGHT AND COMPACT
Compact dimensions and stylish design make this outboard genuinely portable and easy to operate.
The new fuel and lubricating systems mean you can store the outboard either on its port or starboard sides or front, without worrying about leakage or flooding.
EASY START-AFTER STORAGE
A new gravity feed fuel supply means you don't have to prime the fuel line before starting, even after long-term storage.
New and improved ergonomically designed carry handles allow for easy handling, transportation and use.
Engine noise on large boats can make it difficult to relax. Suzuki outboards run unbelievably quiet.
When you choose a Suzuki 4-Stroke outboard, we provide you with everything you need to get on the water. With the DF5A we include the following as standard:
- Kill cord
- Aluminium Propeller
- 5 year leisure warranty
- Free Datatag security marking with all Suzuki Marine insurance policies
- Digital Capacitor Discharge Ignition (CDI)
- Plastic, Built-in Large 1 Liter Fuel Tank
- Noise-Suppression Spark Plug Cap
- Overhead Valves (OHV)
- Over-Rev Limiter
- One-Piece Forged Crankshaft
- Shallow Water Drive (Two Position)
- Fresh Water Flush System
- Tilt Lock Pin
- Easy After-Storage Start
- Quiet Operation
- Offset Crankshaft
- Three-way Storage
- Highly Reliable Lubrication System
- New Tilt System
- Rubber-Mounted Tiller Handle
- 180˚ Engine Rotation (90˚ PORT, 90˚ STBD)
- Emergency Stop Switch
- Large Carrying Handle
- Steering Tension Adjuster
- Throttle Tension Adjuster
- Suzuki Anti - Corrosion System
- RCD Standards (P01)
- CARB Rating: 3-Star Ultra Low Emissions (4A) (P03)
|Recommended transom height:||508mm (20in)|
|Bore x Stroke:||60.4 x 48mm|
|Fuel Delivery System:||Carburettor|
|No. of Cylinders:||1|
|Full Throttle Operating Range:||4,500 - 5,500|
|Oil Pan Capacity:||0.7L|
|Fuel Tank Capacity:||Integral 1.0L|
|Ignition System:||Digital CDI|
|Alternator:||12V 6A (optional)|
|Engine Mounting:||Bushing Type|
|Exhaust:||Above Prop Exhaust|
