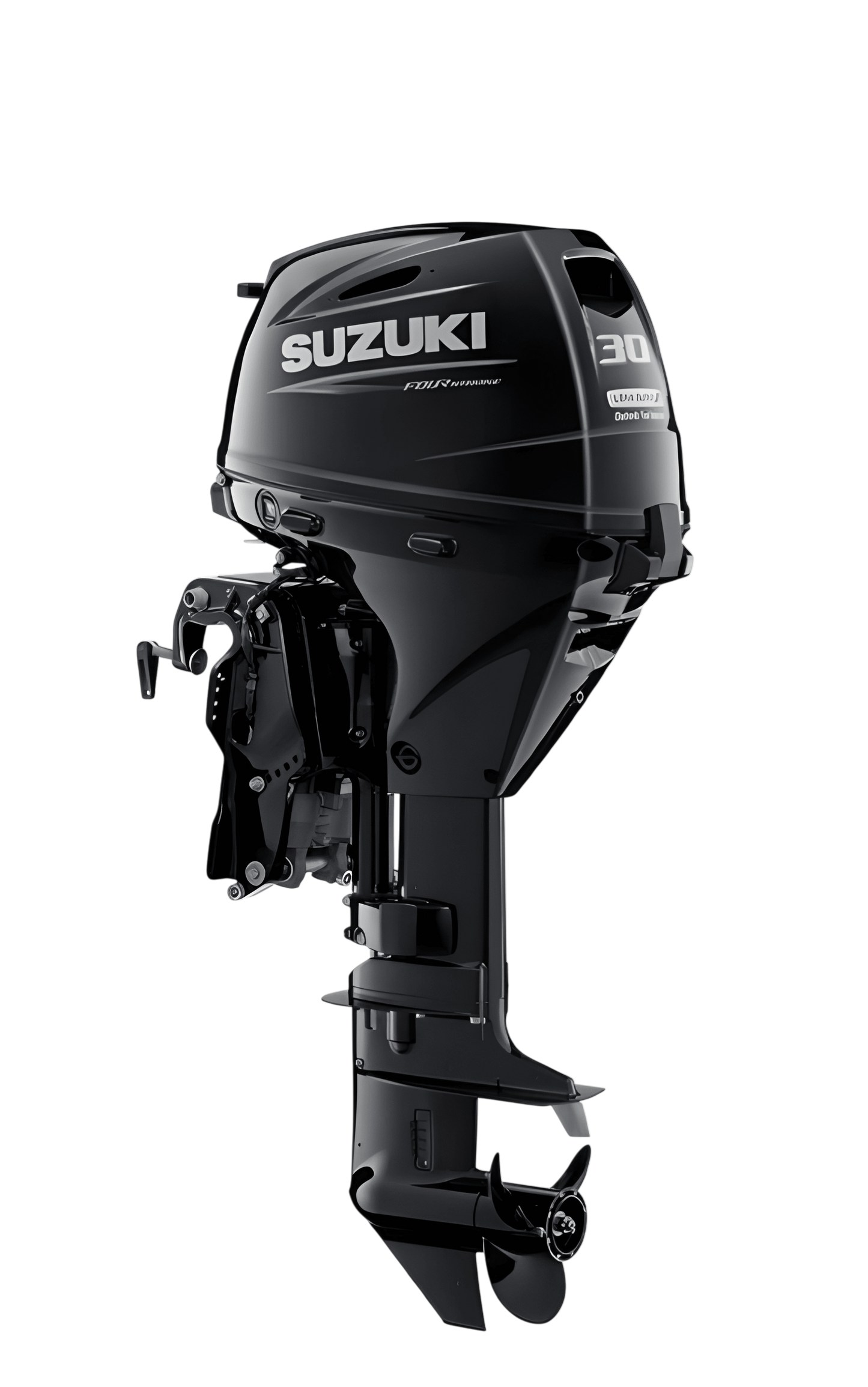

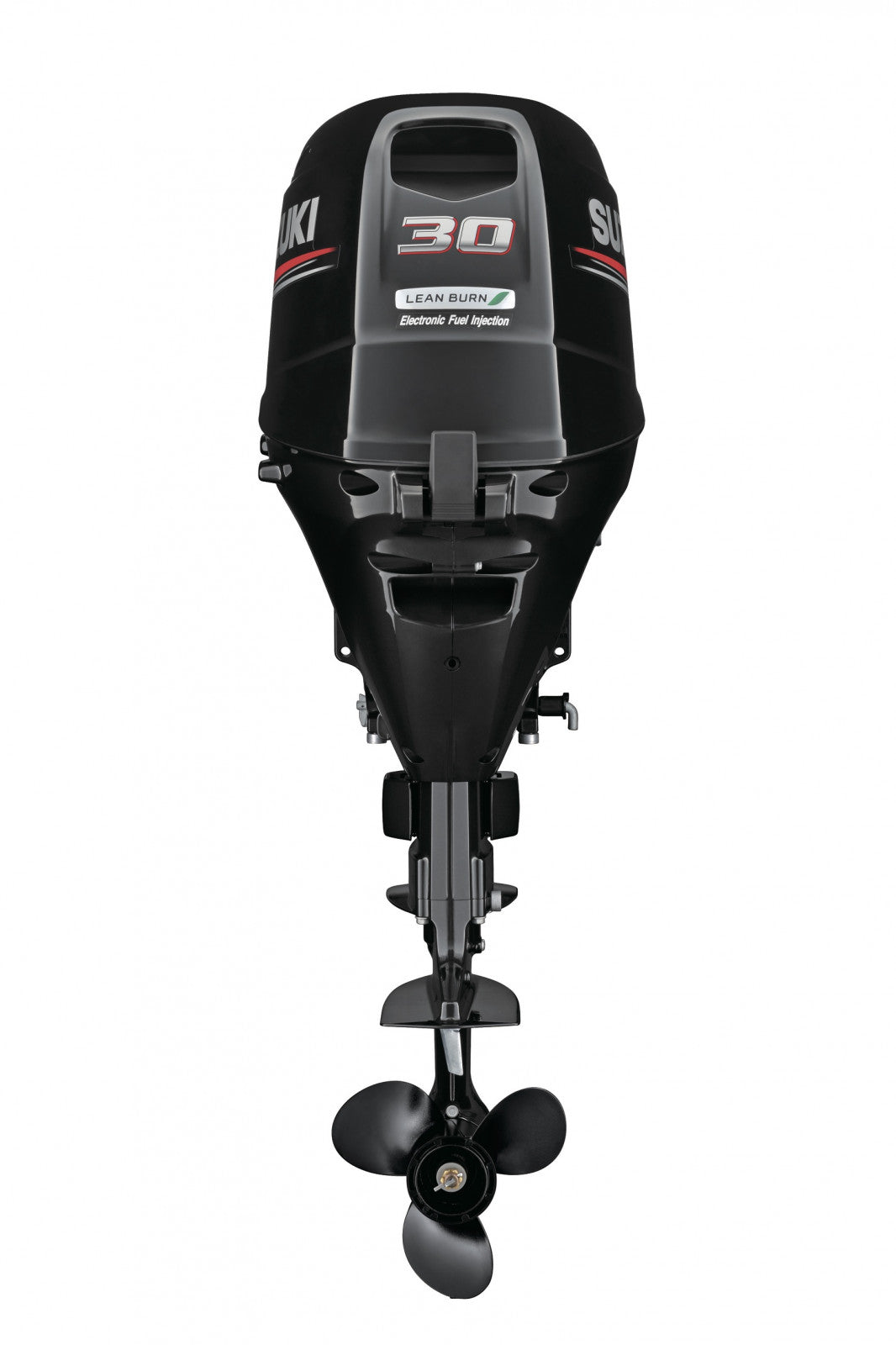

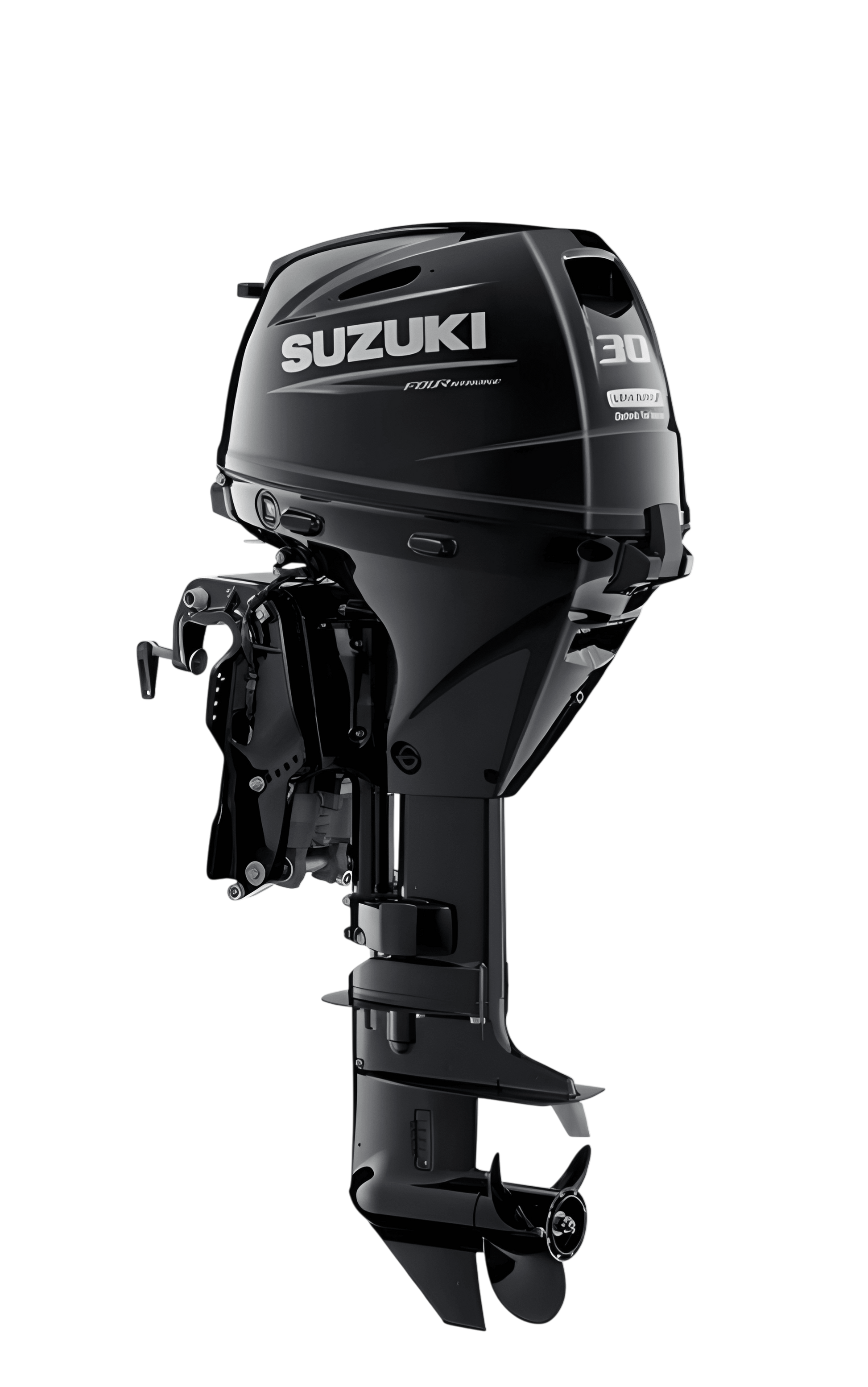

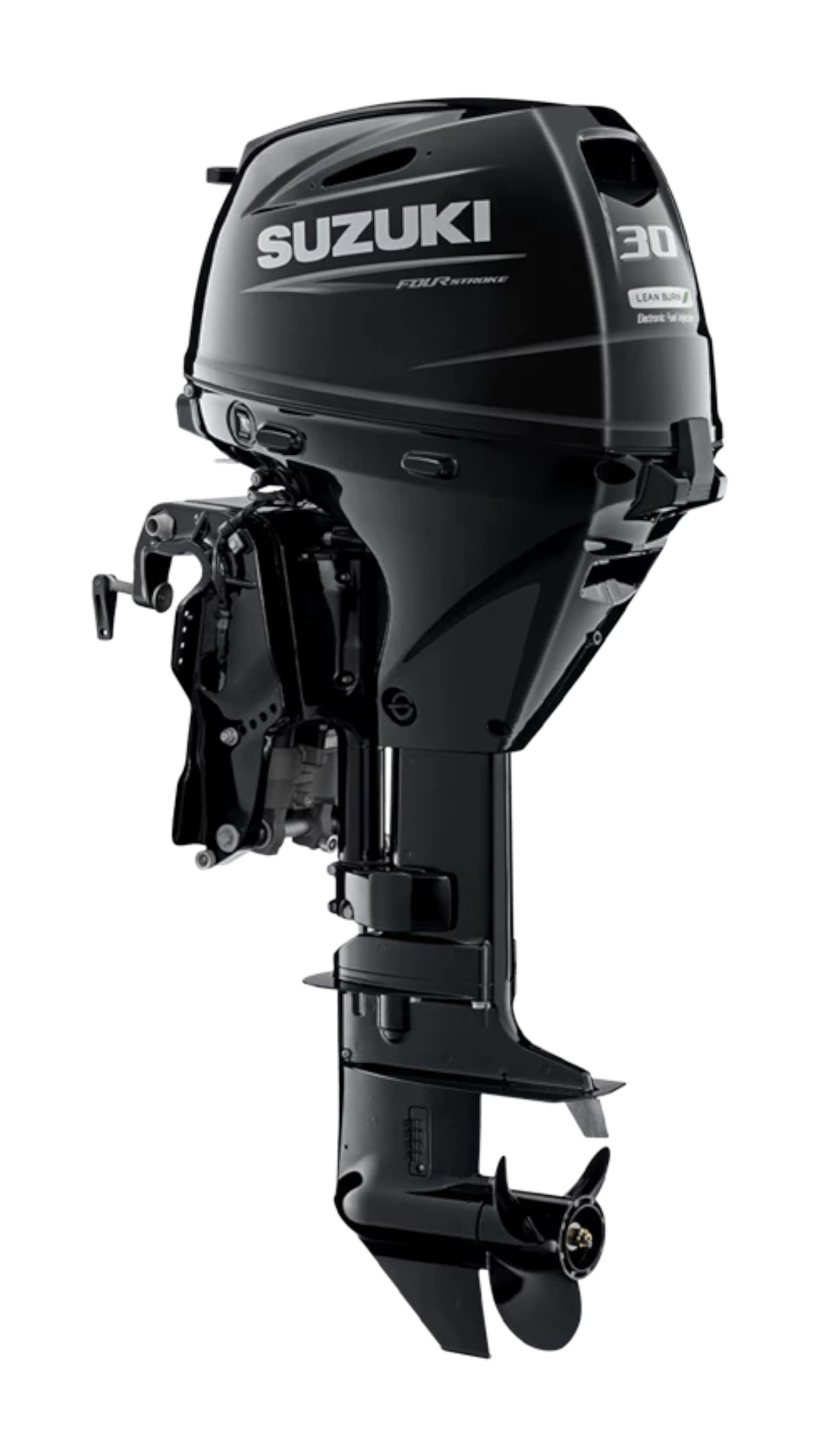

SUZUKI 30HP DF30ATL LONG SHAFT OUTBOARD ENGINE
High performance, lightweight, compact and low on fuel consumption. The DF30A is lightest in class with the largest reduction gear ratio.
When you choose a Suzuki 4-Stroke outboard, we provide you with everything you need to get on the water. With the DF30A we include the following as standard:
- Safety lanyard
- User manual
- Aluminium propeller
- 25 Litre external fuel tank
- Fuel line assembly
- Side mount control box
- 5 year leisure warranty / 2 year commercial warranty
- 2 year commercial warranty
Positioning the crankshaft slightly off-centre from the cylinder the lateral pressure on the cylinder wall is reduced resulting in a smoother piston movement which improves operating efficiency.
Largest reduction gear ratio in its class
A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.
Battery-less electronic fuel injection
Delivers quicker easier starts, smoother running and quick acceleration without the bulk and weight of a battery.
The cover design provides the direct intake system with a smoother, cooler flow of air boosting engine operating efficiency.
Lean Burn control system
Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
- Suzuki Lean Burn Control System
- Battery-Less Electronic Fuel Injection
- Built In Water/Fuel Separator
- Forged Aluminum Connecting Rods
- Steering Friction Adjusting Lever
- Remote Control Model Available (DF30AR, 30AT)
- Gas Assisted Tilt (DF30AQH)
- 3-Stage Baffle Chamber and Thru-Hub Exhaust
- Shift Lever Located in front of the engine
- Digital Capacitor Discharge Ignition (CDI)
- Fresh Water Flush Port
- Easy Oil Drain Plug
- One-Piece Forged Crankshaft
- RCD Standards (P01) CARB Rating: 3-Star Ultra-Low Emission (P03)
- Suzuki Anti - Corrosion System
|Recommended transom height:||508mm (20in)|
|Bore x Stroke:||60.4 x 57.0mm|
|Propeller Selection (pitch):||9" - 15"|
|Engine Type:||4-Stroke OHC|
|Fuel Delivery System:||Battery-less Electronic Fuel Injection|
|No. of Cylinders:||3|
|Full Throttle Operating Range:||5,300 - 6,300|
|Oil Pan Capacity:||1.5L|
|Fuel Tank Capacity:||25L|
|Ignition System:||Digital CDI|
|Engine Mounting:||Shear Mount|
|Trim Method:||Power Trim & Tilt|
|Exhaust:||Through prop Hub Exhaust|
