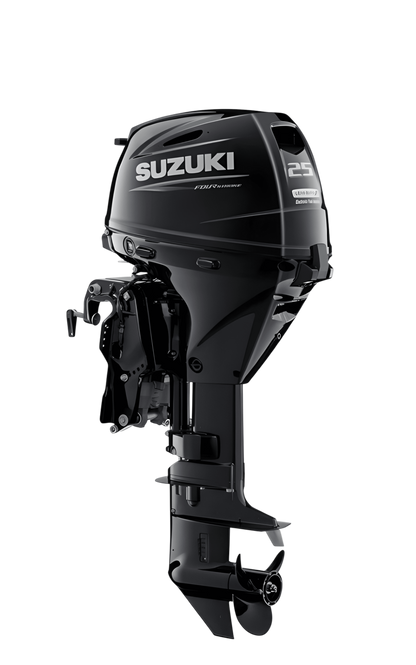

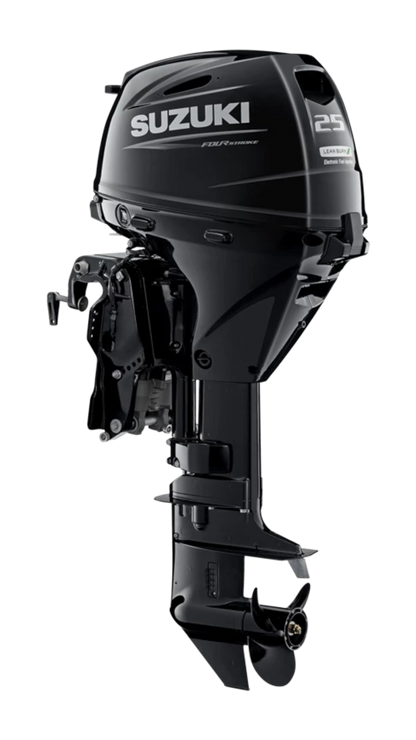

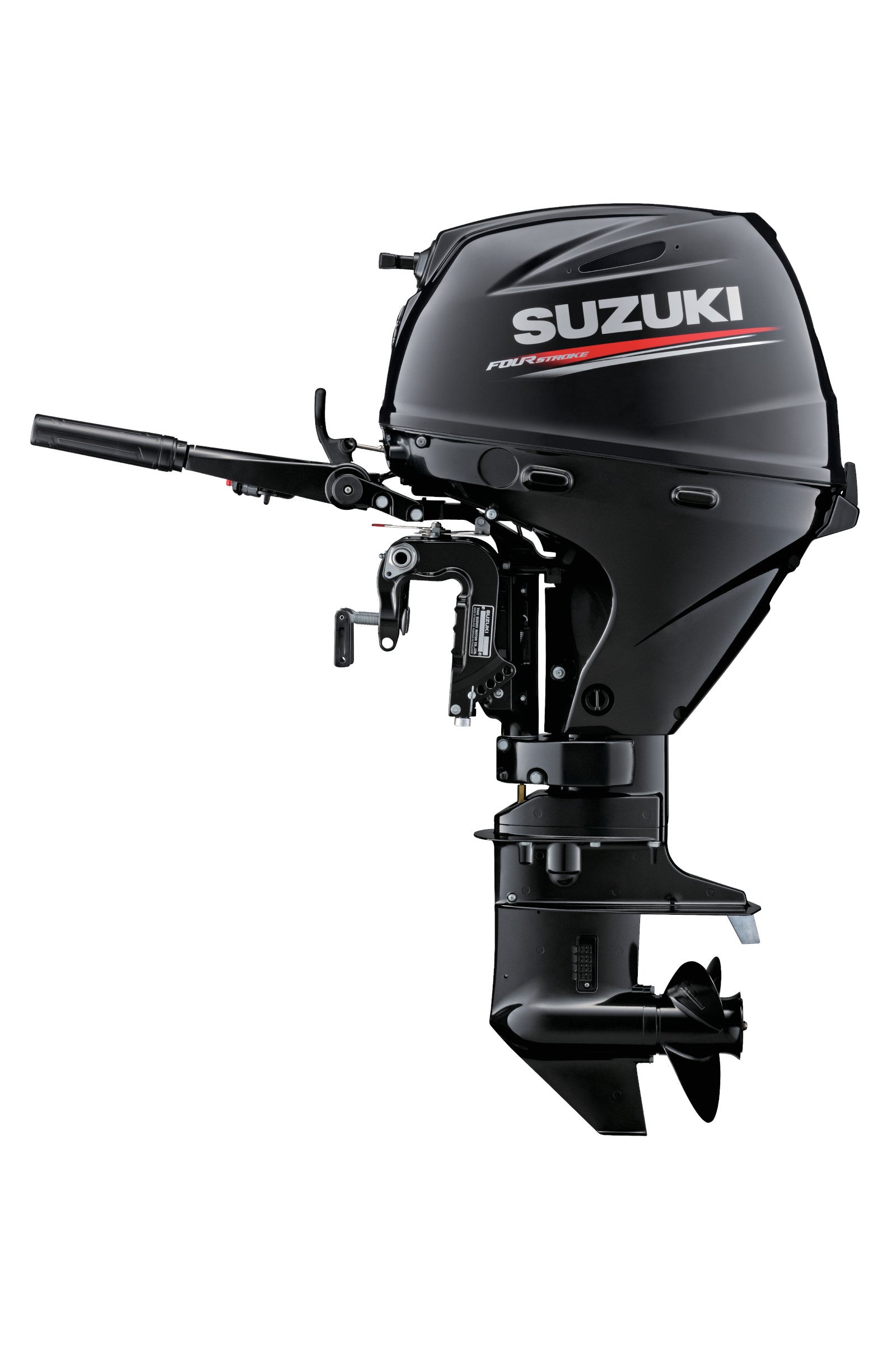

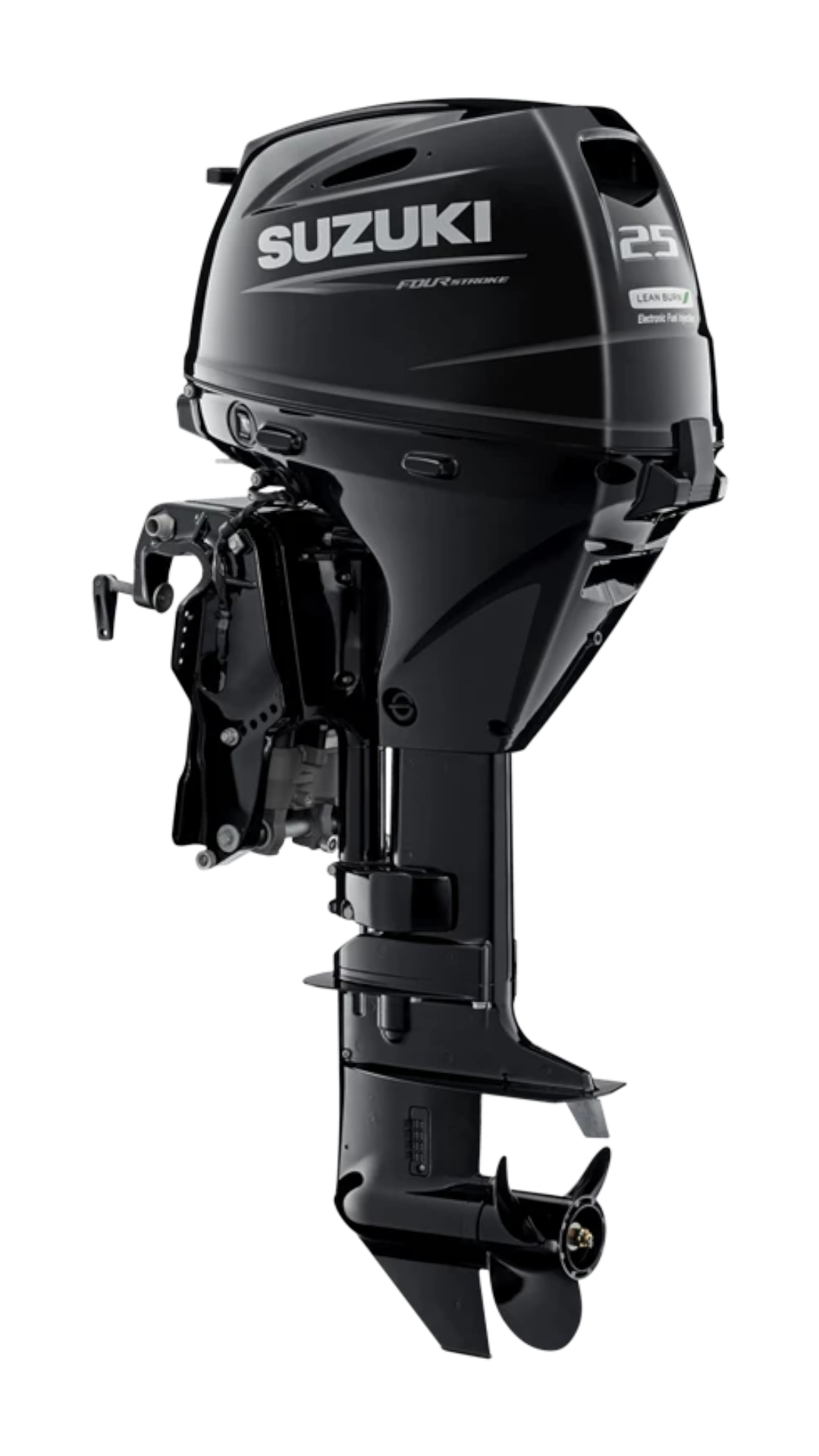

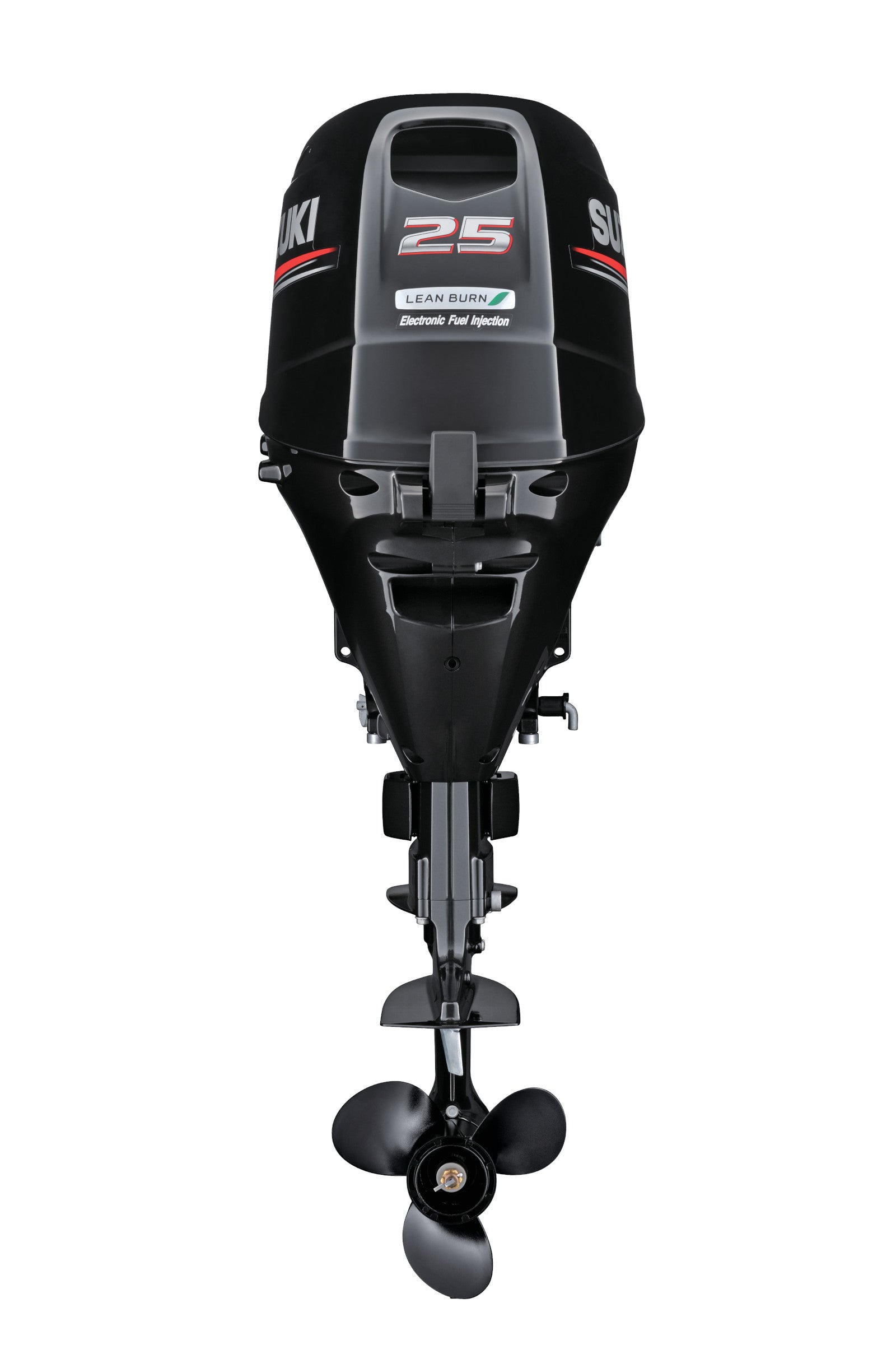

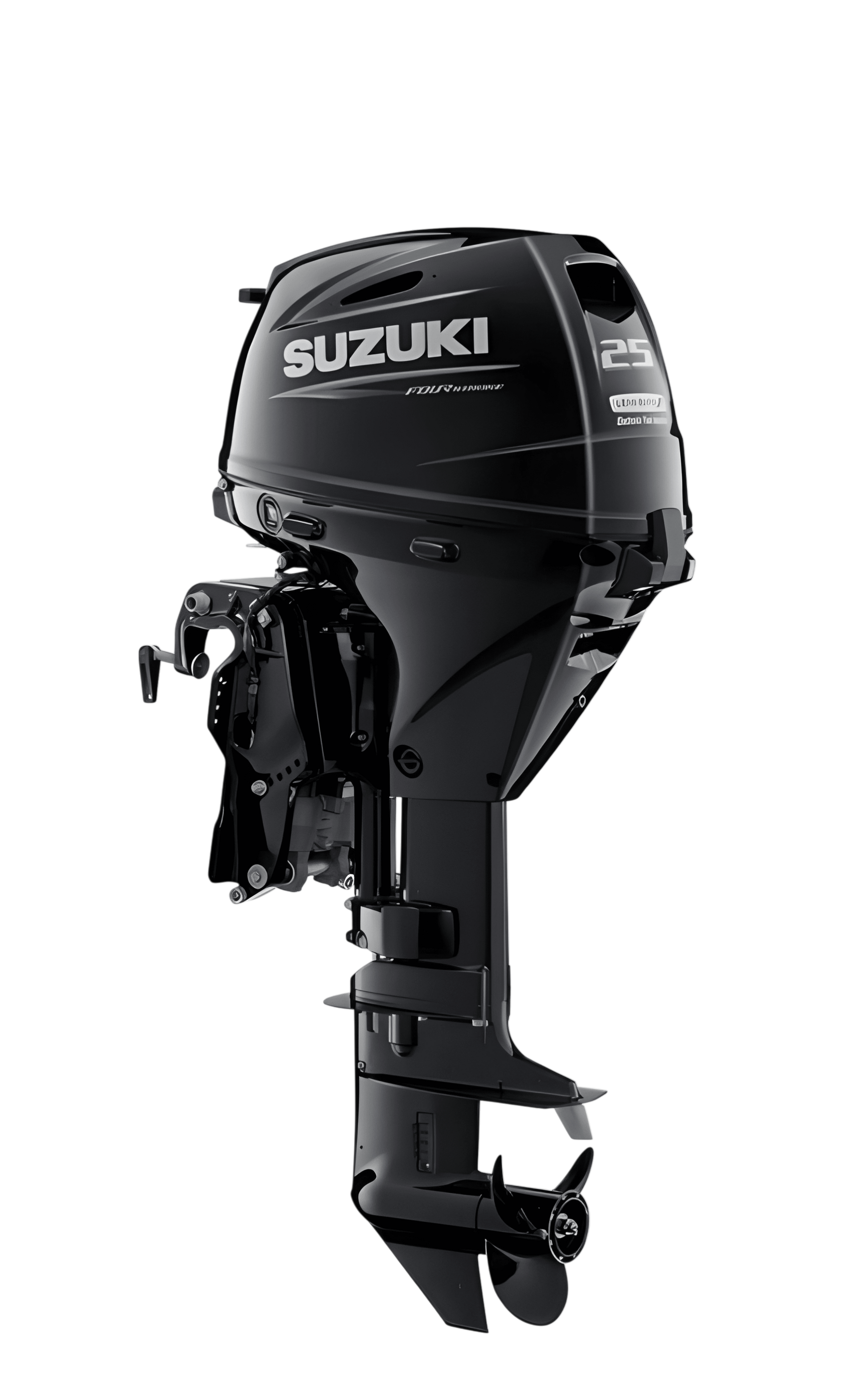

Suzuki DF25hp Outboard
Suzuki DF25hp Outboard
You can have it all - lightweight, compact and low on fuel consumption so you can enjoy fishing, high-speed thrills, cruising, and fun with friends and family.
When you choose a Suzuki 4-Stroke outboard, we provide you with everything you need to get on the water. With the DF25A we include the following as standard:
- Safety lanyard
- User manual
- Aluminium propeller
- 25 Litre external fuel tank
- Fuel line assembly
- 5 year leisure warranty
- 2 year commercial warranty
Offset crankshaft
Positioning the crankshaft slightly off-centre from the cylinder reduces the lateral pressure on the cylinder wall resulting in a smoother piston movement, which improves operating efficiency.
Battery-less electronic fuel injection
Delivers quicker easier starts, smoother running and quick acceleration without the bulk and weight of a battery.
Direct intake
The cover design provides the direct intake system with a smoother, cooler flow of air boosting engine operating efficiency.
Lean Burn control system
Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy.
Largest reduction gear ratio in its class
A large reduction gear ratio leads to powerful torque for quick acceleration and great top-end speed.
DETAILS
- Suzuki Lean Burn Control System
- Battery-Less Electronic Fuel Injection
- Built In Water/Fuel Separator
- Forged Aluminum Connecting Rods
- Steering Friction Adjusting Lever
- Remote Control Model Available 25AR, 25AT)
- Gas Assisted Tilt (25AQH)
- 3-Stage Baffle Chamber and Thru-Hub Exhaust
- Shift Lever Located in front of the engine
- Digital Capacitor Discharge Ignition (CDI)
- Fresh Water Flush Port
- Easy Oil Drain Plug
- One-Piece Forged Crankshaft
- RCD Standards (P01) CARB Rating: 3-Star Ultra-Low Emission (P03)
- Suzuki Anti - Corrosion System
SPECIFICATIONS
Recommended transom height: | 508mm (20in) |
Weight: | 63.0kg |
Bore x Stroke: | 60.4 x 57.0mm |
Propeller Selection (pitch): | 9" - 15" |
Starting System: | Manual or Electric |
Engine Type: | 4-Stroke OHC |
Fuel Delivery System: | Battery-less Electronic Fuel Injection |
No. of Cylinders: | 3 |
Piston Displacement: | 490cc |
Maximum Output: | 18.4KW |
Full Throttle Operating Range: | 5,000 - 6,000 |
Steering: | Tiller or Remore |
Oil Pan Capacity: | 1.5L |
Fuel Tank Capacity | 25L |
Ignition System: | Digital CDI |
Alternator: | 12V 14A |
Engine Mounting: | Shear Mount |
Trim Method: | Manual or Power |
Gear Ratio: | 2.09:1 |
Gear Shift: | F-N-R |
Exhaust: | Through-prop Hub Exhaust |
