ORKNEY

522

522

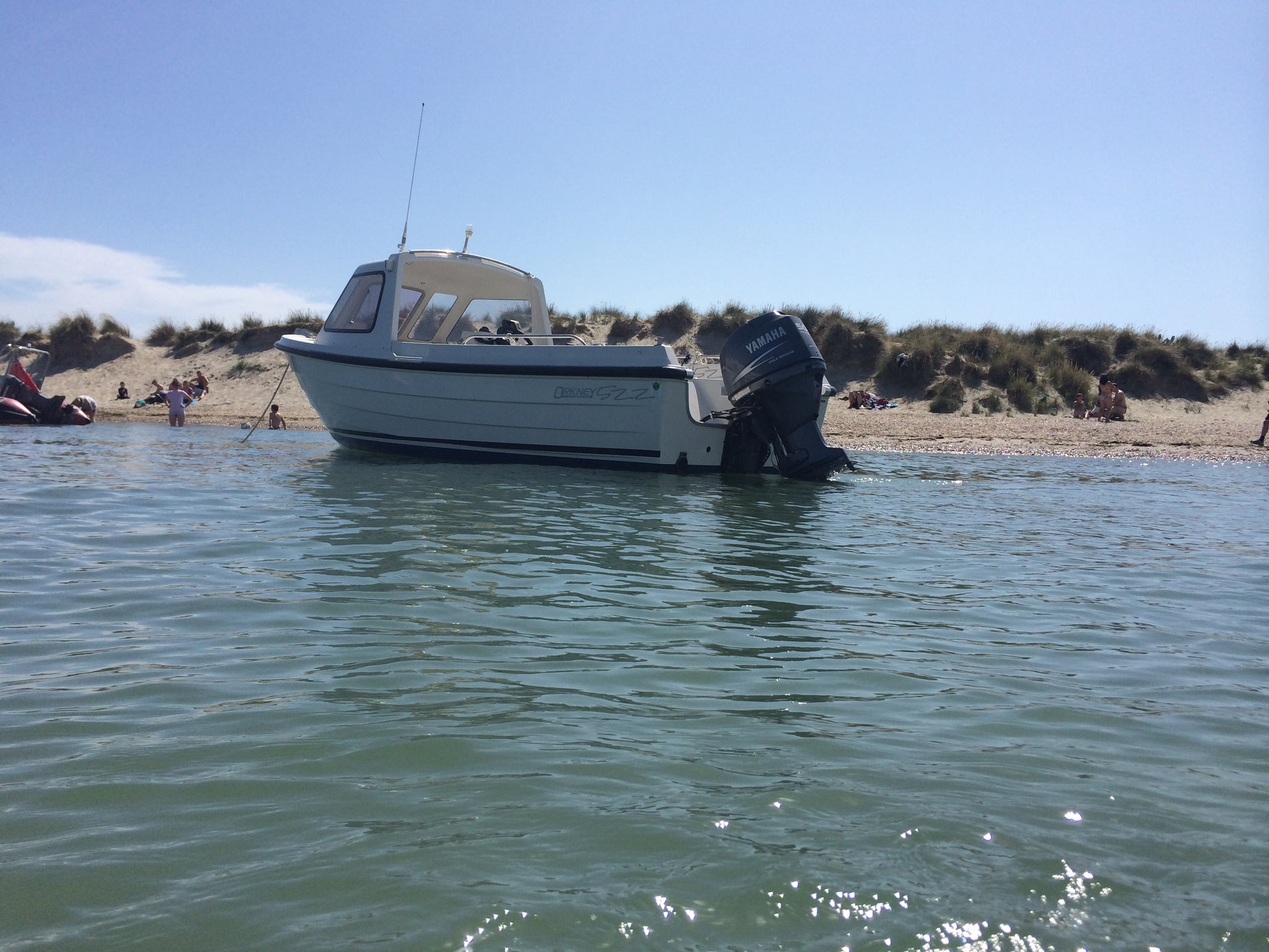

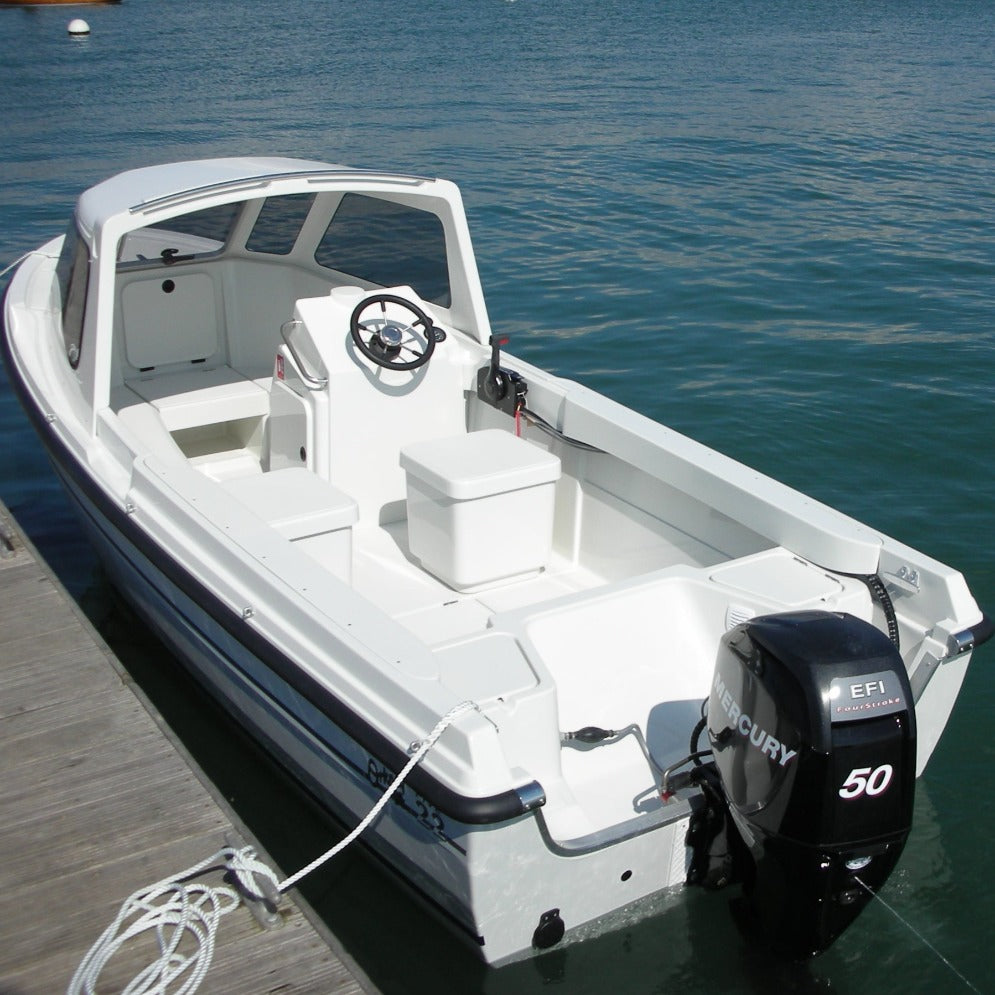

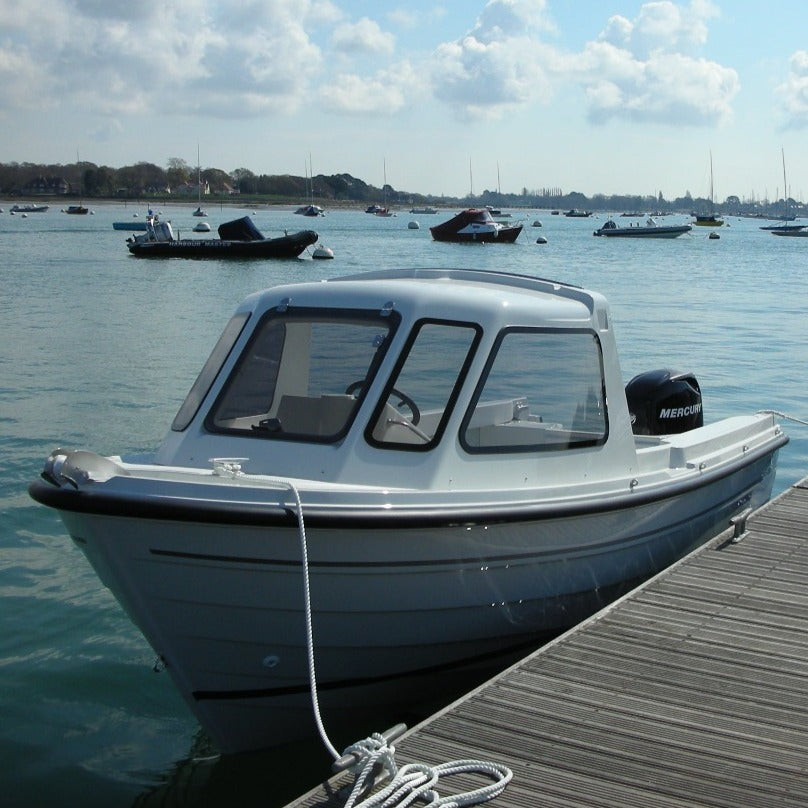

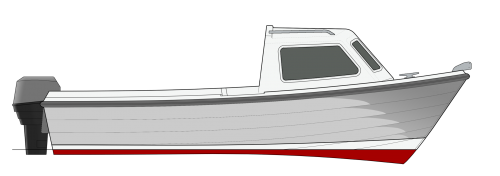

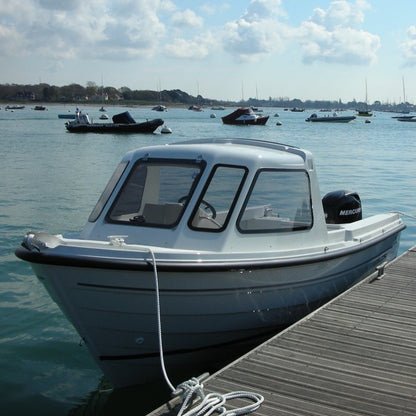

The 522 is the perfect choice for those seeking a fishing boat that is tough, safe, and versatile. The easily driven hull lines ensure superior performance and excellent economy with modest-sized outboards, whilst the deep forefoot and modified V sections give a dry and comfortable ride in a seaway.

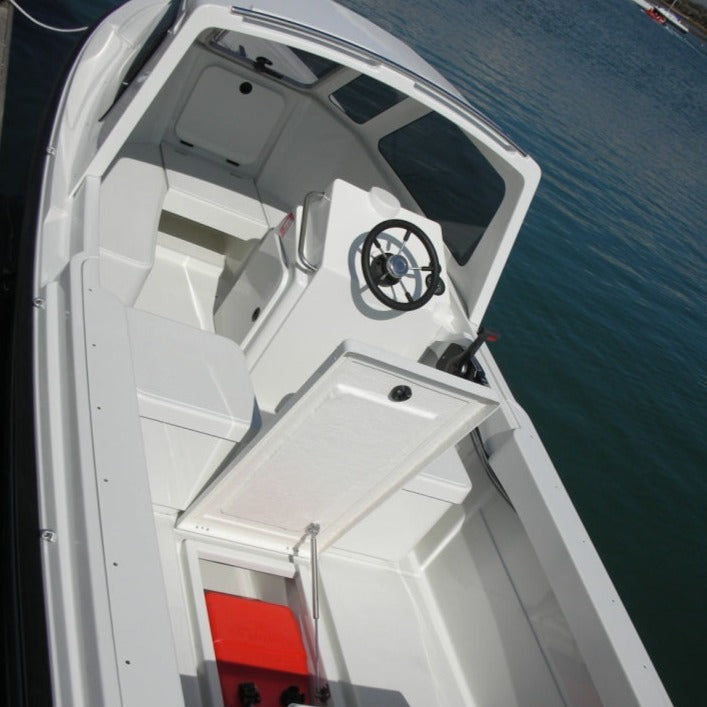

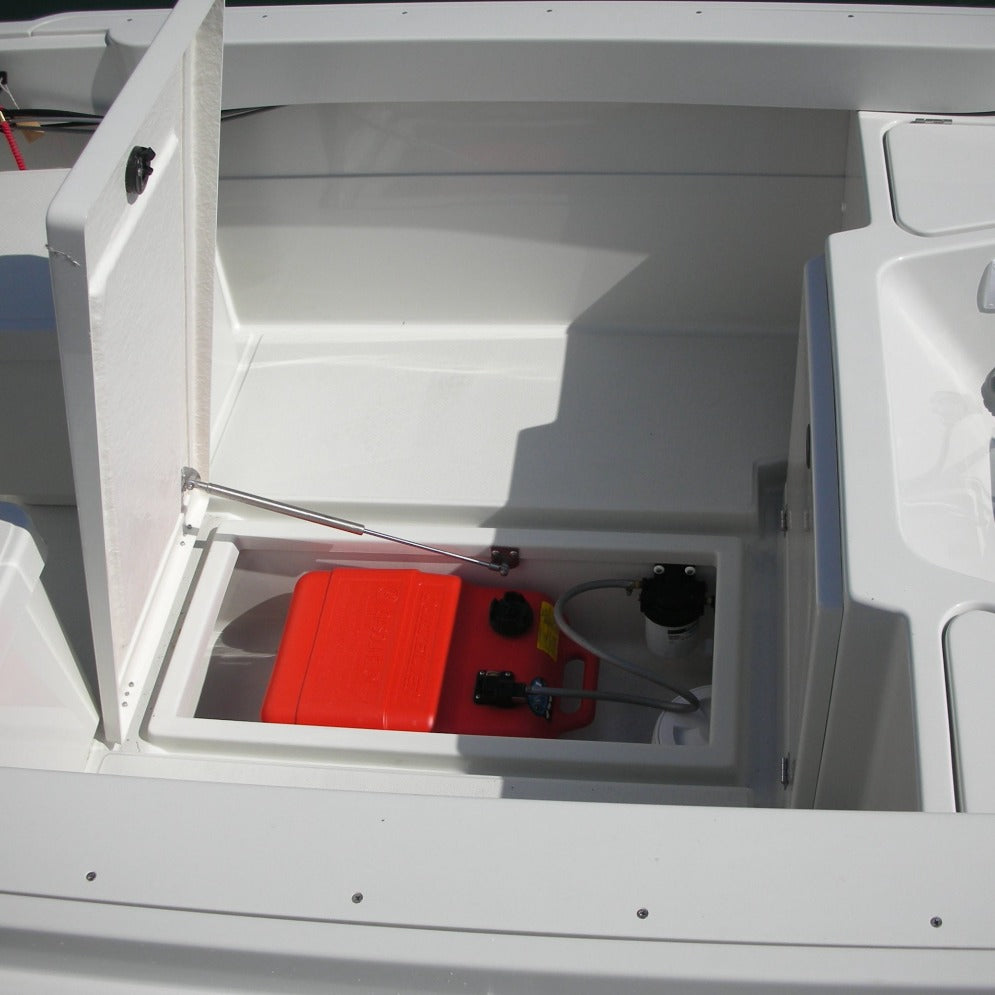

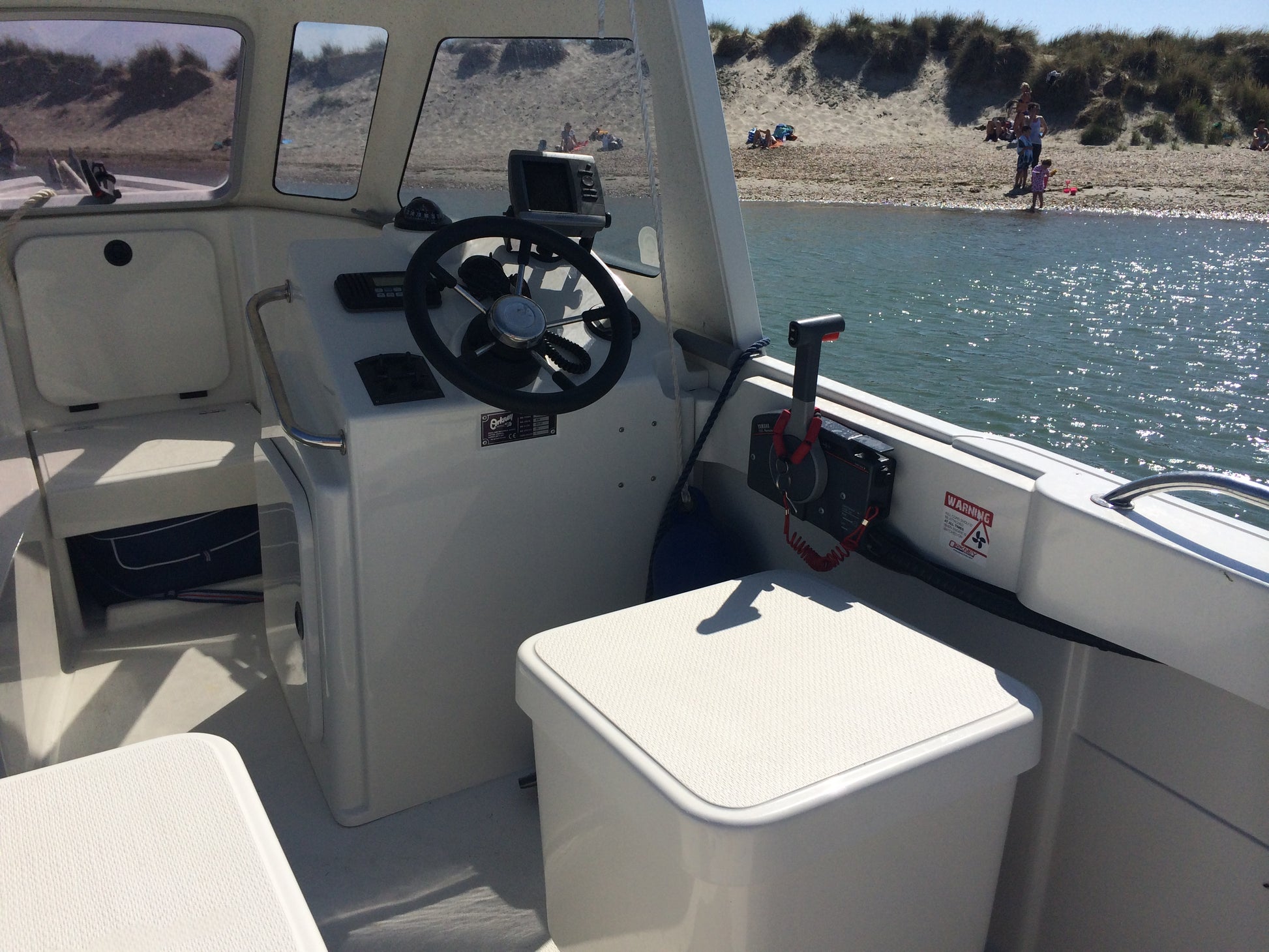

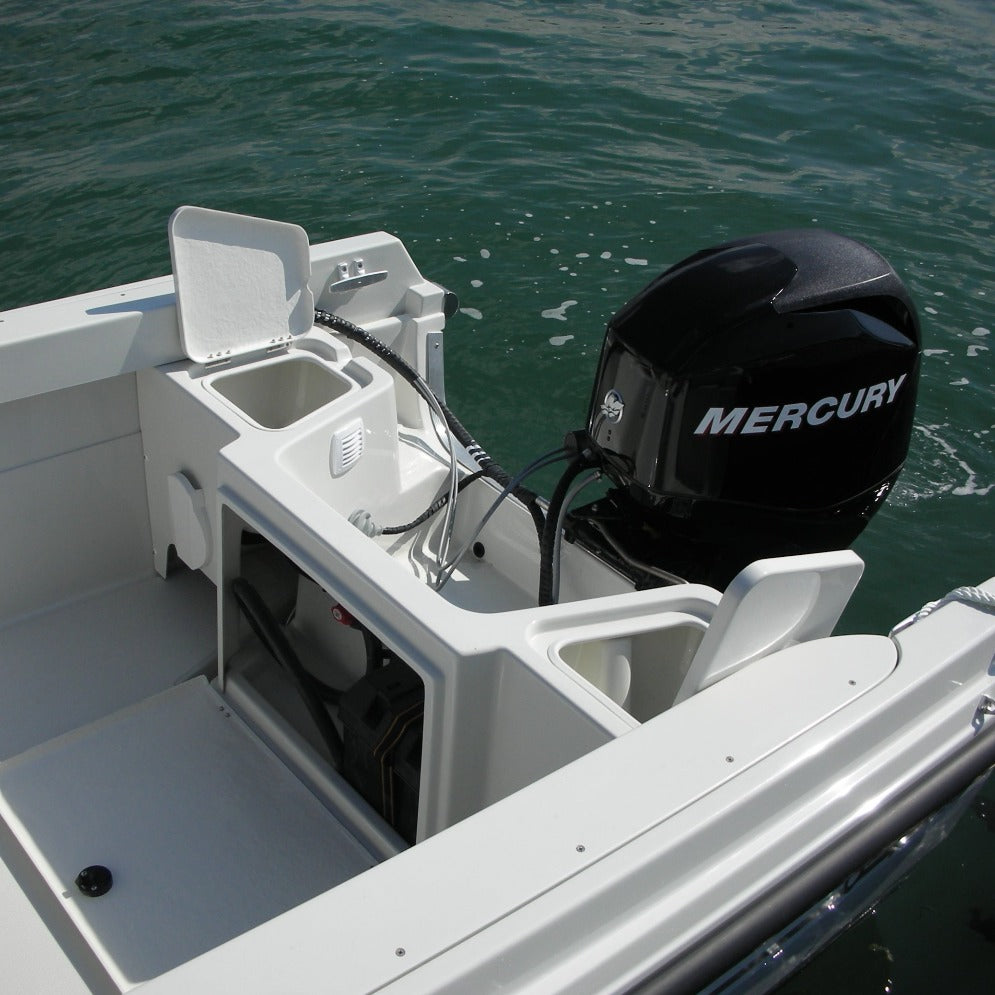

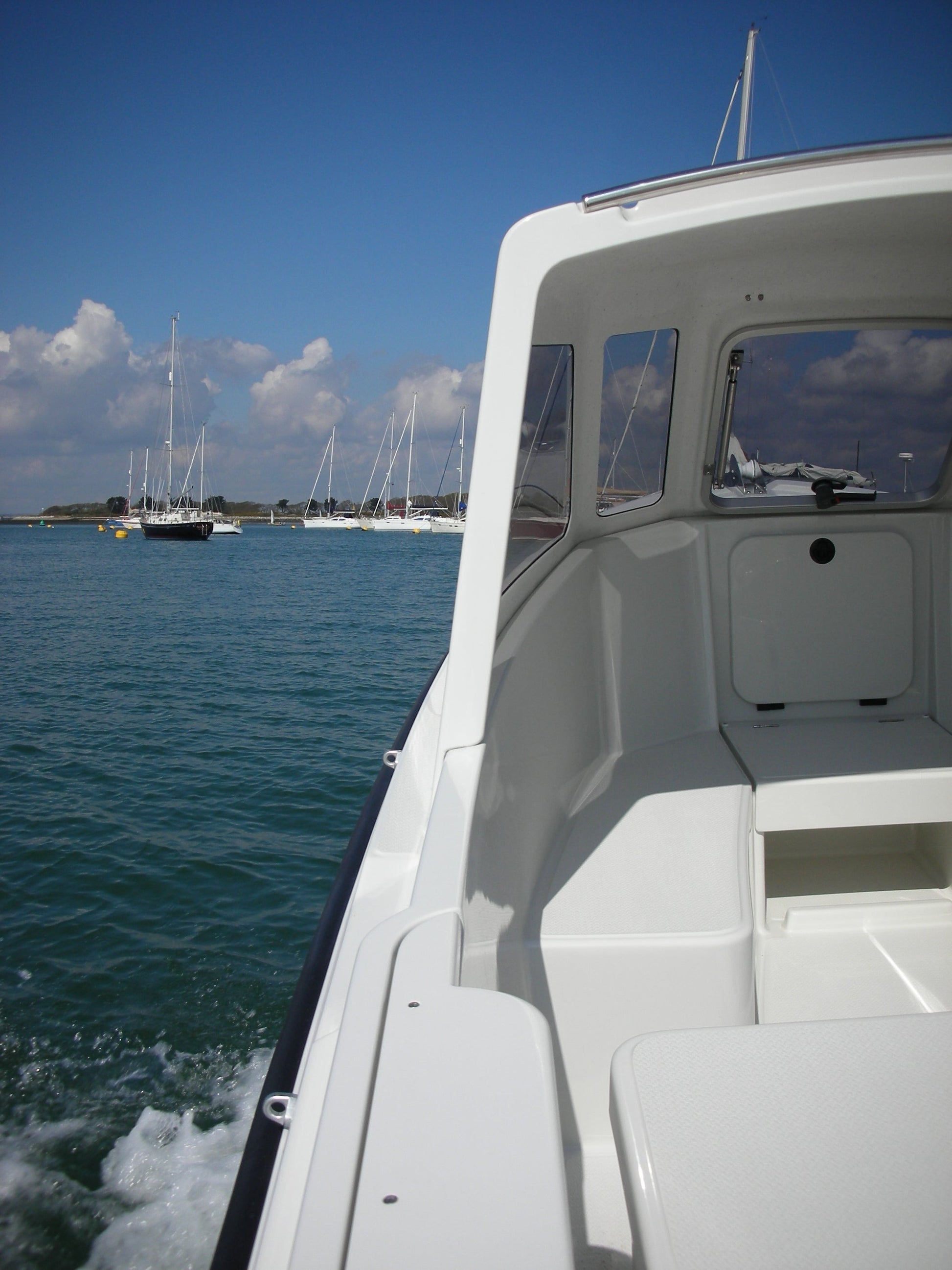

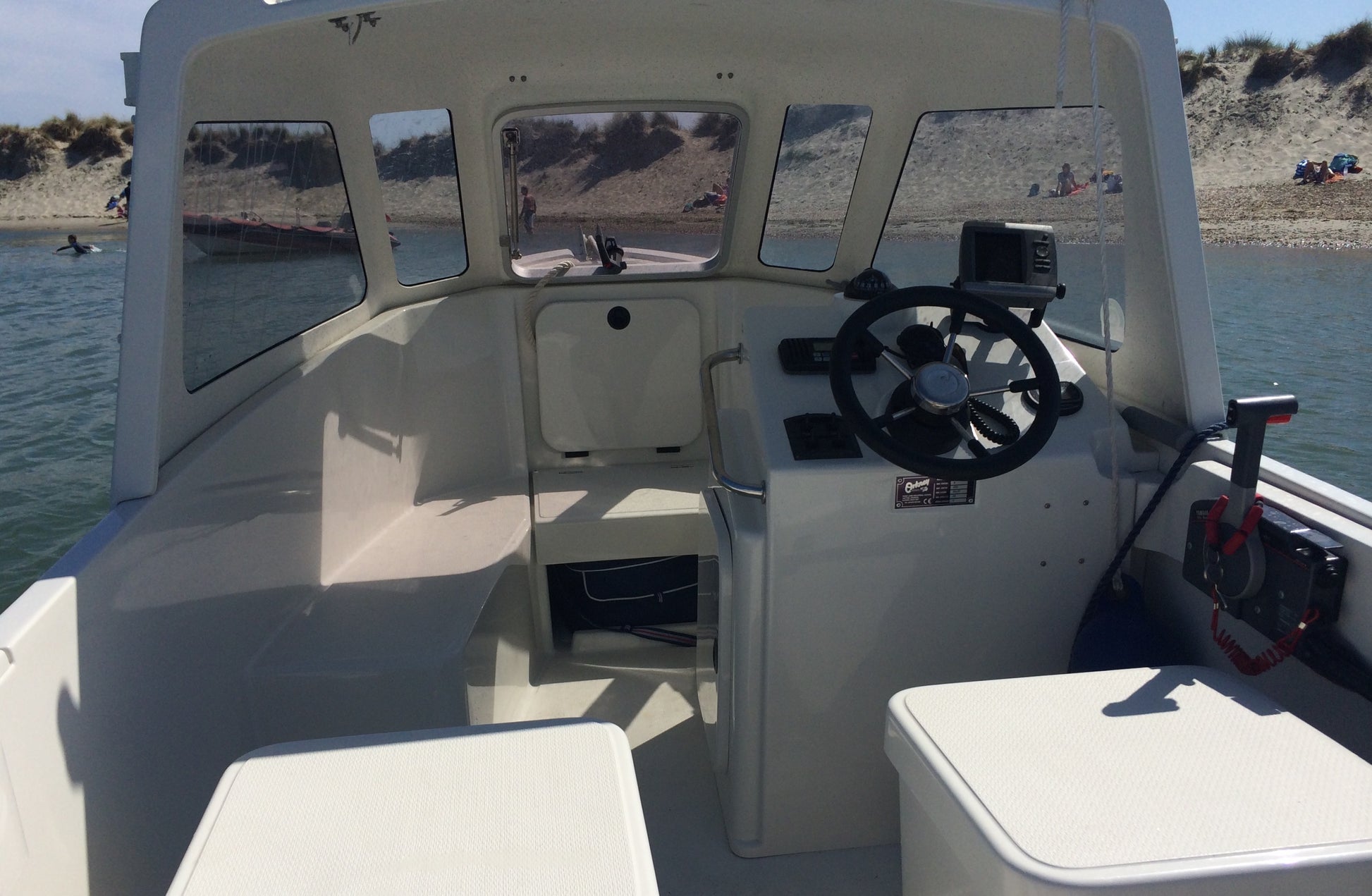

The deep self-draining cockpit and stable hull form inspire confidence when cruising offshore as do the solid sensibly sized deck fittings and moulded in non-slip surfaces. Other features include no feedback steering, under floor vented fuel locker with a gas strutted lid, battery stowage with a hinged lid and inset coamings combined with 26” interior freeboard plus plenty of uncluttered cockpit space.

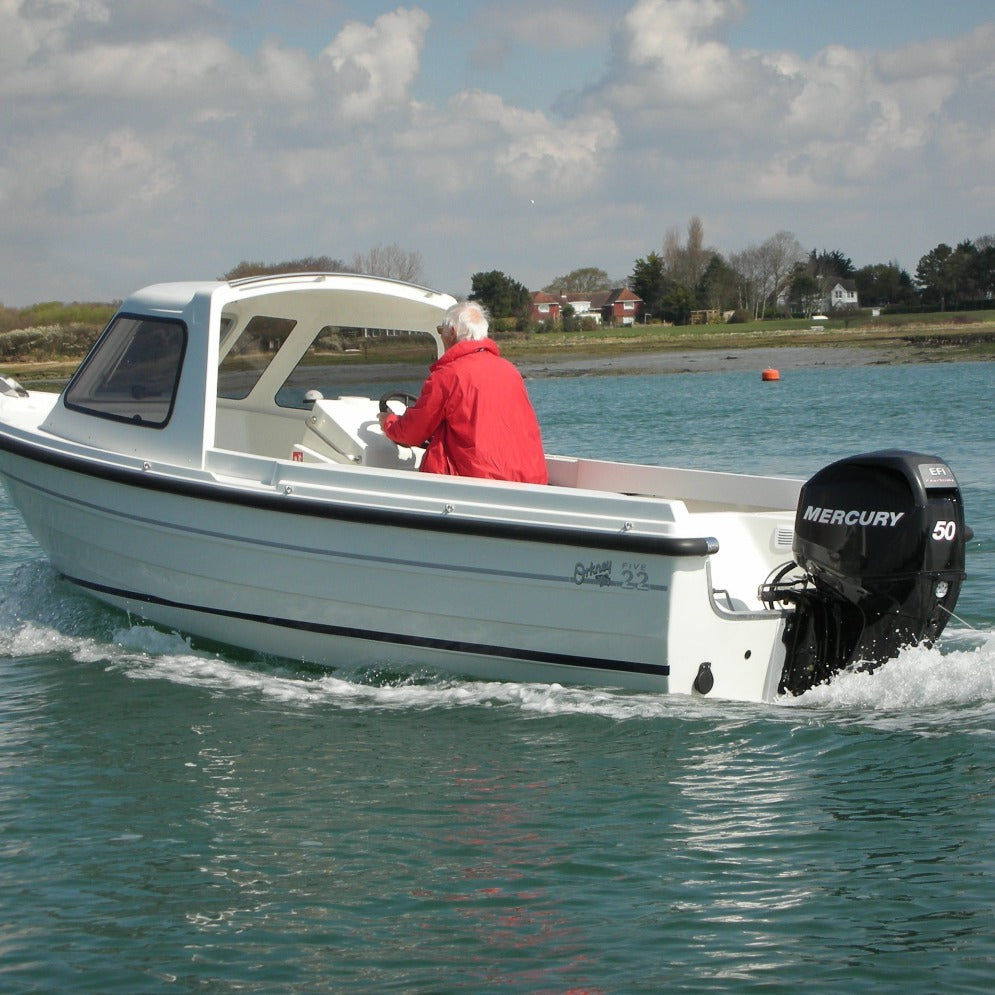

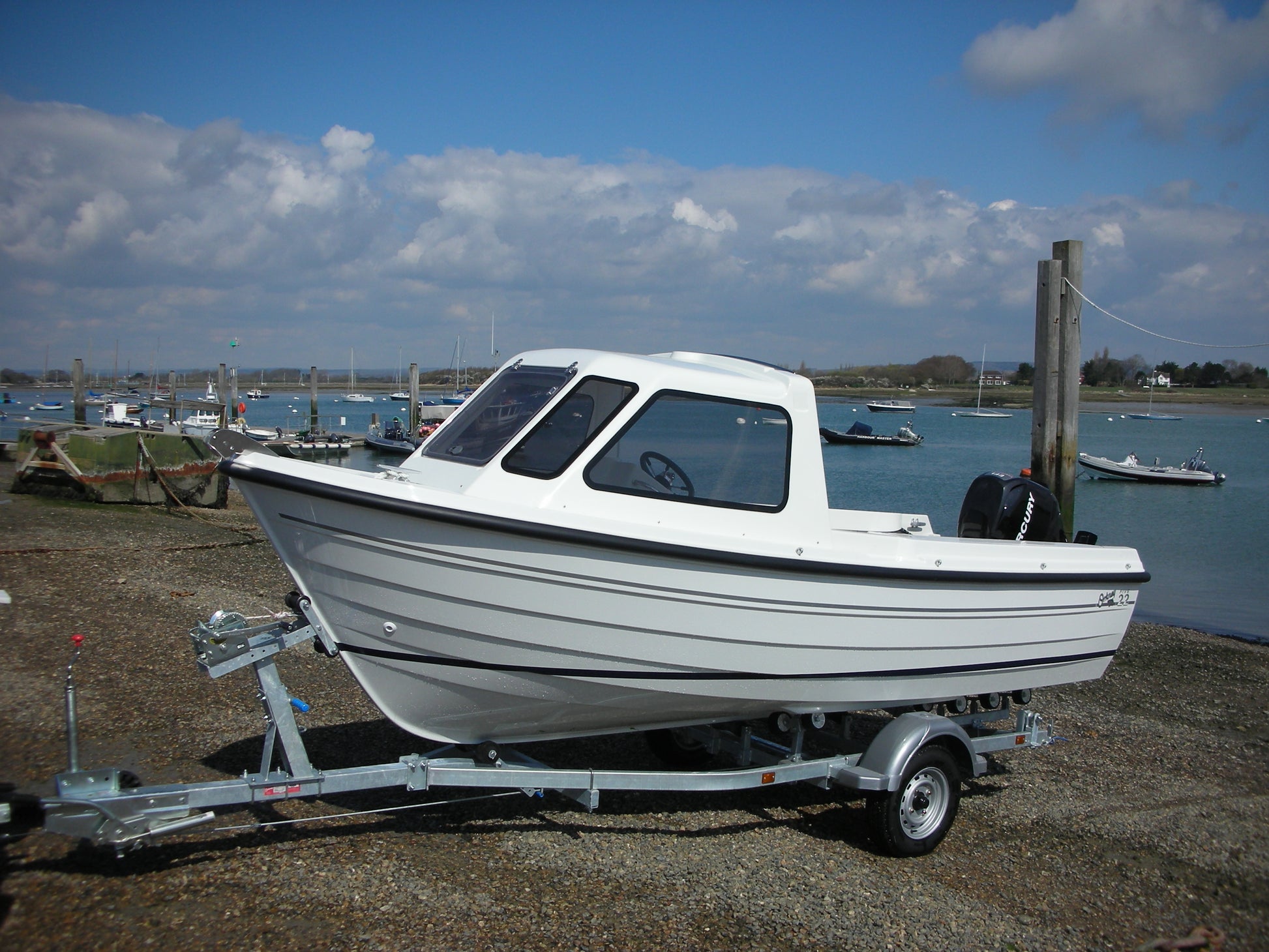

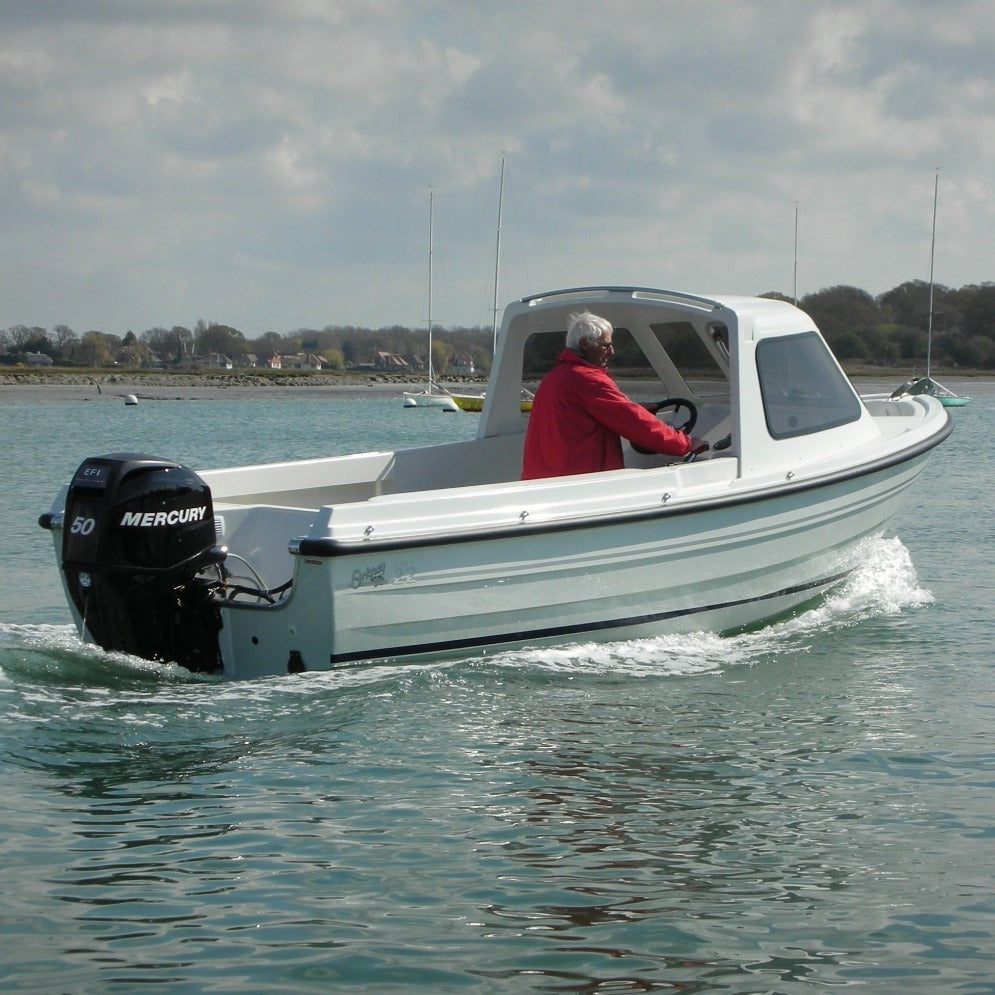

Overall dimensions are compact enough to make the 522 simple to park on the drive or in the garden. With the optional Orkney multi-roller trailer, launching and recovery is a simple single-handed operation. With speeds of up to 26 knots and superb sea-keeping characteristics, the 522 is hard to beat the ideal angling boat

Upgrade to Vanguard package available

LOA
17'1" 5.2m

Beam
6'7" 2m

Hull Weight
1200 lbs 545 kg

Max HP
Maximum 60hp Long shaft

Design Speed
Max design speed 26 knots / Optimum design speed 17 Knots

Max Persons
6

Max Load
630 kg

Design Category
C

Performance Indicator
20 hp11 knots
40 hp20 knots
60 hp26 knots
