Orkney Boats

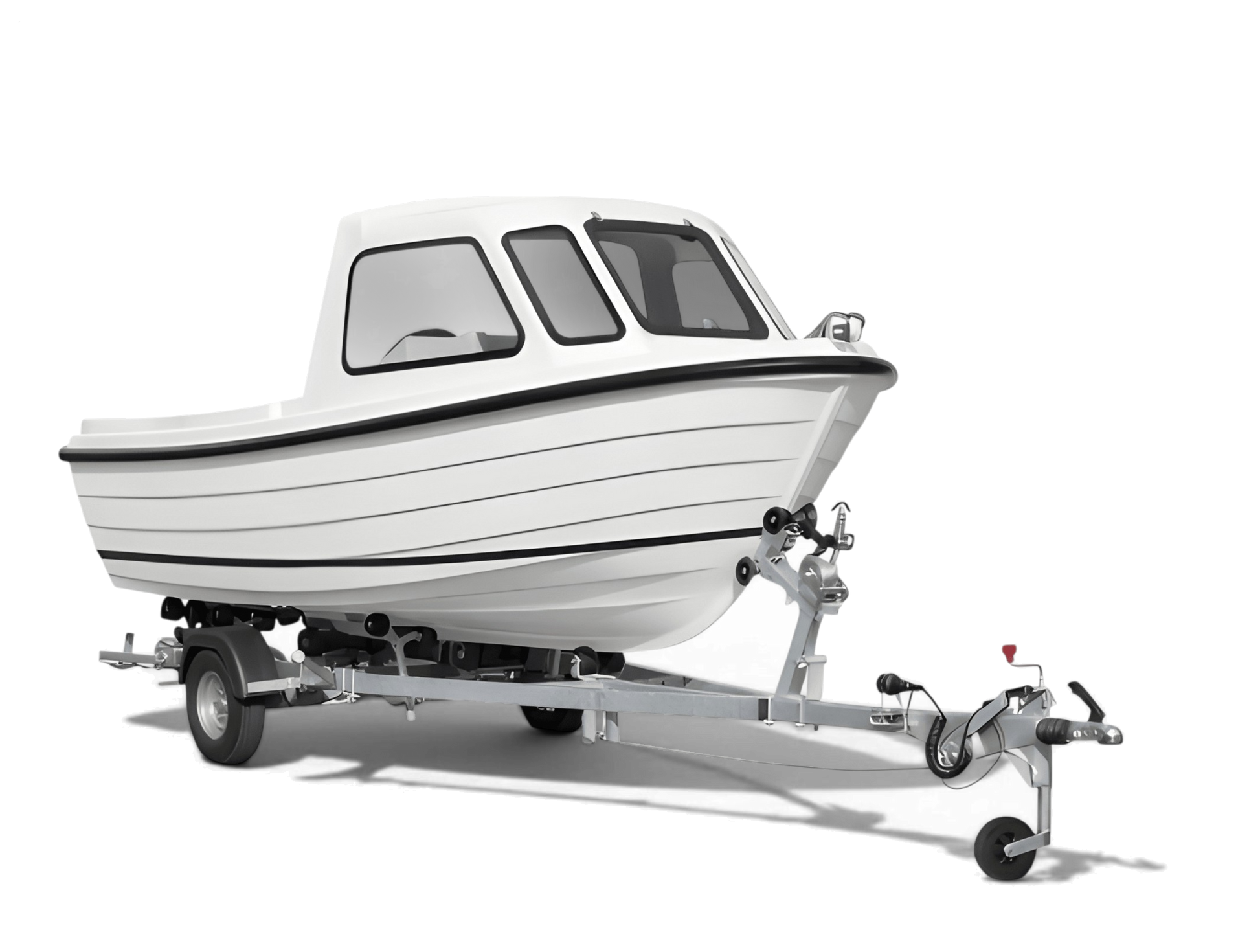

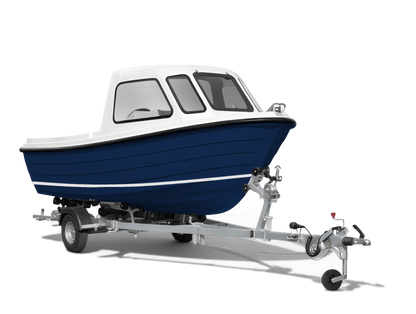

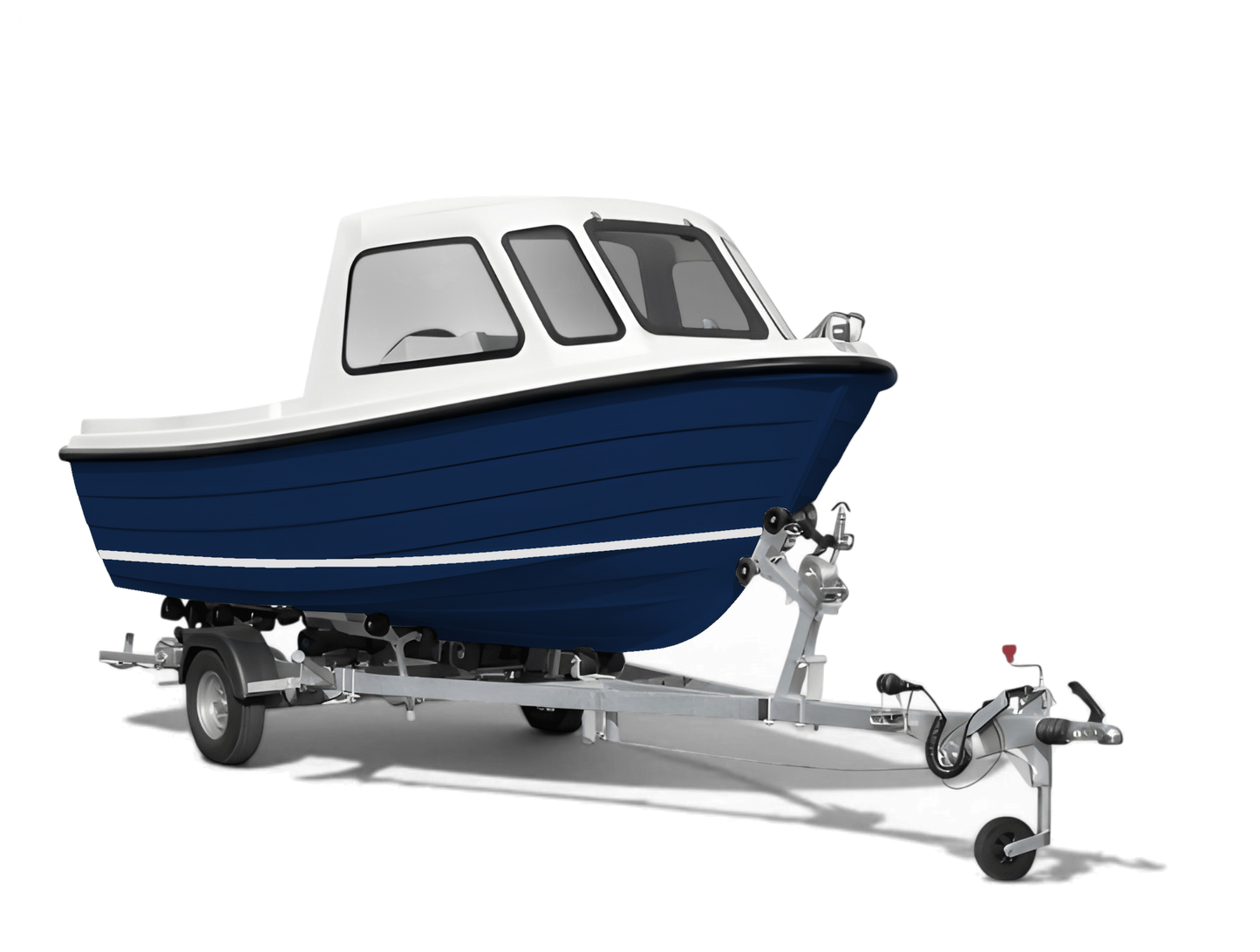

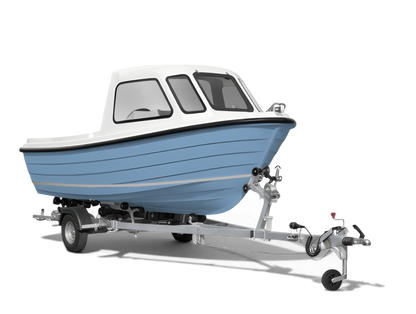

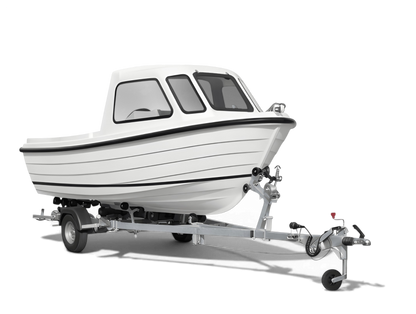

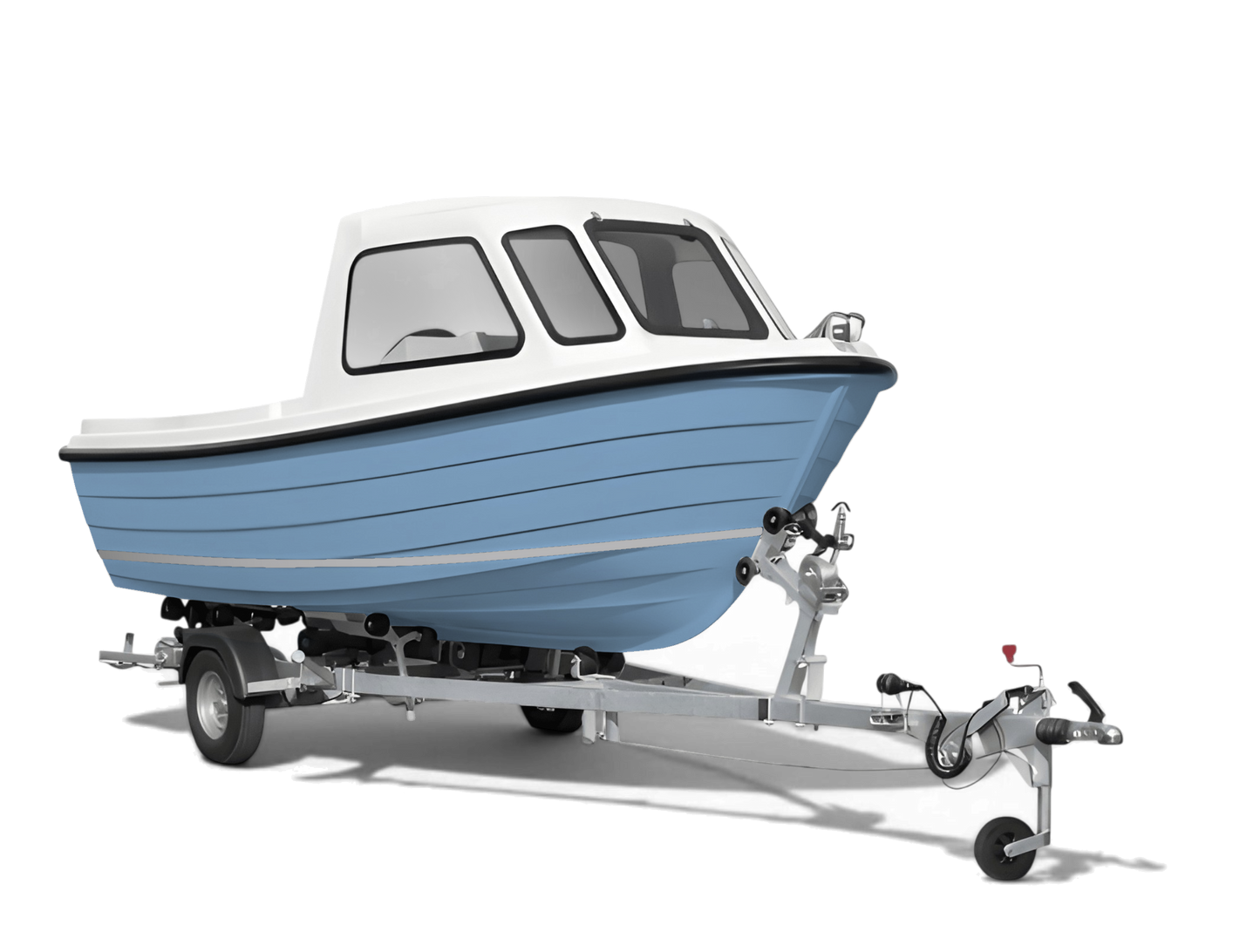

452
452
Whilst compact and light enough to be towed behind a family car on an unbraked trailer, the 452 is no lightweight when it comes to seakeeping.
The Nelson influenced hull design gives sure footed handling in testing conditions.
The pronounced V in the flared forward sections ensures a soft ride and plenty of beam aft combined with moderate V make for stability under way and at rest. The monocoque deck is bonded to the hull and backbone resulting in a rigid high strength to weight structure.
There is a solid and practical steering console with stowage under and plenty of space for electronics. The aft seats provide stowage for two fuel tanks and between them there is a neat semi concealed plinth for the battery. Launching and recovery is simple and hassle free.
Specifications:
LOA
14'10" 4.52m
Beam
6'0" 1.83m
Hull weight
805 lbs / 365 kg
Maximum horsepower engine
30hp (Long shaft)
Design speed
Max design speed 23 knots
Optimum design speed 16 Knots
Max persons
5
Max load
460 kg
Design category
C
Performance Indicator
15hp - 10 knots
20hp - 18 knots
30hp - 23 knots
