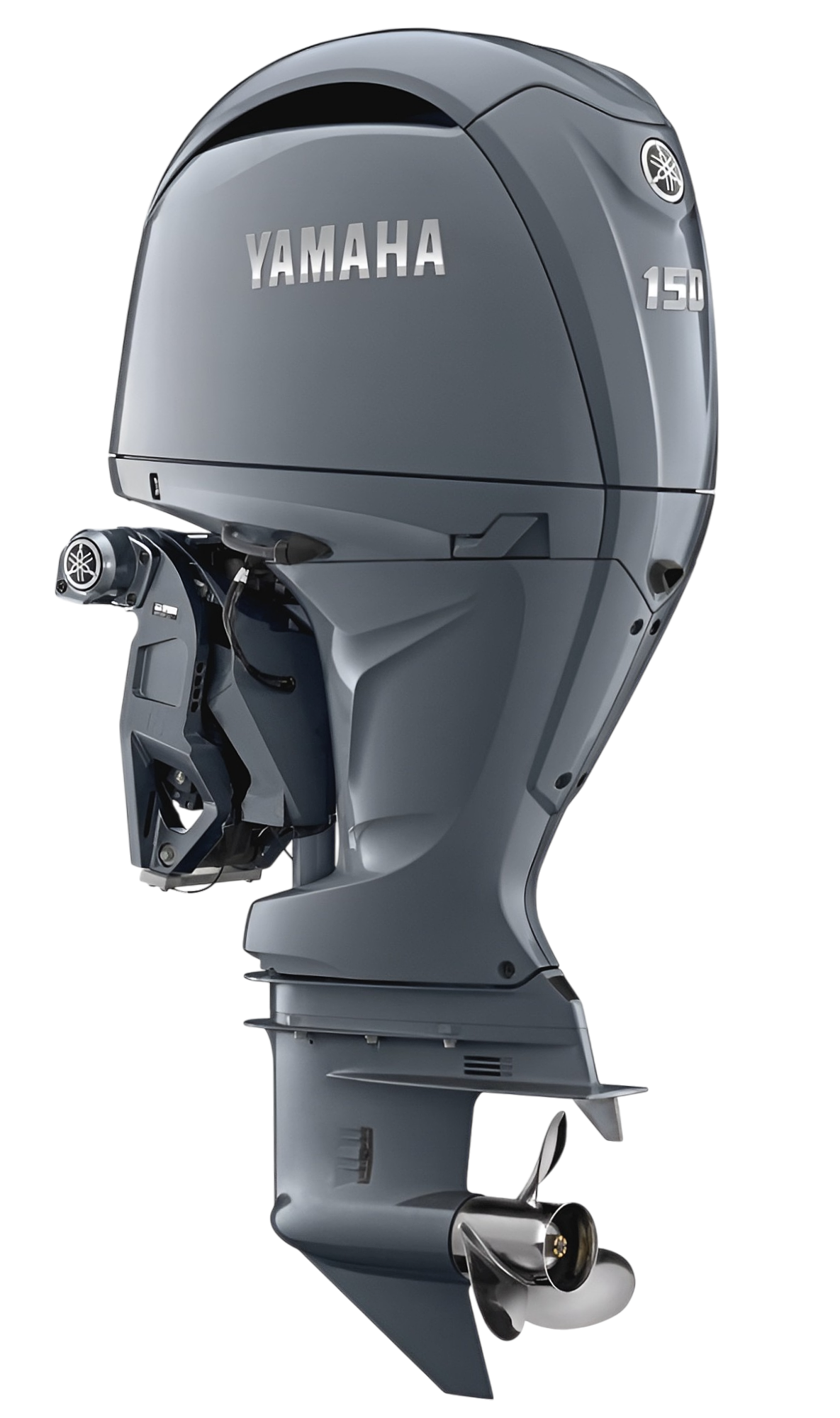

Yamaha 150hp Outboard
Yamaha 150hp Outboard
Fun four-cylinder excitement
MAKE AN ENQUIRY
This new unit offers fresh styling and modern design, aligning the aesthetics of the Premium and High Power segments. The design cues and graphics on this engine are all pointers to the exciting technology that lives just inside.
The 150hp engine benefits from enhanced connectivity for greater control and confidence, linking with Helm Master EX®, Yamaha’s latest CL5 gauge and the latest Drive-by-Wire throttles for smooth shifting, with single and multiple engine throttles available.
2025 YAMAHA F150LCC/XCC SPECIFICATIONS
Engine type: 4-stroke, DOHC, In-Line Four-Cylinder, 16-valves
Displacement: 2,785cc
No. of cylinders/configuration: 4 cylinder
Bore x stroke: 96.0 x 96.2
Prop shaft output at mid range: 150hp @ 5,500rpm
Full throttle operating range: 5,000 - 6,000rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: Electronic ignition (TCI)
Starter system: Electronic
Gear ratio: 26/14 1.86
Recommended boat transom height: L: 516mm X:643mm
Oil pan capacity: 4.5 L
Weight without propeller: 242kg - 244kg
Features
-
2,785cc 16-Big-Valve DOHC in-line 4-cylinder 4-stroke
With its innovative intake and exhaust valve design and twin camshafts, each driven independently the 150hp's intake and exhaust efficiency are dramatically improved, optimising fuel use during combustion.
-
Compact, lightweight design ideal for re-powering
The versatile 150hp is the leading power-to-weight performer in its class, making it the ideal choice for a wide range of activities and opening up exciting opportunities for re-powering.
-
Yamaha Customer Outboard Protection (Y-COP) option
The Y-COP immobiliser system is simple, easy to use and highly effective – a neat and simple remote control locks and unlocks the engine's ECM at the push of a button.
-
35 Amp High Output alternator
A special High Output alternator system is fitted as standard on the 150hp, to ensure that plenty of power is available for engine starts even after long periods at low RPM or when using multiple accessories.
-
All our EFI engines can be linked, via Yamaha's own network system.
A very relaxing and reliable system, which is standard on the 150hp. Simply set and hold the low speed rpm (between 600 & 1000) in 50 rpm steps, using a button on the tachometer.
-
Digital Network Gauges (optional)
All our EFI engines can be linked, via Yamaha's own network system, to a wide range of digital instruments - to help you get the best from your engine.
